  PA12V5A  ACTIVE

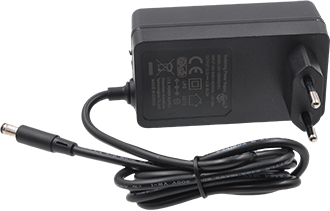

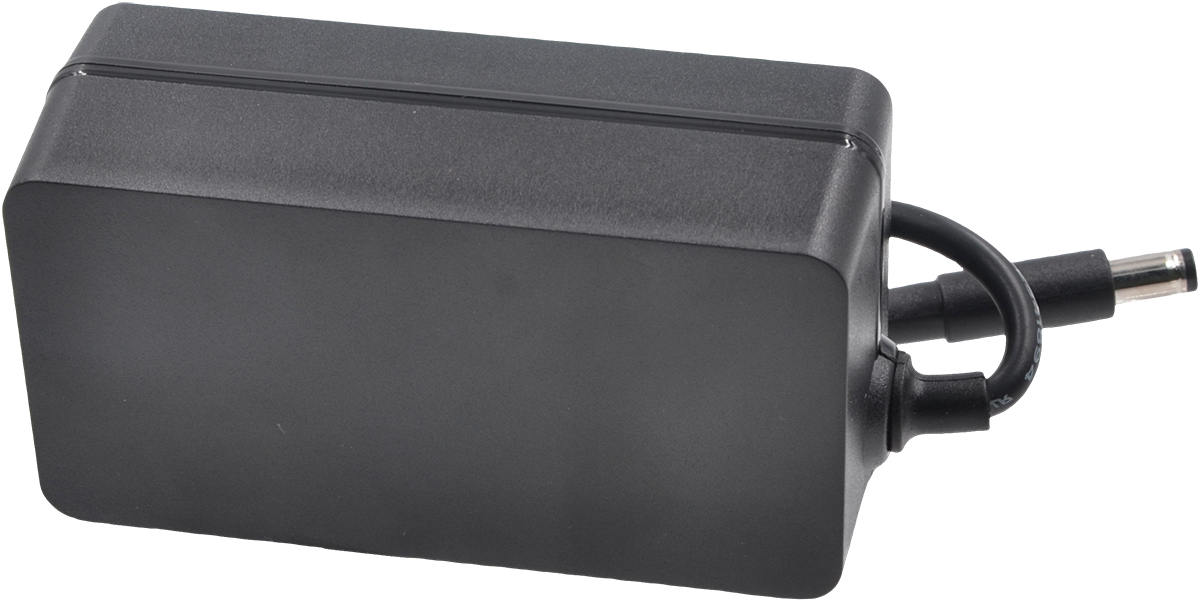

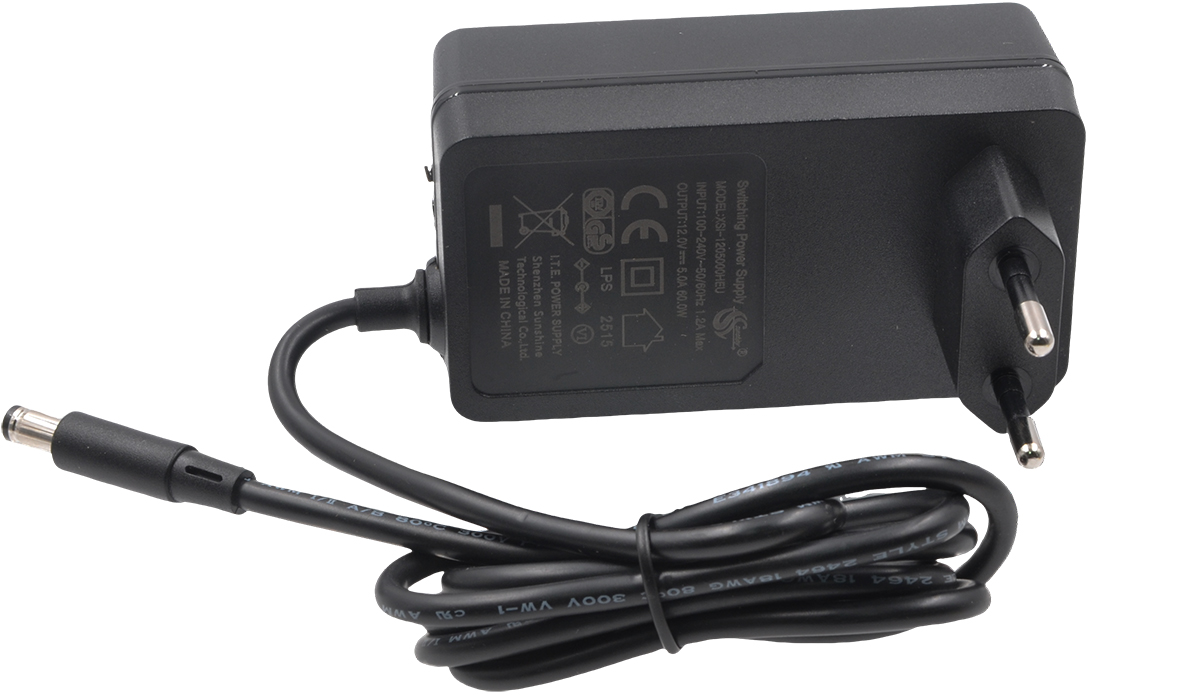

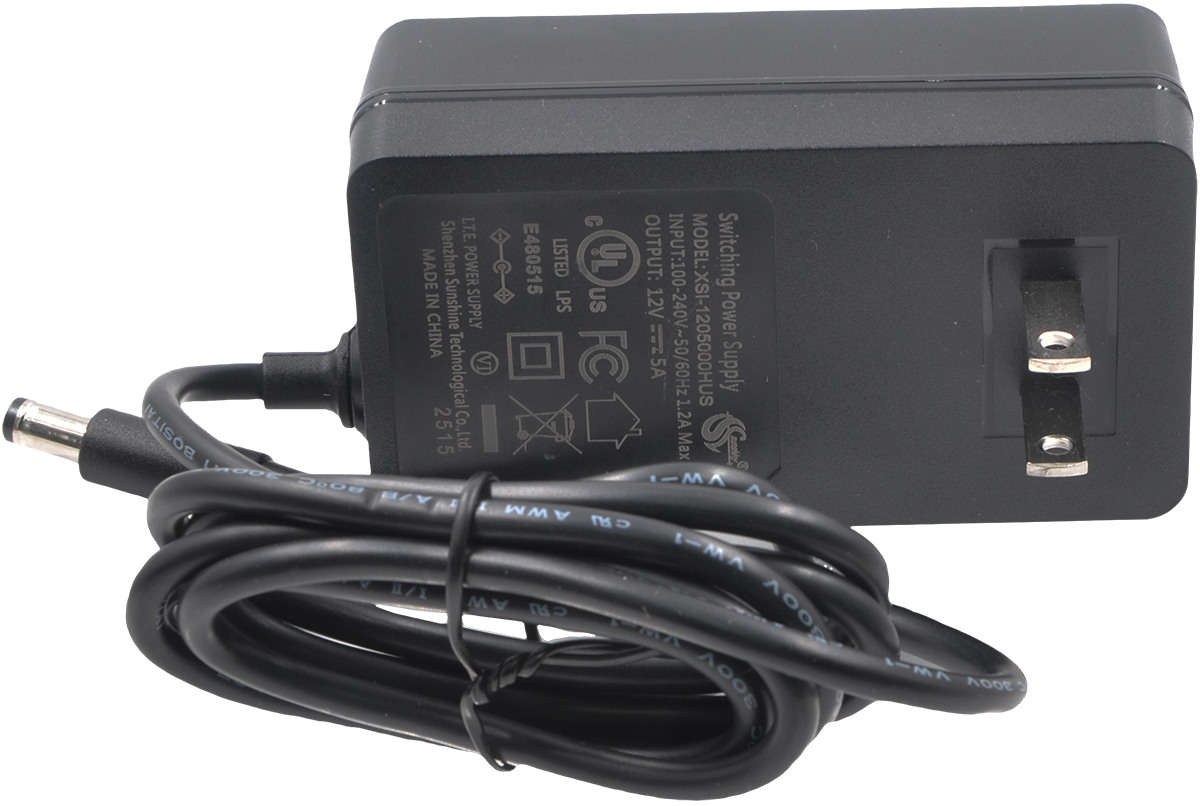

       Product Overview



The 12V 5A 60W Power Supply delivers stable and efficient power, making it the perfect choice for the X15xx Series IO Board. Designed to support high-power peripherals such as hard drives and SSDs, this power supply ensures consistent performance for your demanding applications.

Compatible Products:
X1502 - CM5 IO board

X1503 - CM5 IO board

X1505 - CM5 IO board

X1008 - PCIe3.0 to SATA 2.5+3.5 HDD board for Raspberry Pi 5

X1009 - PCIe3.0 to 5 SATA board for Raspberry Pi 5

X1016 - PCIe3.0 to 4 M.2 NVMe board for Raspberry Pi 5

X1202 - 4-cell 18650 UPS board for Raspberry Pi 5

X1203 - UPS board for Raspberry Pi 5

X1205 - 2-cell 21700 UPS board for Raspberry Pi 5

X1206 - 4-cell 21700 UPS board for Raspberry Pi 5


Whether you're upgrading your setup or need a dependable power solution, this 60W adapter provides the reliability you need.



       Technical Specification


Input voltage:   100 – 240Vac
Input AC frequency:   50-60Hz
Output voltage:   12Vdc ± 5%
Output current:   5A
Output power:   60W
Connector:   Barrel connector, 5.5mm × 2.1mm × 11mm, Centre positive
Cable:   1.2m 17AWG, black
Plug types:   US/EU
