	Assembly instructions		X1500 V1.0		X1501 V1.0

Step 1 Protecting from ESD

Grounding protects the components from the static electricity that can be naturally present (electrostatic discharge, ESD).

	Notice: Risk of damage to the equipment due to electrostatic discharge. Always: Touch the working surface before touching electronics.
	Ideally: Use ESD protective equipment, such as ESD table mats and grounding cords.

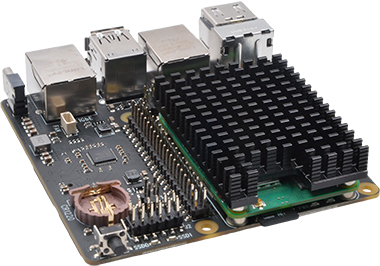

Step 2 CM5, Cooler and SSD install

	Install Compute Module 5 onto the Compute Module 5 IO board.
	Install the Raspberry Pi cooler onto the Compute Module 5.
	Install the M.2 NVMe SSDs on the underside of the IO board.

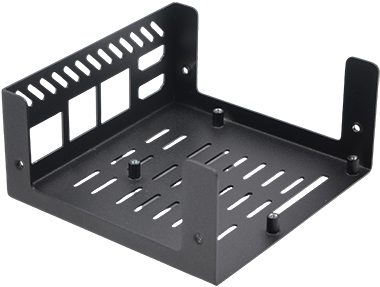

Step 3 Disassemble the case

	Separate the top of the Case from the base by unscrewing the M3 screws located on both side panels.

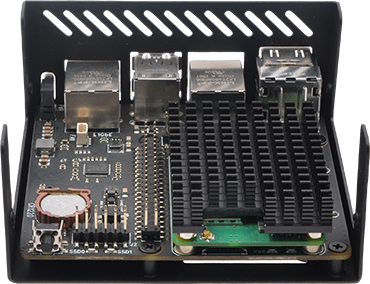

Step 4 Secure the IO baord

	Place the IO Board into the base of the Case.
	Align the four mounting holes.
	Secure the IO board to the base with four M2.5x5mm screws.

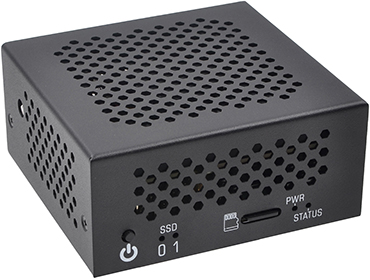

Step 5 Assemble the case

	Place the top of the case over the base and secure with four M3 × 4 screws.
