	X15-C2 V1.0		ACTIVE			Assembly

Product Overview

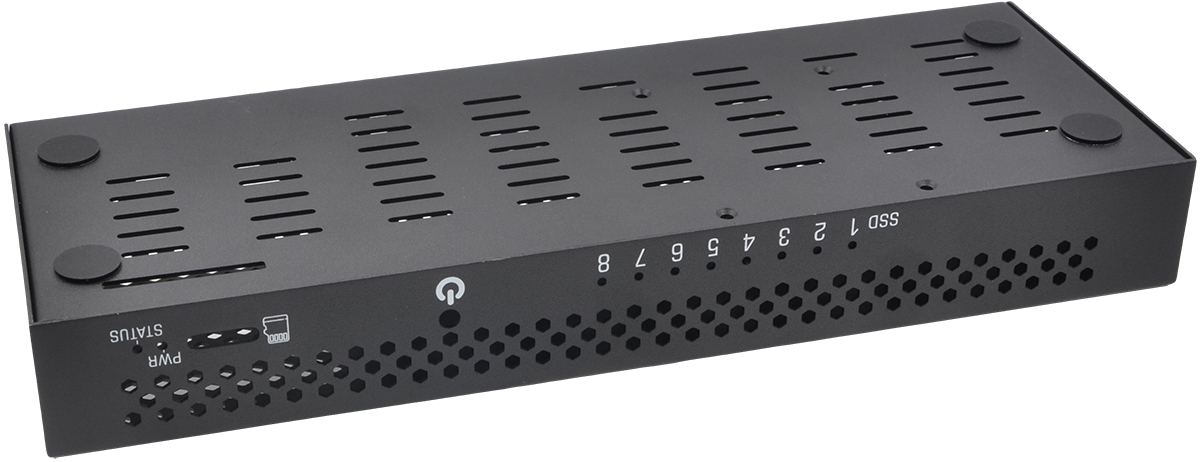

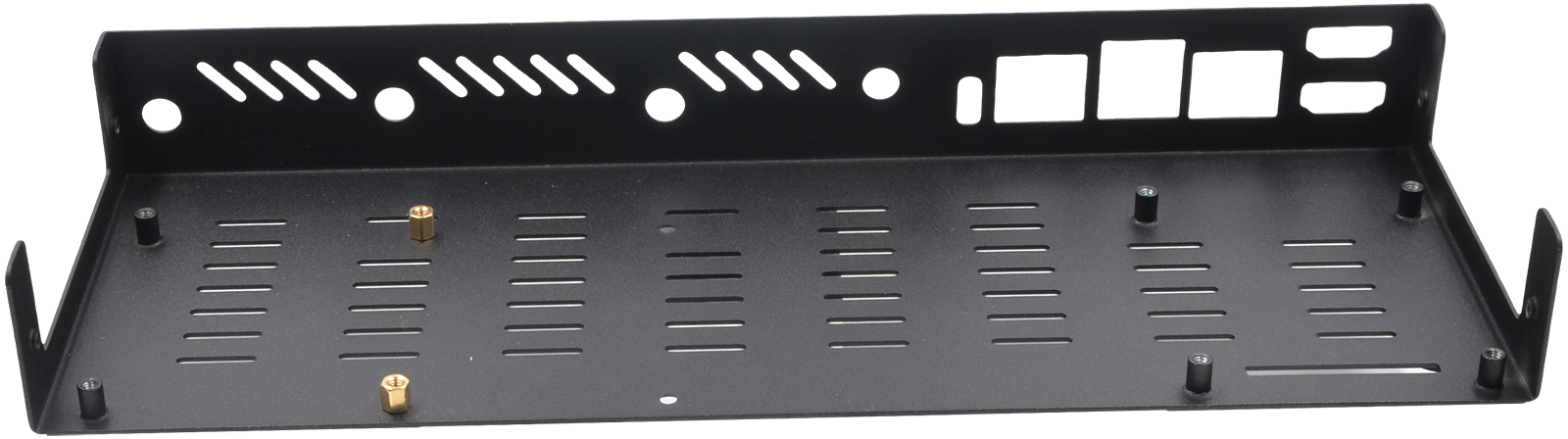

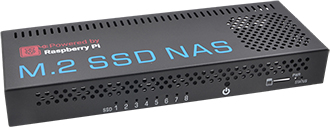

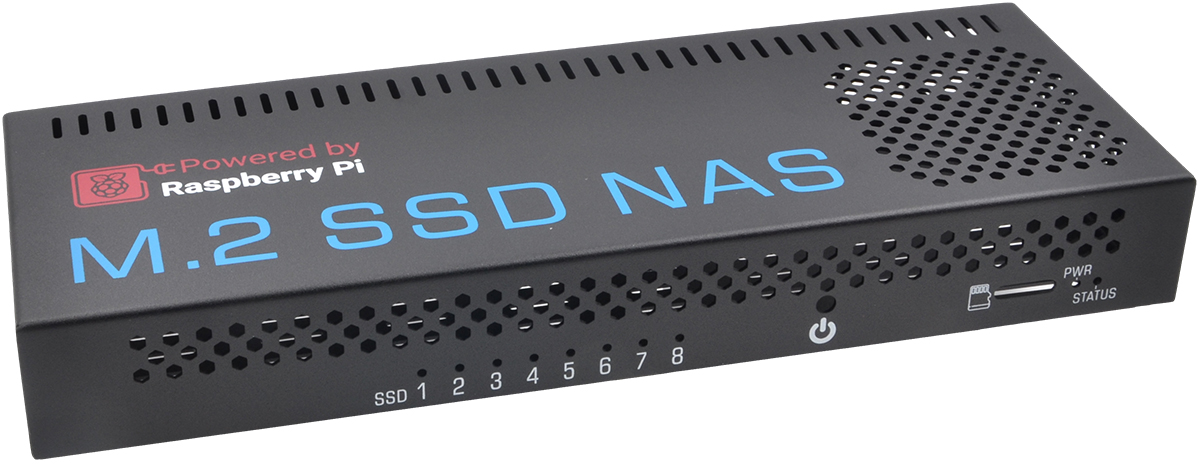

The X15-C2 is a robust two-piece metal enclosure designed to house the Compute Module 5 and X1502/X1503/X1505 IO boards. Engineered for durability and performance, it combines precision design with advanced thermal management for reliable operation. Ideal for industrial, embedded, and high-performance computing applications, the X15-C2 delivers a perfect balance of protection, cooling, and accessibility.

Product Features

ü	Form factor: 253mm x 91mm x 33mm
ü	Precision cut-outs & clear labeling: Ensures easy access to ports and components with intuitive identification.
ü	Optimized thermal performance: Strategically designed airflow vents for excellent heat dissipation.

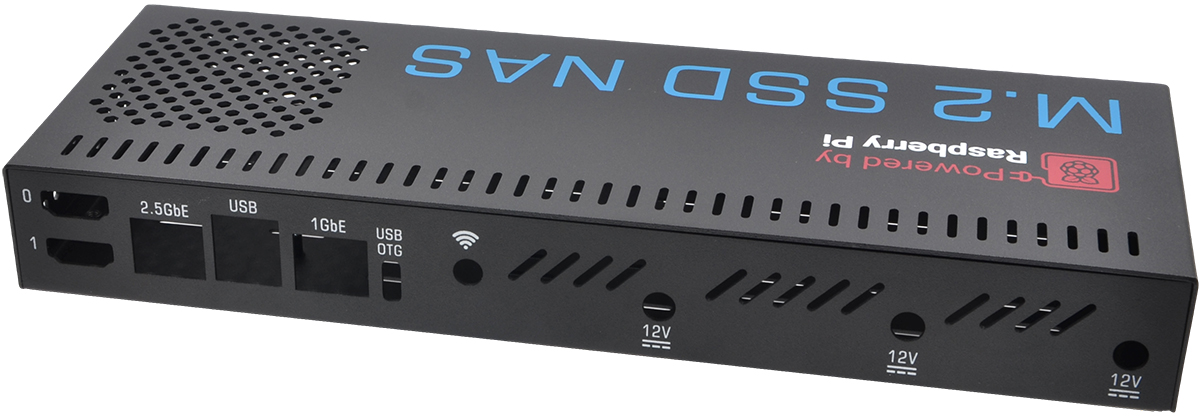

ü	Comprehensive port access: Side cut-outs provide unobstructed access to HDMI, Ethernet, USB-A, USB-C (power input), and the SD card slot.
ü	Expandable connectivity: Features a bottom slot for seamless integration of CSI-2 cameras or DSI displays.
ü	Wireless antenna support: Includes a dedicated mounting hole for an external antenna.

Technical Specification

Form factor:		253mm x 91mm x 33mm
Weight:		Approx 490g
Product material:		Sheet metal

Package Contents

	Metal case Kit
	- X15-C2 Metal case x1
	- Spacer & screw pack x1
