	X15-POE1 V1.1		ACTIVE			hardware

Product Overview

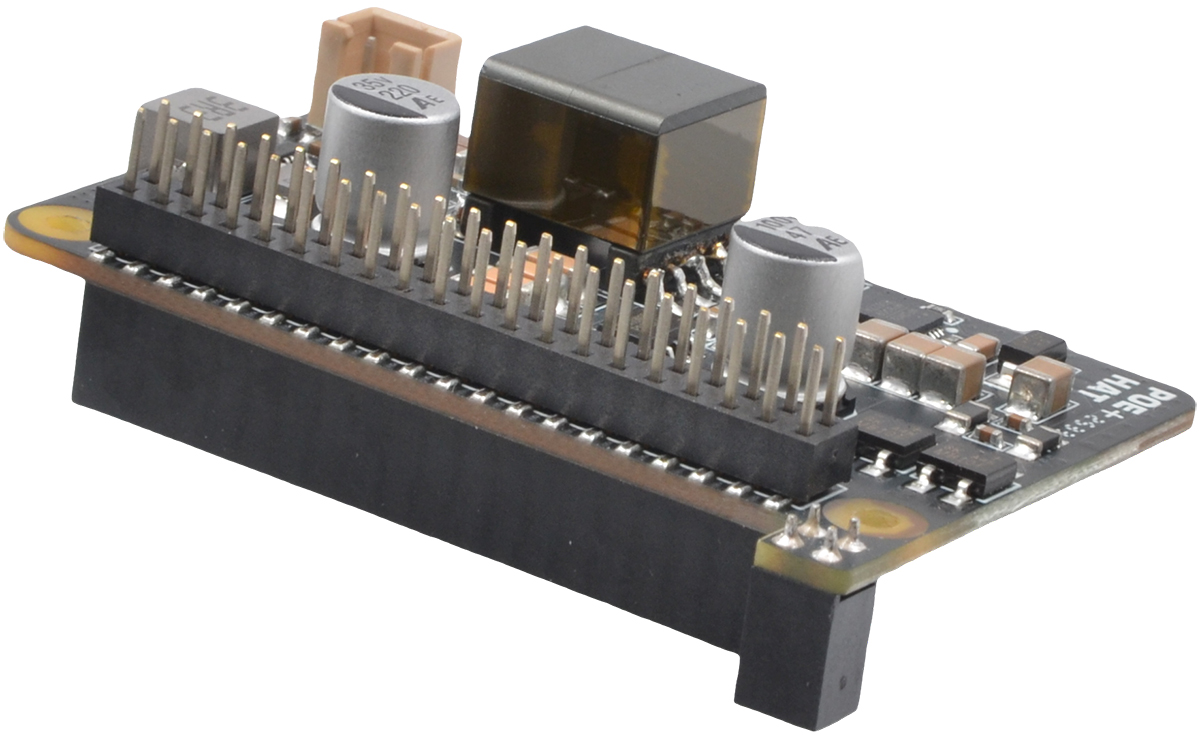

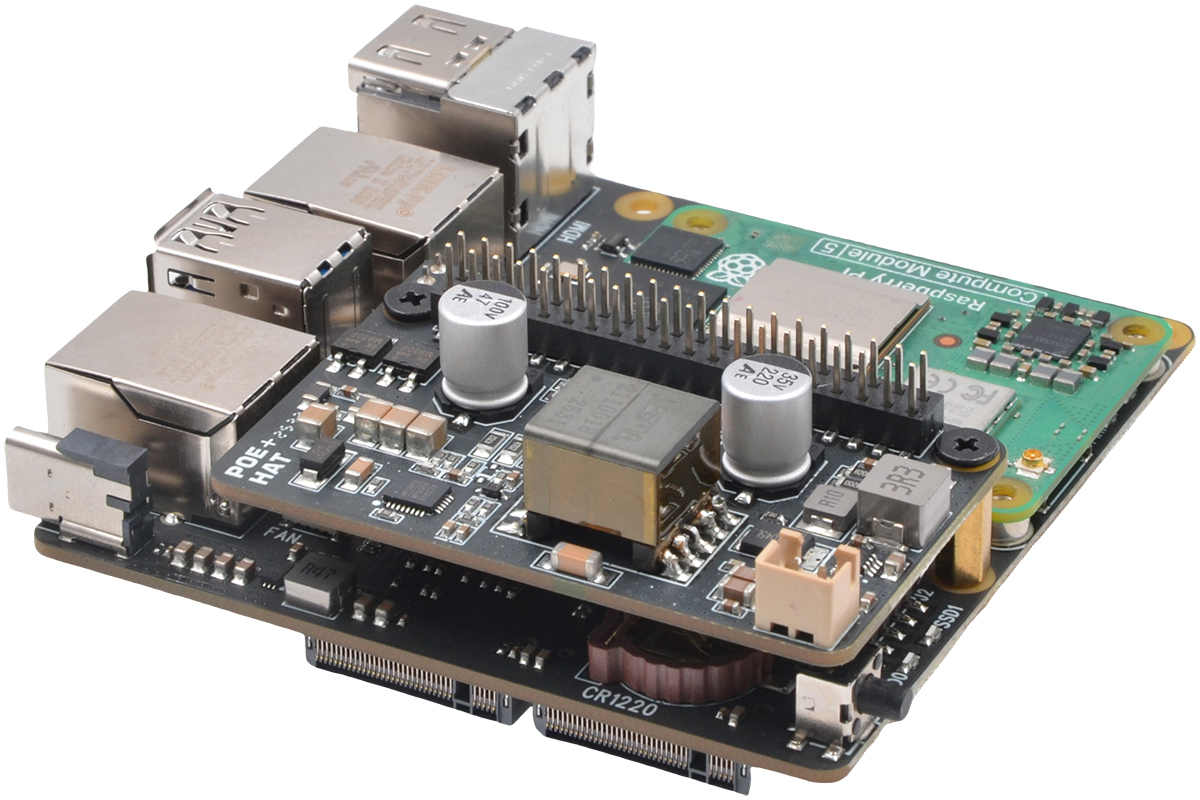

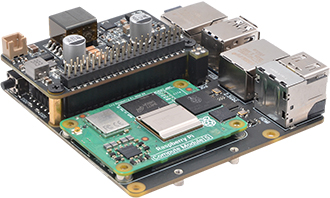

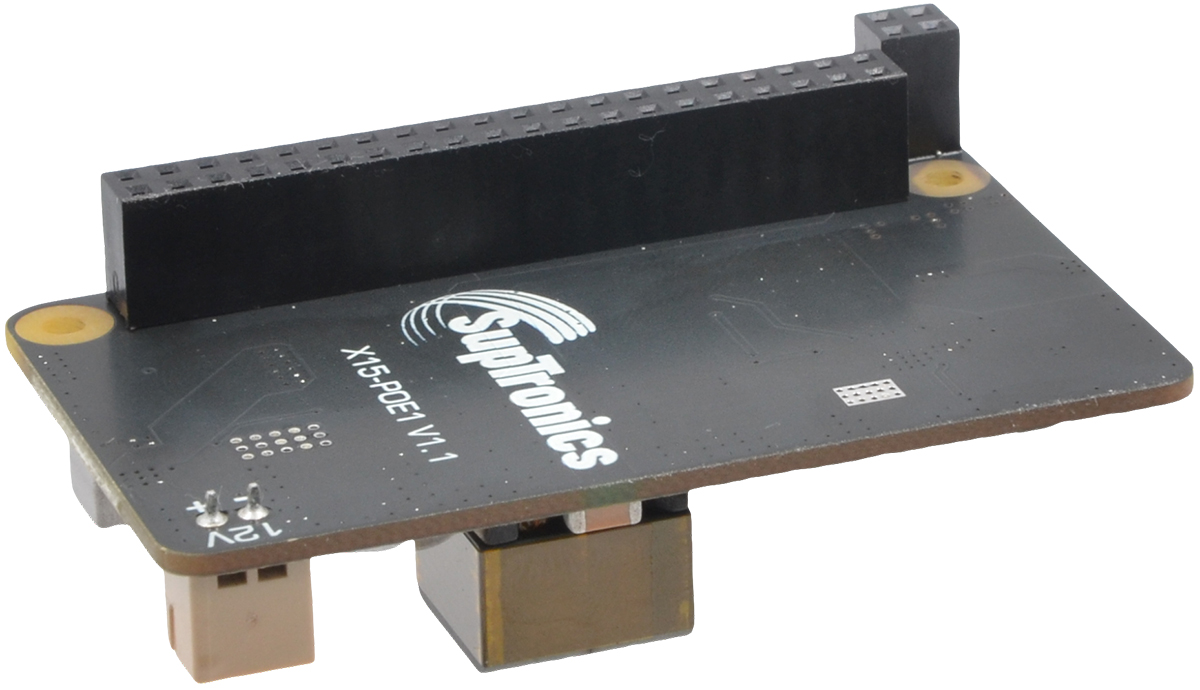

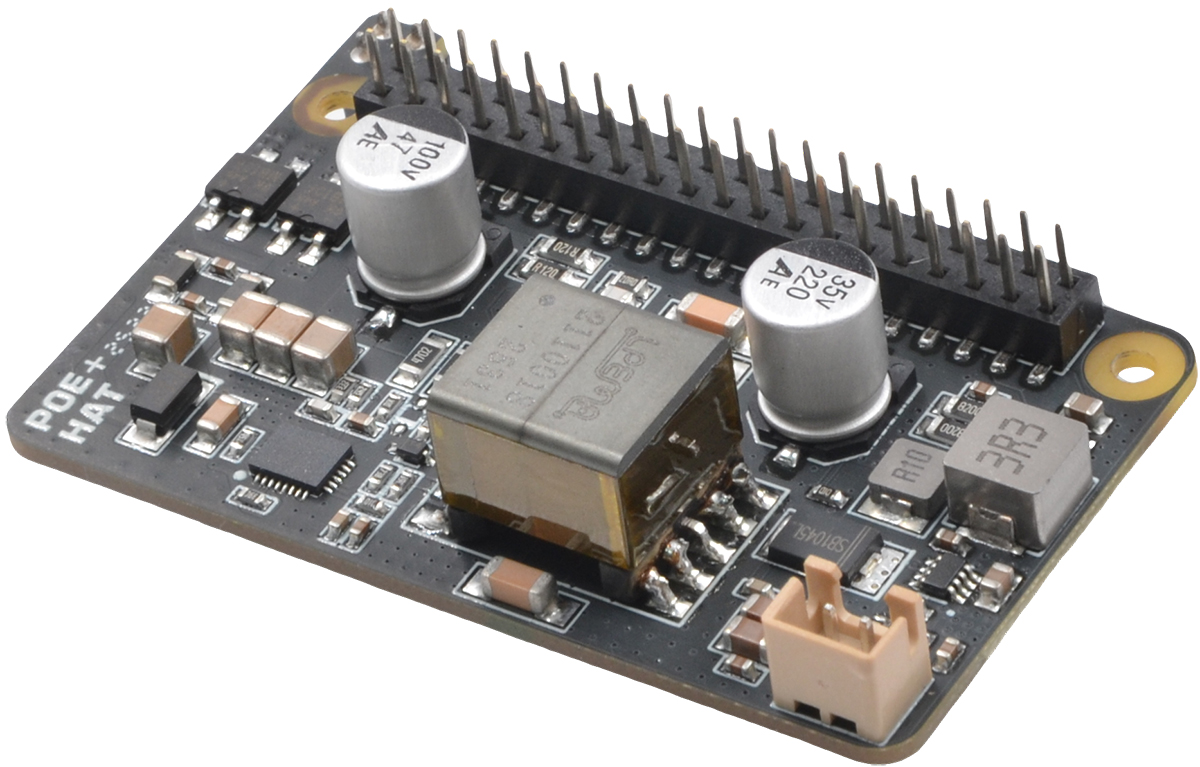

The X15-POE1 is a dedicated Power over Ethernet (PoE) add-on board (HAT) designed for the Raspberry Pi Compute Module 5 (CM5) when used with the X1500 or X1501 IO Boards. Compliant with the IEEE 802.3af/at PoE standards, this HAT can receive up to 25W of power from a compatible PoE network switch. It delivers both reliable operating power and network connectivity to the CM5 through a single Cat5e/Cat6 cable.

Featuring an advanced dual-output design, the board supplies 5V power to the CM5 while also providing a separate 12V output to support peripherals such as fans, displays, or motors. This eliminates the need for an additional external power supply, simplifying system integration and reducing clutter.

Product Features

ü	Standard Compliance: IEEE 802.3af & 802.3at (PoE+)
ü	Input Voltage Range: 36 - 57V DC
ü	Device Classification: Class 4
ü	Provides two independently regulated power rails:
		5V DC / 5A (25W max) delivered via the 40-pin GPIO header.
		12V DC / 2.1A (25W max) delivered via a dedicated 2-pin XH2.54 connector.
		Total maximum combined output is 25W (subject to input power limits).
ü	Fully isolated switched-mode power supply (SMPS) topology.
ü	Simplified single-cable installation and robust power delivery for peripherals.

Technical Specification

Power supply	:	36-57VDC powering over Ethernet
Power output	:	5.1V 2.5A / 12V 1.1A @ IEEE 802.3af
		5.1V 5.0A / 12V 2.1A @ IEEE 802.3at
Ports & Connectors	:	2x2pin POE female header x1
		2x20pin GPIO extended female header x1
		2-pin XH2.54 12V output connector x1
Dimensions:		65×43.2×22.1mm (L×W×H)

Package Contents

	X15-POE1 Kit
	- X15-POE1 board x1
	- screw pack x1
