  PA12V10A  ACTIVE


       Product Overview

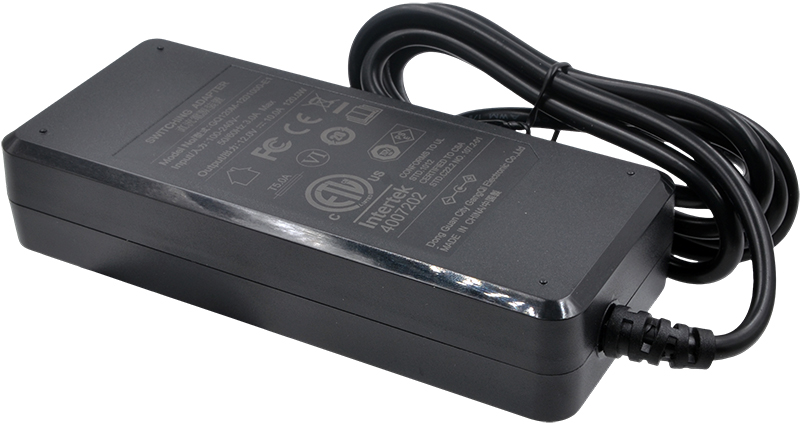

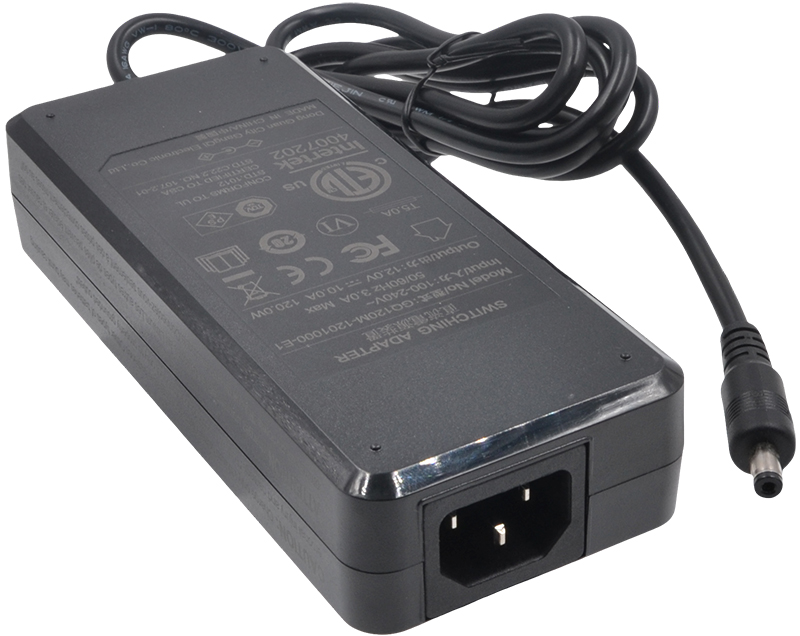

The 120W Industrial Power Supply (12V/10A) is the dedicated power source for compatible X-Series hardware (X-NAS, X15xx I/O, X12xx UPS). It provides regulated, high-current output to ensure stable operation of connected peripherals and system components in demanding application environments.

Compatible Products:

X-NAS1 - Network Attached Storage Devices

X1001-Max - PCIe3.0 M.2 HAT for RPi5
X1502 - CM5 IO board

X1503 - CM5 IO board

X1505 - CM5 IO board

X1008 - PCIe3.0 to SATA 2.5+3.5 HDD board for Raspberry Pi 5

X1009 - PCIe3.0 to 5 SATA board for Raspberry Pi 5

X1016 - PCIe3.0 to 4 M.2 NVMe board for Raspberry Pi 5

X1202 - 4-cell 18650 UPS board for Raspberry Pi 5

X1203 - UPS board for Raspberry Pi 5

X1205 - 2-cell 21700 UPS board for Raspberry Pi 5

X1206 V2.0 - 4-cell 21700 UPS board for Raspberry Pi 5 (not compatible with X1206 V1.0)


Whether you're upgrading your setup or need a dependable power solution, this 120W adapter provides the reliability you need.



       Technical Specification


Input voltage:   100 – 240Vac
Input AC frequency:   50-60Hz
Output voltage:   12Vdc ± 5%
Output current:   10A
Output power:   120W
Connector:   Barrel connector, 5.5mm × 2.1mm × 11mm, Centre positive
Cable:   1.5m 16AWG, black
Plug types:   IEC320/C14 ac inlet
Case size:   L:153.5*W:66.2*H:32.4mm
