    Hardware Installation X5000


❶ Required tool (Optional accessories)
  Screw diver 1 pc

❷ Required Accessories
  Screw M2.5 x 6mm 8 pcs
  Spacer M2.5 x 20mm 4 pcs
  HDMI bridge 1 pc

❸ Push a screws (M2.5*6mm) up through the mounting hole on the underside of the Raspberry Pi.

❹  Screw the spacer (M2.5*20mm) down until it is hand tight

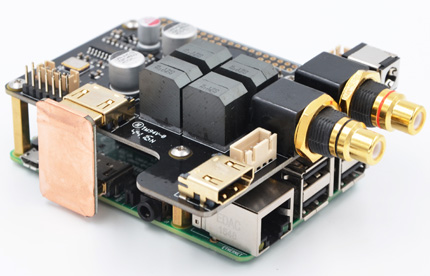

❺ Plugs the X5000 board straight into your Raspberry Pi B+'s GPIO header and insert the HDMI bridge.
