  XUPS2 V1.2  ACTIVE hardware   software

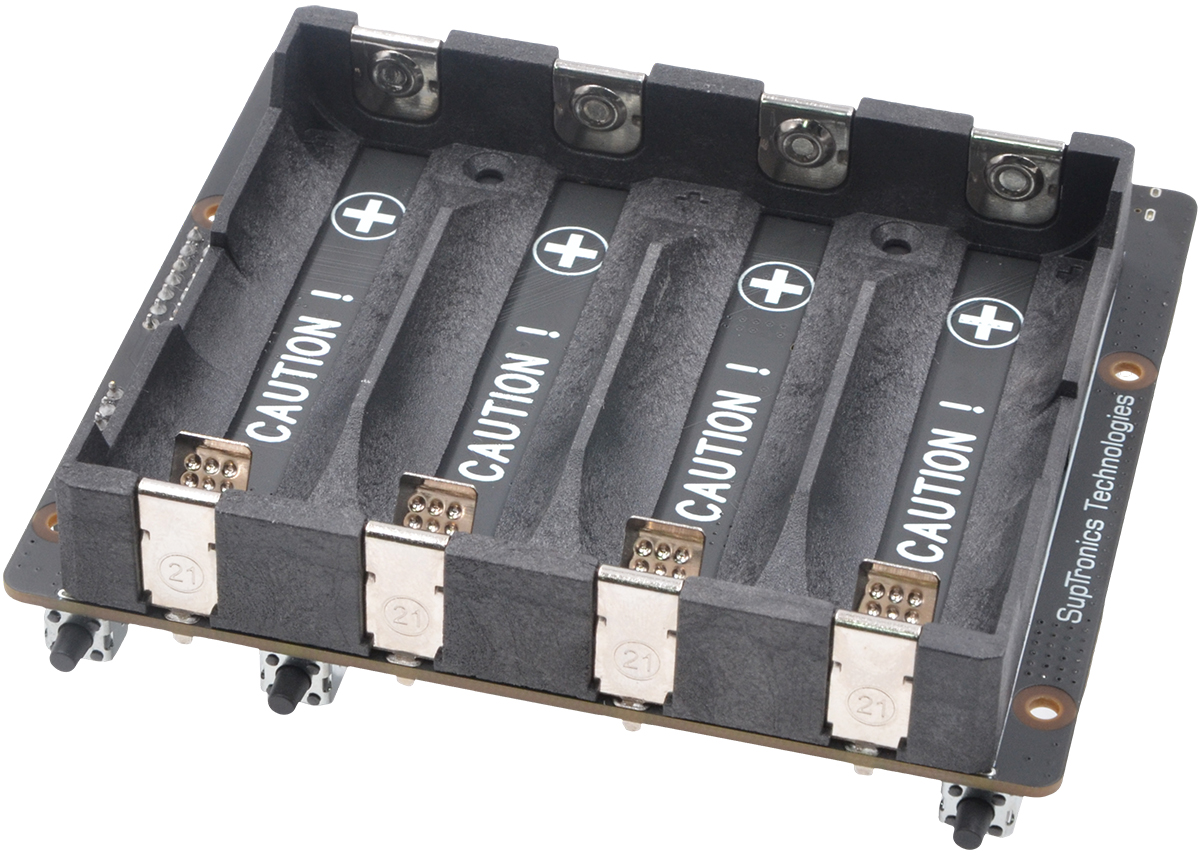

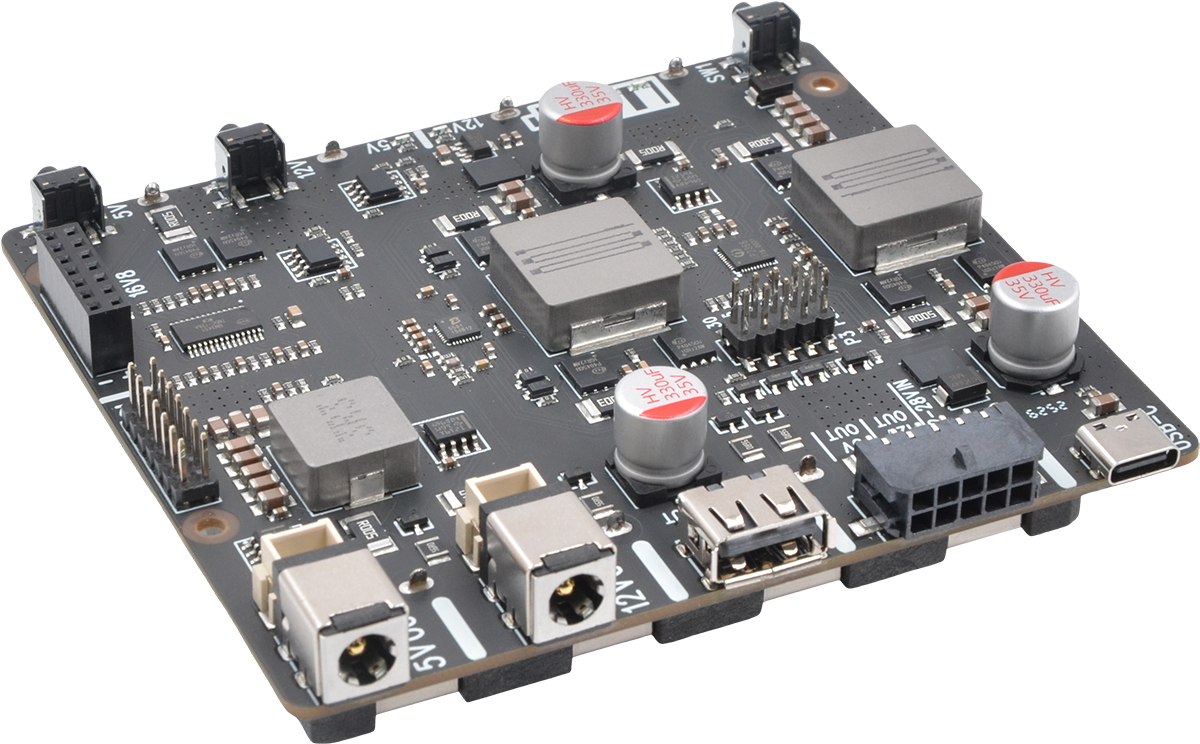

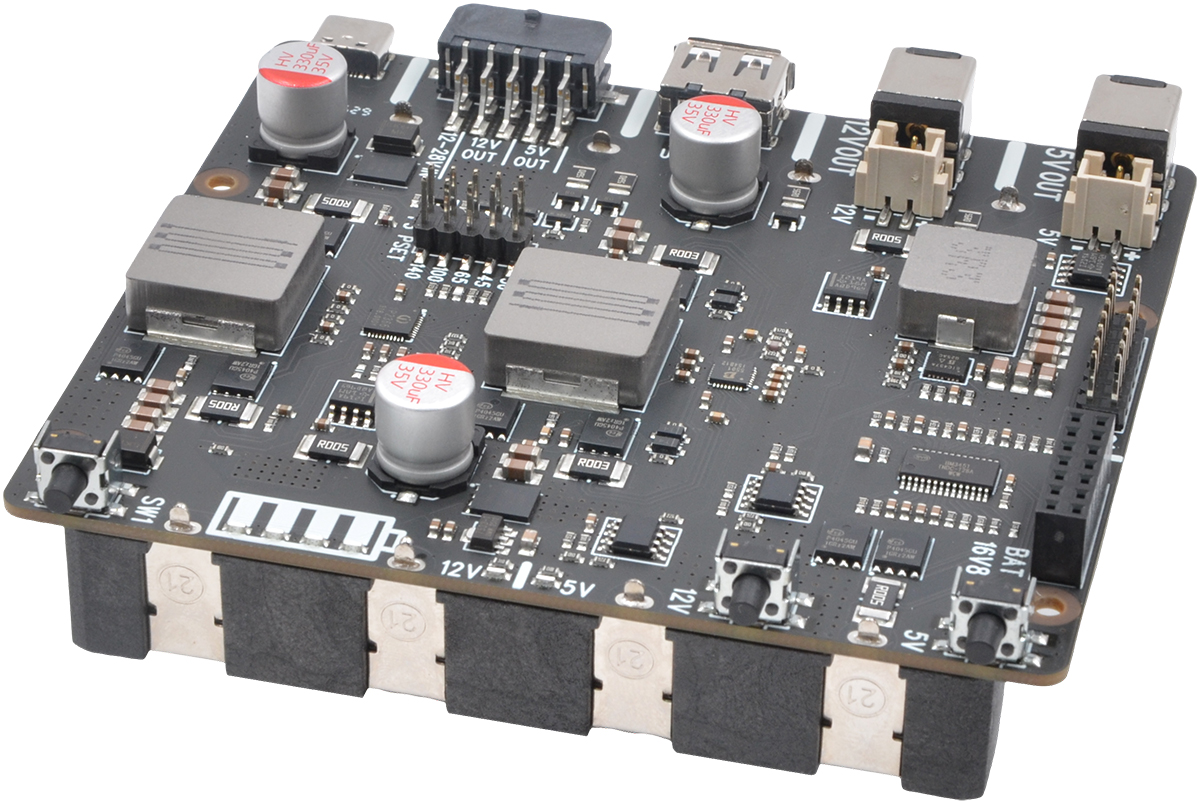

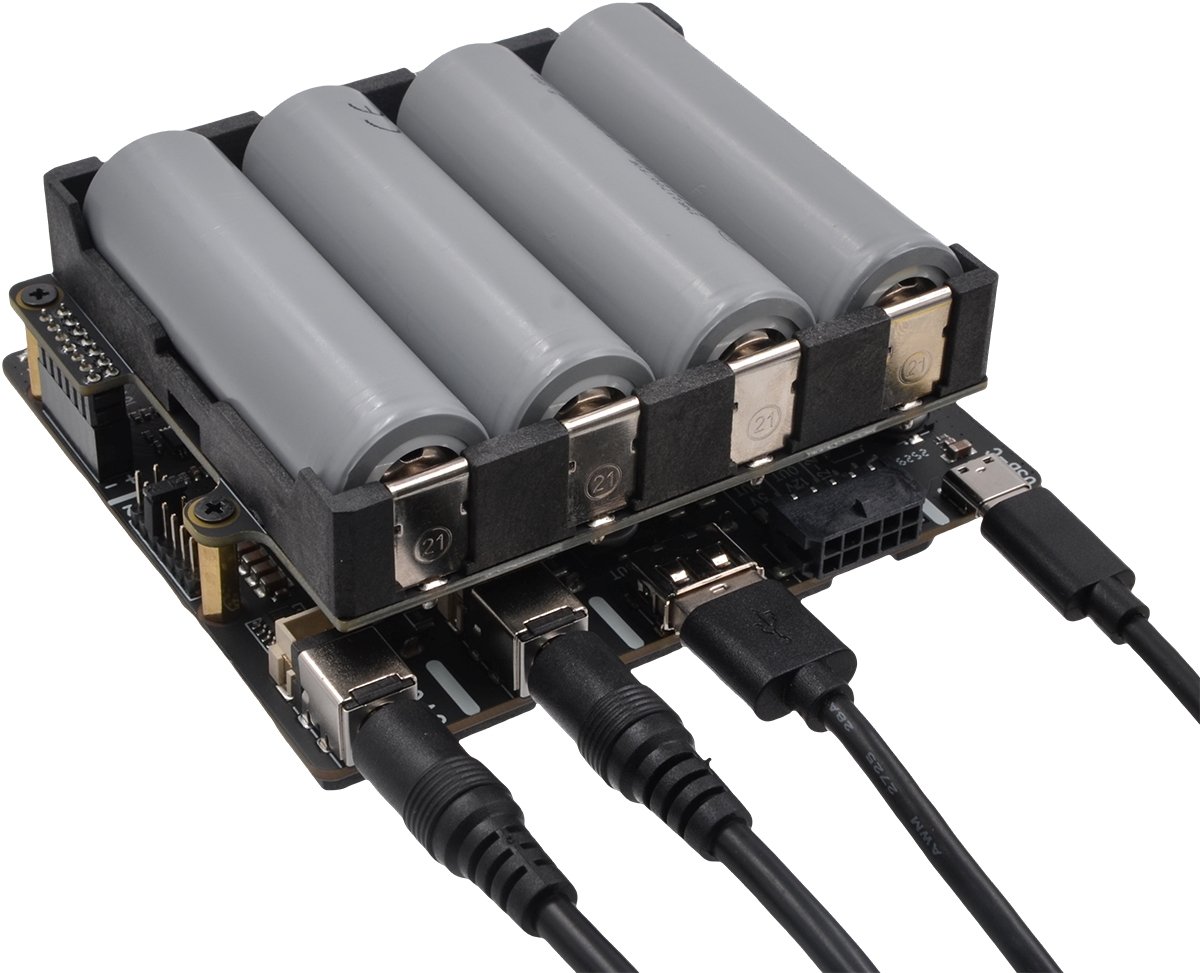

  XUPS2 4x21700 Serial UPS board

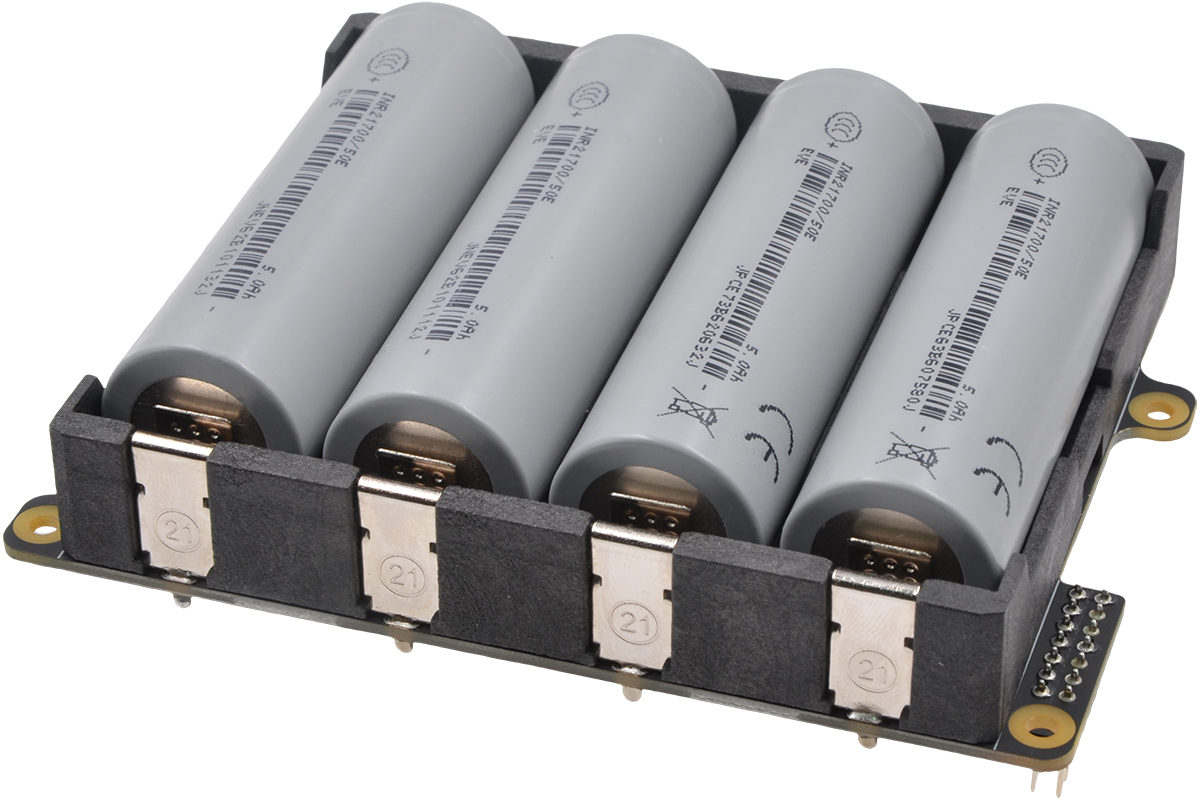

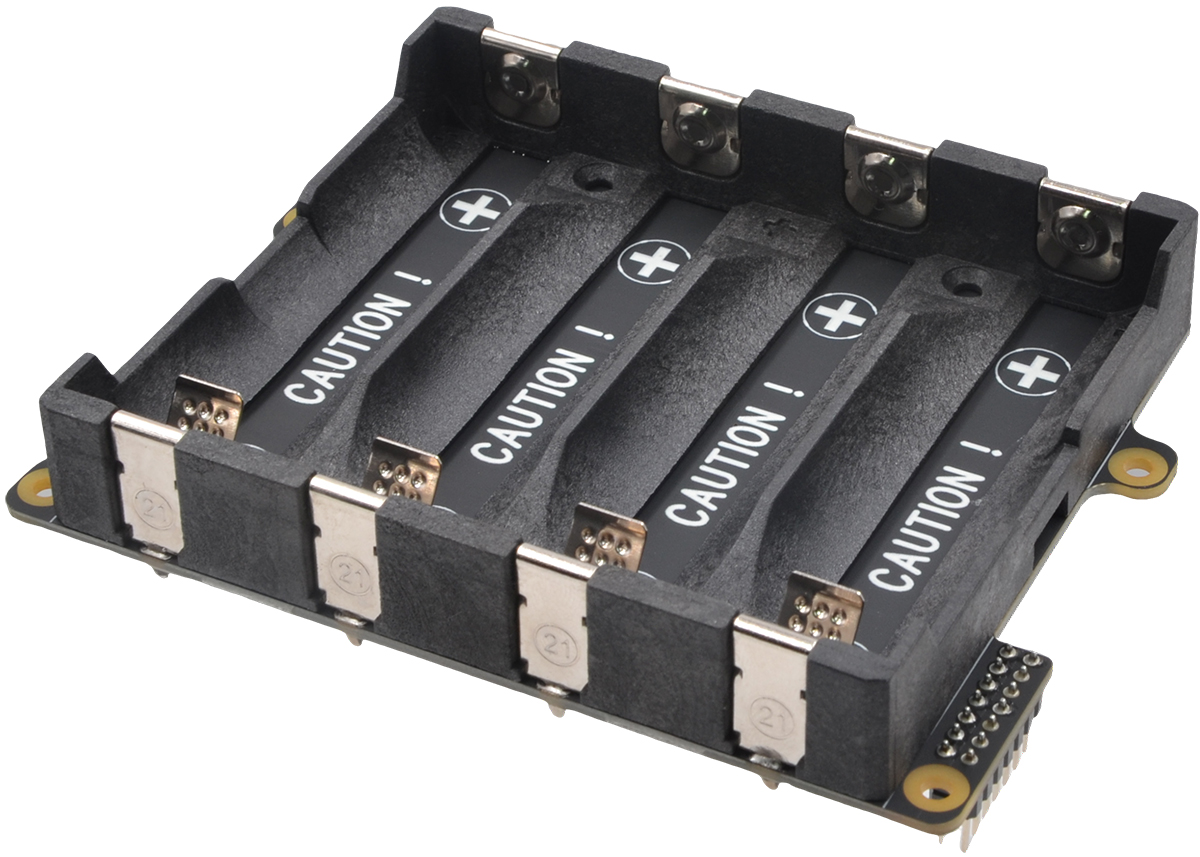

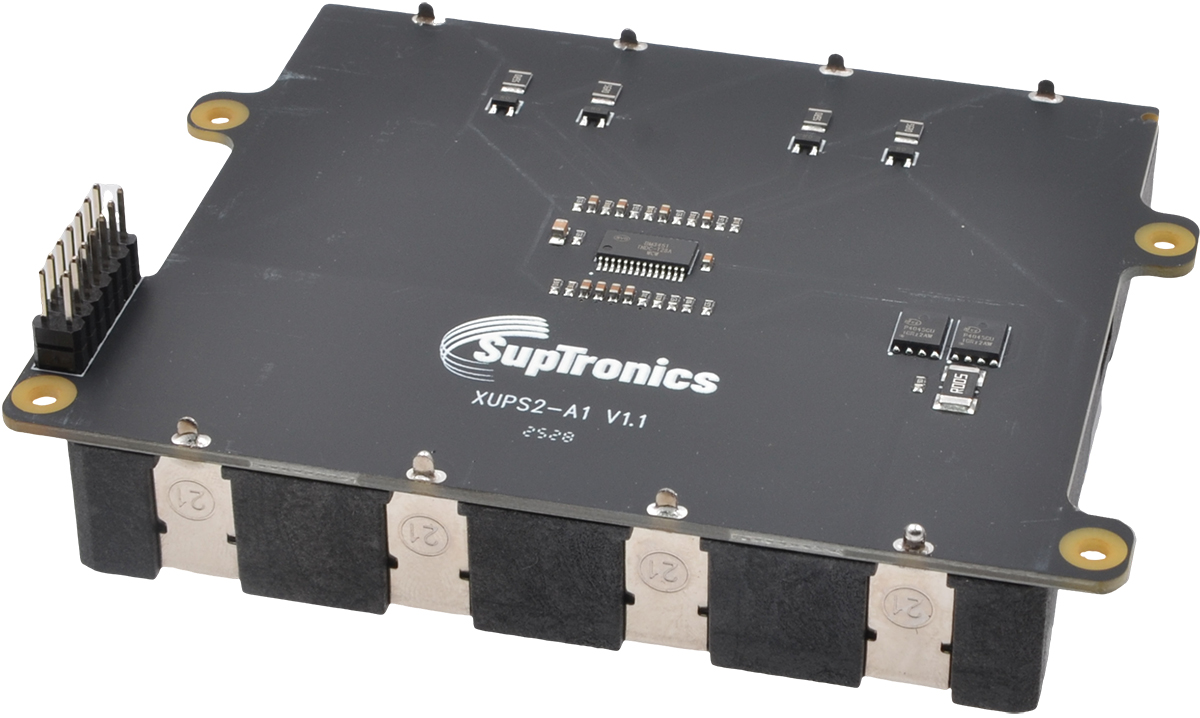

XUPS2-A1 4x21700 Serial stackable battery holder

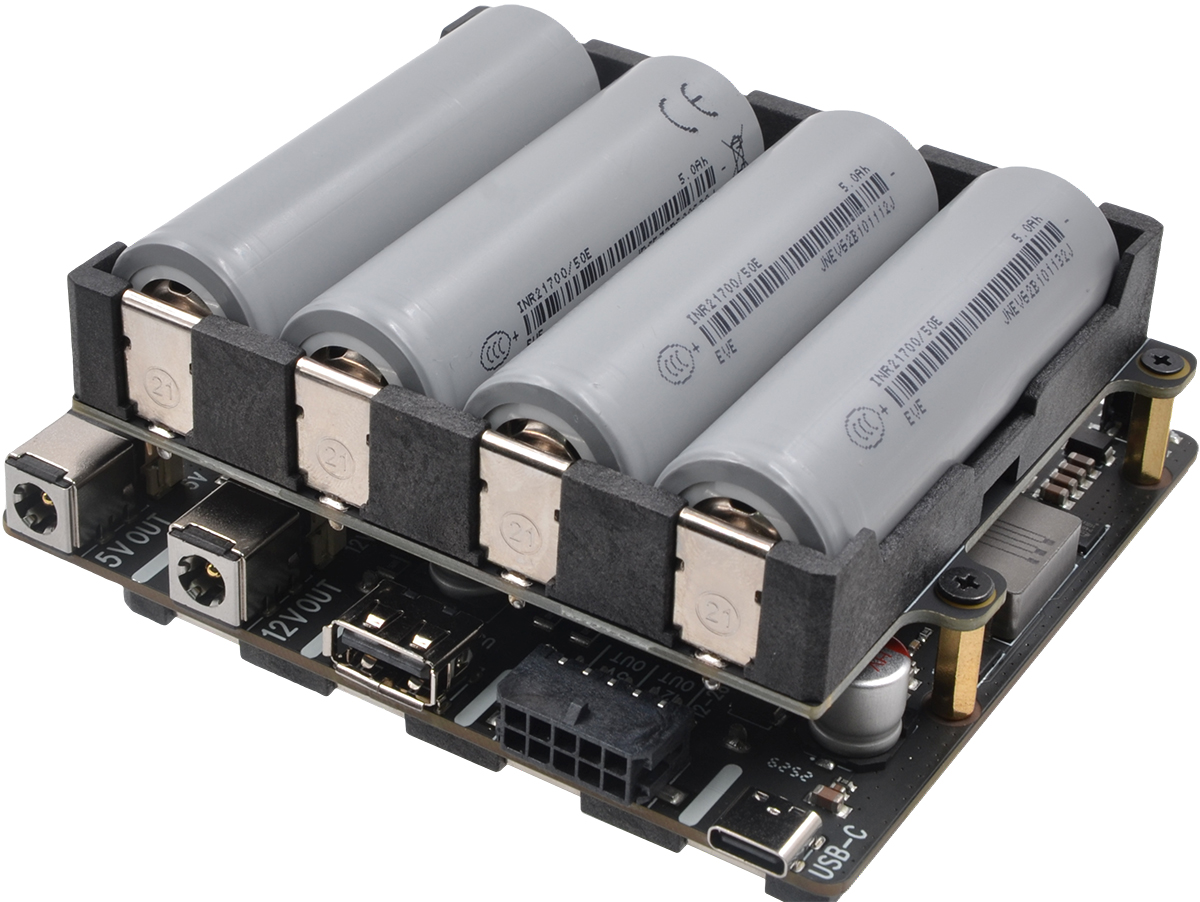

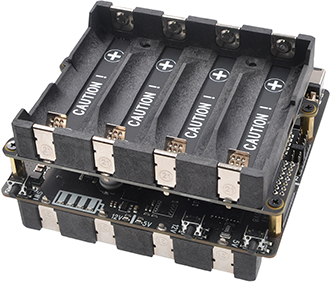

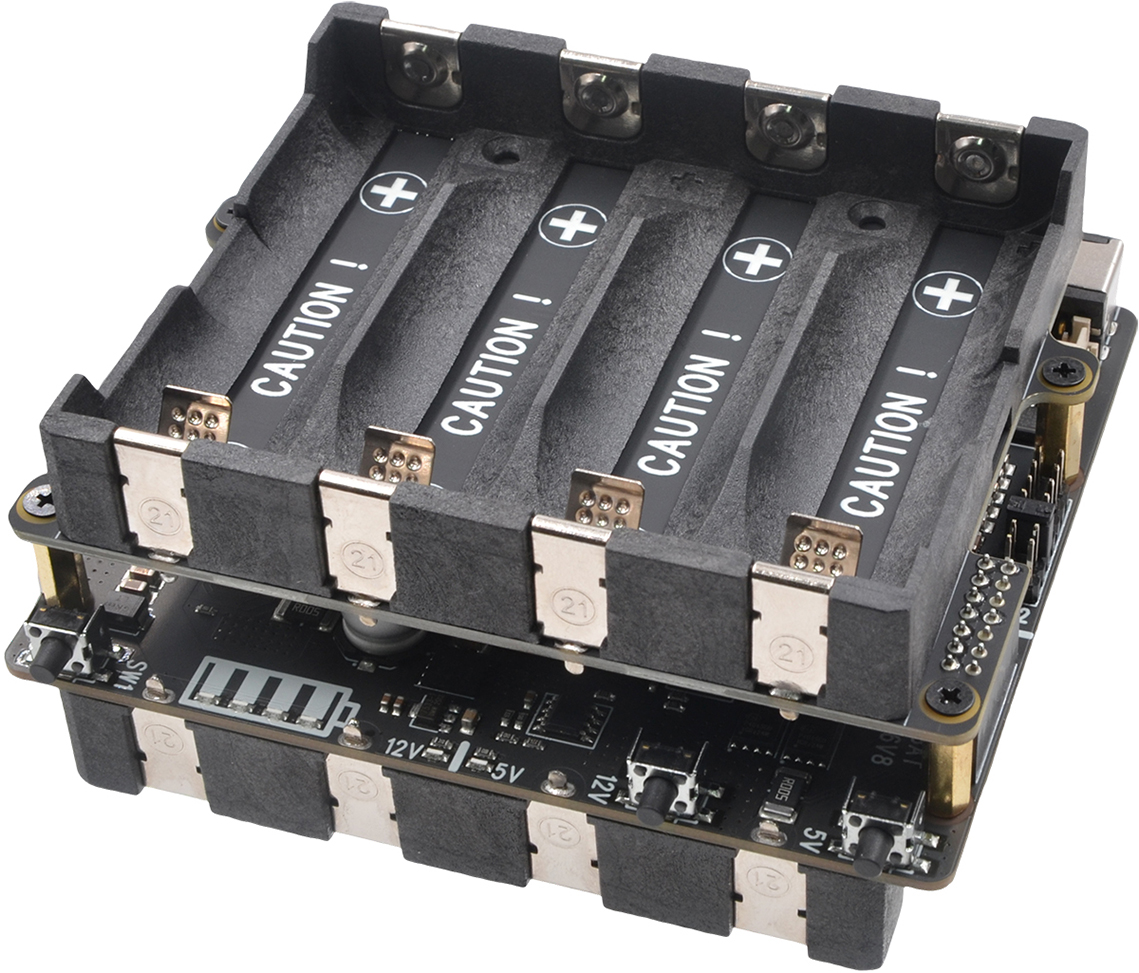

  XUPS2 + XUPS2-A1 combination 2P4S


       Product Overview



140W PD 3.1 Power Bank & UPS: Dual Output (12V/10A, 5V/12A) for All SBC Devices.



The XUPS2 is an integrated UPS and PD3.1 power bank solution designed for single-board computers (such as Raspberry Pi and NVIDIA Jetson), network switches, and industrial or utility applications requiring emergency backup power and power conditioning. It delivers reliable backup power with outputs of 12V/10A, 5V/12A, or a combined total of 120W, ensuring uninterrupted operation even under high-demand setups or when multiple peripherals are connected.

Equipped with an advanced power management system, the XUPS2 intelligently monitors charging voltage and current, as well as UPS output voltage and current via I2C communication. It automatically cuts off power after the host system shuts down to optimize battery life, featuring ultra-low standby power consumption. The board also provides seamless transition between power sources during outages or adapter failures, and supports convenient functions such as auto power-on and AC power loss detection.

Additionally, the XUPS2 supports fast charging at up to 5000mA for rapid battery replenishment. It integrates seamlessly with compatible NVIDIA Jetson platforms for robotics and edge AI applications, as well as with storage systems and industrial controls, ensuring reliable performance during power loss or battery-powered operation. The XUPS2 is an ideal component to enhance system reliability, protect critical data, and maintain continuous operation in a wide range of setups.



       Product Features



**UPS Output:**
- Designed for continuous long-duration operation (duration depends on battery type and load)
- Provides up to 120W backup power with 12V/10A, 5V/12A, or combined output
- Integrated I2C power monitor for real-time output voltage and current reading
- USB-A socket and high-current DC jack for flexible power delivery
- MX3.0 power input/output connector for simplified integration

**Battery Management:**
- Programmable battery charging current from 1.5A to 5A
- Battery charging control via GPIO
- Protections against battery overcurrent and overvoltage
- Integrated I2C monitor for battery voltage and charging current
- On-board LEDs indicating battery charging/discharging levels (25%, 50%, 75%, 100%)
- Features a 4-cell 21700 battery holder, supporting up to 20,000mAh with four 21700 batteries

- Optional stackable battery holder adds four more 21700 cells, supporting up to 40,000mAh



**PD Power Bank:**

- Supports programmble charging power 30W/45W/65W/100W/140W
- Support PD3.0 and other fast charge input protocol
- USB-C charging support power-in and power-out
- Compatible with any PD 3.0 devices
- LED indicators show battery and charge status

**Power Input:**
- Supports USB-C PD chargers (5V/9V/12V/15V/20V/28V)
- Wide operating input range: 12V to 28V via MX3.0 power I/O connector
- Compatible with various power sources including car and solar panel inputs

**Advanced Power Management:**
- Seamless switching between backup power and adapter supply
- On-board push buttons for battery level check and power on/off
- Voltage detection for automatic power output shutdown
- AC power loss and adapter failure detection via GPIO
- Auto power-on when power is applied or restored
- Ultra-low standby power consumption to extend battery life
- Advanced power-path management to reduce battery cycling

       Technical Specification


Power Supply : USB-C PD Charger 20V/2.25A(45W), 20V/3.25A(65W), 20V/5A(100W), 28V/5A(140W)


12-28V via MX3.0-2x5P
(Do not connect any device to the USB-C port while using the MX 3.0 socket for power input).

UPS Output : 12V ±5% via DC jack /MX3.0 socket, Max 10A
    5.1V ±5% via DC jack /MX3.0 socket, Max 10A
    5.1V ±5% via USB-A socket, Max 5A
    Total max. combined output is 120W (Subject to input power limits & battery type)

Power Bank : USB-C output (No E-mark cable detected): 5V/3A,9V/3A,12V/3A,15V/3A,20V/3A
    USB-C output (E-mark cable detected): 5V/3A,9V/3A,12V/3A,15V/3A,20V/5A,28V/5A
    Charge protocol: PD2.0/PD3.0/PD3.1, QC2.0/QC3.0/QC3+, FCP,AFC

Battery Charging : 4x21700 Serial connection
    Charge constant voltage: Typical 16.8V, Min.16.64V, Max.16.96V
    Charge current (Subject to max. input power setting -PMAX)

PMAX=30W, 1.3A-1.7A
PMAX=45W, 2.0-2.5A
PMAX=65W, 3.0-3.6A
PMAX=100W, 4.3-5.1A
PMAX=140W, 4.3-5.3A

The PMAX setting is adjusted using the onboard P3 header.

PCB form factor: : 108mm x 95mm

       Package Contents

  XUPS2 UPS & Power bank board Kit - Battery not included


-  XUPS2 V1.2 board x1
  -  DC power cable 5.5 x 2.5mm Male to 5.5 x 2.5mm Male 60cm x1
  -  DC power cable 5.5 x 2.5mm Male to 5.5 x 2.1mm Male 60cm x1
  -  Accessory board  for I²C and UPS control  x2
  -  Cable XH2.54 double head 9P x1

  XUPS2-A1 4x21700 Serial stackable battery holder
  - XUPS2-A1 board x1
  - Spacer F/F M2.5x14mm x4
  - M2.5x5mm screw x8

        Important Notes


- For first use, connect a USB-C PD charger to activate the UPS.
-  DISCLAIMER

This evaluation board/kit is intended for user's internal development and evaluation purposes only. It is not a finished product and may not comply with technical or legal requirements that are applicable to finished products, including, without limitation, directives or regulations relating to electromagnetic compatibility, recycling (WEEE), FCC, CE or UL. SupTronics is providing this evaluation board/kit“AS IS”with limited warranties. The user assumes all responsibility and liability for handling and use of the evaluation board/kit including, without limitation, the responsibility to take any and all appropriate precautions with regard to electrostatic discharge and other technical issues. User indemnifies SupTronics from any claim arising from user's handling or use of this evaluation board/kit. Except for the limited purpose of internal development and evaluation as specified above, no license, express or implied, by estoppel or otherwise, to any SupTronics intellectual property right is granted hereunder.

SUPTRONICS SHALL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMGES RELATING TO USE OF THIS EVALUATION BOARD/KIT.

   Safety Instructions & warnings


⚠

It is essential to read and understand these safety instructions and warnings before charging your batteries.


⚠

Lithium Polymer and Li-ion batteries are volatile. Failure to read and follow the instructions below may result in fire, personal   injury, and damage to property if charged or used improperly.


⚠

Never make a wrong polarity connection when charging or discharging battery packs. Always double-check the polarity of the   battery's connector to ensure that "+" is connected to "+" and "-" is connected to "-".


⚠

Do not mix and use old batteries with new batteries, or batteries with different brand names.


⚠

Lithium batteries have a limited cycle life. Please replace old batteries with new ones when they reach their service life or when   they are two years old, whichever comes first.


⚠

When charging the Battery Pack, please place the battery in a fireproof container. Do not leave the UPS shield on wood material   or carpet unattended.


⚠

Keep the UPS shield away from children to ensure their safety.
