    First Glance X4000 Kits


Front panel

Rear panel



    Hardware Installation


Required toolkit
  Screw diver 1 pc
  Tweezer 1 pc

Required Accessories for X800K HDD board
  Screw M3 x 6mm 6 pcs
  Screw nut M3 x 3mm 4 pcs
  Spacer M2.5 x 6mm 4 pcs
  USB bridge 1 pc
  Power connection wire 1 pc

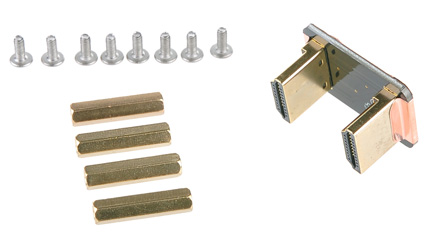

Required Accessories for X4000 DAC board
  Screw M2.5 x 6mm 8 pcs
  Spacer M2.5 x 20mm 4 pcs
  HDMI bridge 1 pc

Required Accessories for metal case
  Screw M3 x 4mm 4 pcs
  Power switch 1 pc


Push a screws (M2.5*6mm) up through the mounting hole on the underside of the X800 and screw the spacer (M2.5*12mm) down until it is hand tight.

Push a screws (M3*6mm) up through the mounting hole on the topside of the X800 and screw the nut (3mm) down but not over the nut.


Insert your hard disk into the SATA socket.  then use your thumb and forefinger of your left hand to press the X800 and HDD as below arrow pointed vigorously and screw down.

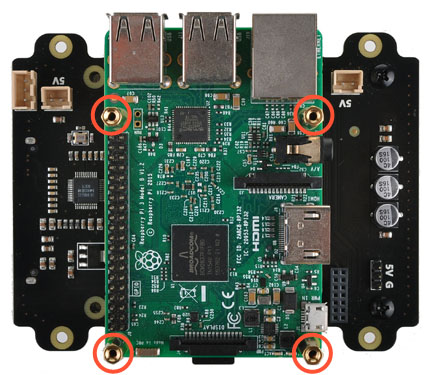

Place your Raspberry Pi on top of X800 and screw the spacer (M2.5*20mm) down until it is hand tight.













Plugs the X4000 board straight into your Raspberry Pi B+'s GPIO header, insert the HDMI bridge, Connect the power cable from X800 to X4000 and screw down (M2.5*6mm)

Insert the USB bridge to connect Raspberry Pi and X800, Connect the power switch and power adapter to X800 and test all functions okay before putting it into the case


Remove the Micro-SD card and USB bridge from Raspberry Pi, pick up the board in a tilted position and put it into the case.

Install the power switch. Please note the gap positions.


Screw down the X800 board (Screw M3 x 6mm, 3 positions as yellow arrow pointed), nipped the connector of power switch  using the tweezer and insert it into the power socket on x800 as orange arrow pointed, unscrew the screws on RCA connectors.

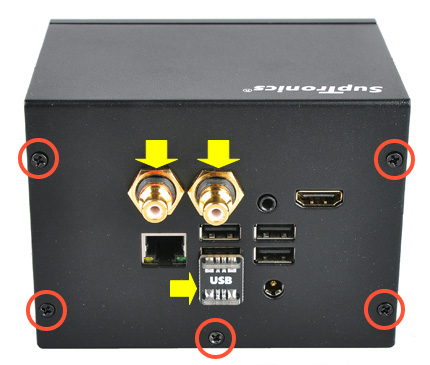

Insert the rear cover and screw down (M3 x 4mm screws), screw down the RCA connector and finally insert the USB bridge.
