❶ |
Push a screws
(M2.5*6mm) up through
the mounting hole on the underside of the Raspberry
Pi. |
|
|
|
❷ |
Screw the spacer (M2.5*20mm)
down until it is hand tight |
|
 |
|
 |
| |
|
|
|
❸ |
Plugs the expansion board
straight into your Raspberry Pi B+'s GPIO header and
screw down
(M2.5*6mm) |
|
|
|
❹ |

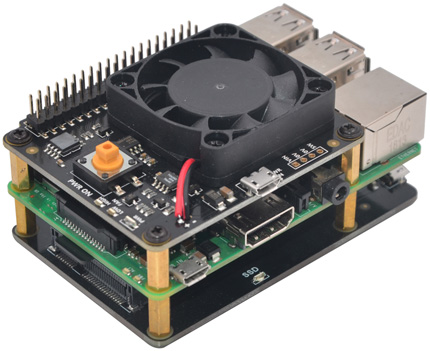

Optional -To use with X850 MSATA SSD
shield,
a) Unscrew 4 screws on the topside of Raspberry pi
b) Screw the spacer (M2.5*23mm)
down until it is hand tight |
|
|
|
 |
| |
|
|
|
❺ |

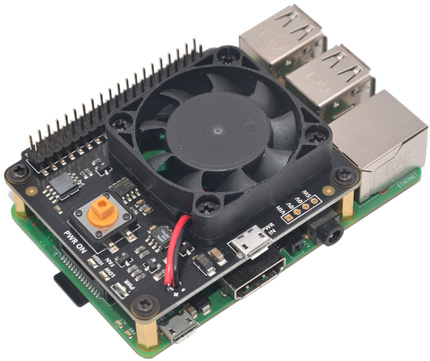

a) Plugs the X730 board
straight into your Raspberry Pi B+'s
GPIO header and
screw down
(M2.5*6mm)
b) Power adapter must be connected
to X723 only , not X850
and Raspberry Pi |
 |
|
|
| |
|
|
