Function Description |
X735 V3.0
|
|
|
|
|
|
|
|
 |
|
|
|
| ❶ |
Power Jack, power
input and power output |
|
|
|
Power input via
Type-C / Micro-USB |
5Vdc +/- 5% , ≥3A |
Power input via
DC jack (5.5*2.1mm) |
6~30Vdc,
≥2A |
|
Micro USB power socket |
Pin 1 - 5Vdc, Pin 5 - GND |
Power input / output
connector |
XH2.54mm 2pin |
|
|
|

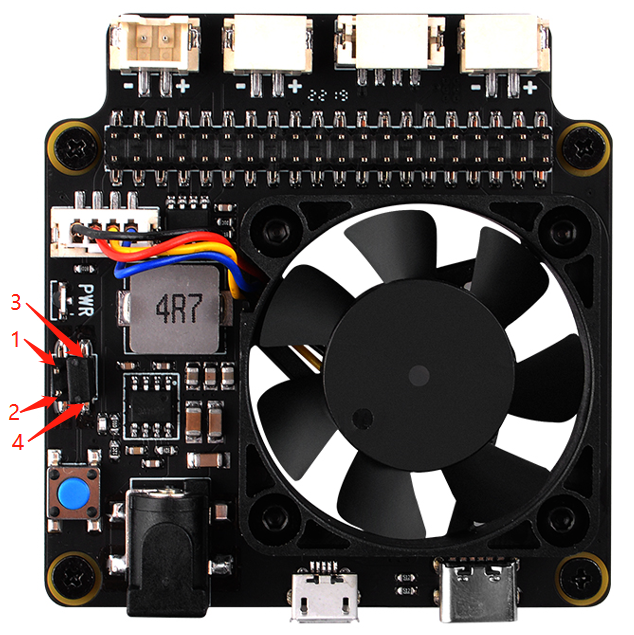

Jumper No. |
Usage |
Pin1 and Pin2
|
Short
- Auto power-on when power applied |
| Open
- Auto power-on disabled |
|
Pin3 and Pin4 |
| Short
- Fan controlled by GPIO13 |
Open
- Fan running at full speed, not GPIO
controlled |
|
|
|
|
|
|
❸ |
Connectors for
External Power Switch |
|
|
|
❹ |
Using
momentary power
button |
|
|
Pin No. |
Pin Description |
|
1 |
Power on/off control connecting to switch |
|
2 |
Ground |
|
3 |
Ground |
|
4 |
LED+
for power on, rebooting and shutdown |
Connector - Pitch 2.0mm 4pos |
|
|
Press and Release |
Raspberry
Pi and X735 turn on
Power LED stays on |
|
Press and hold for 1~2 seconds |
System
rebooting
Power LED Blinks rapidly |
|
Press and hold for 3~7 seconds |
System shutting down
Power LED Blinks slowly |
|
Press and hold for >8 seconds |
Force
shutdown |
*Script
for power
management installed |
|
|
|
|
|
|
|
|
|
Pin No. |
Usage |
|
2, 4 |
+5V
power supply |
|
6 |
Ground |
|
29 |
GPIO5
for power management |
|
32 |
GPIO12
for power management |
|
38 |
GPIO20
for power management |
|
33 |
GPIO13
for PWM fan speed control |
|
36 |
GPIO16
for PWM fan speed reading |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Board Assembly |
|
|
|
|
|
|
|
|
❶ |
Push a screws
(M2.5*6mm) up through
the mounting hole on the underside of the Raspberry
Pi. |
|
|
|
❷ |
Screw the spacer (M2.5*12mm)
down until it is hand tight |
|
 |
|
 |
| |
|
|
|
❸ |
Plugs the X735 board
straight into your Raspberry Pi B+'s GPIO header and
screw down
(M2.5*6mm) |
|
|
|
❹ |
Optional -To use with X820/X850/X822/X852/X860/X870
a) Unscrew 4 screws on the topside of Raspberry pi
b) Screw the M/F spacer (M2.5*12
/ M2.5*20)
down until it is
hand tight |
|
 |
|
 |
| |
|
|
|
❺ |
Plugs the X735 straight into your
Raspberry Pi's GPIO header and screw down
(M2.5*6mm) |
|
|
|
❻ |
Connect the 2-pin power
connection wire from the 5V connector on
X735 to
X820/X850/X822/X852/X860/X870
Power adapter must be connected
to power management
board only , not X860 and Raspberry Pi |
|
 |
|
 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
