    Hardware Installation X850


❶ Required tool

❷ Required Accessories

❸ Remove the yellow films

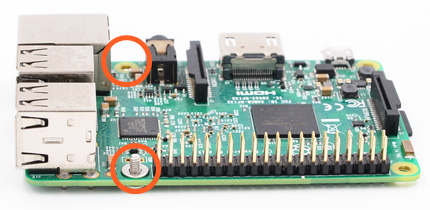

❹  Push the screws (M2.5*6mm) up through the mounting hole on the underside of the Raspberry Pi then place the washer.


❺  Screw the spacer (M2.5*20mm) down until it is hand tight.

❻  Place X850 on top of Raspberry Pi  and screw down (M2.5*6mm screws). finally Insert the USB jumper.



❼  Insert your mSATA SSD into the mSATA socket

❽  Align the notches on the mSATA SSD with the notches in the mSATA socket, then insert as shown.


❾  Screw the mSATA drive into place.
