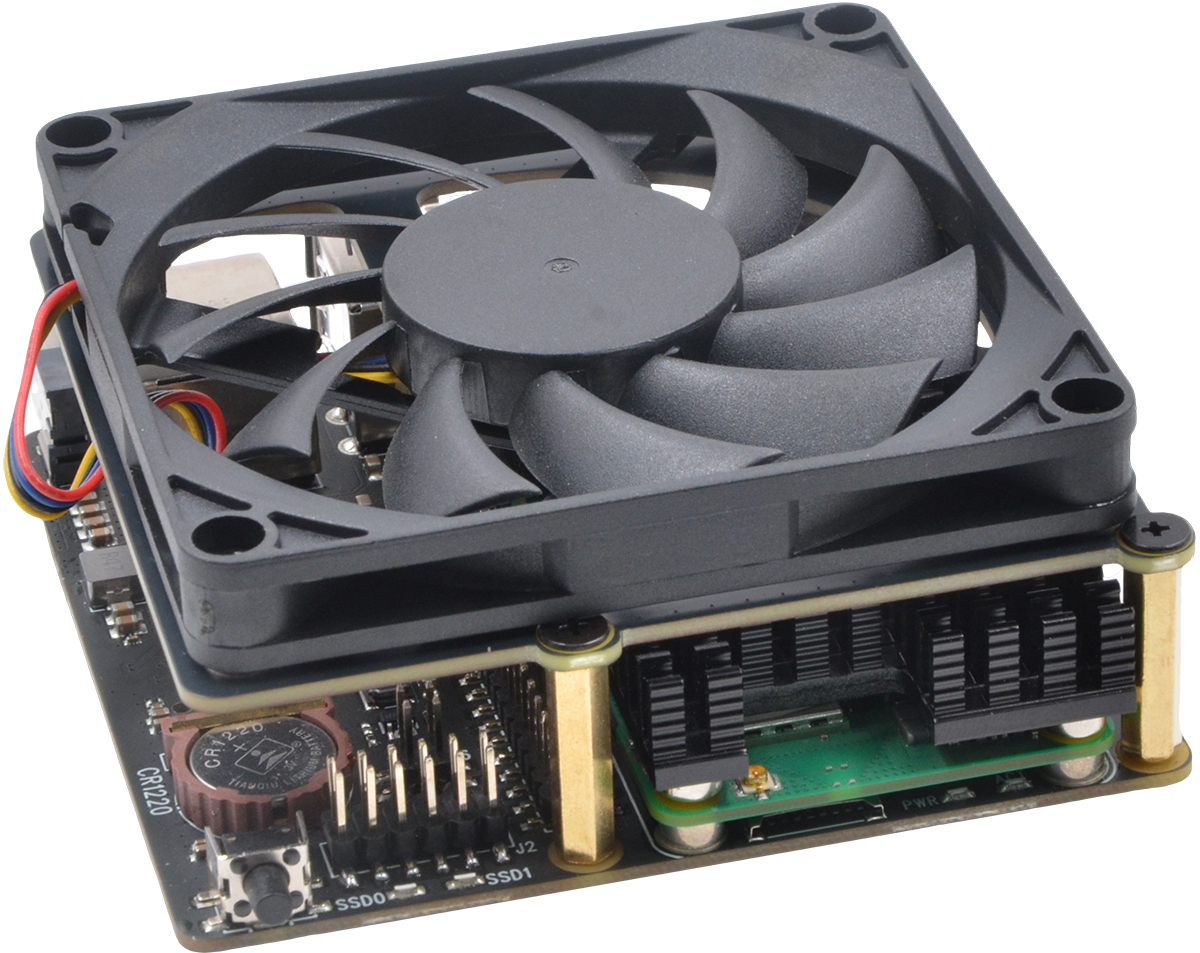

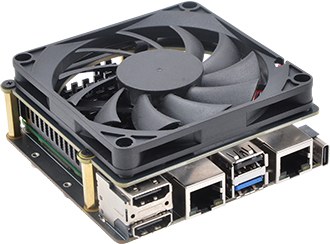

The X15-F1 is
an advanced active cooling module specifically
designed for X15xx-series CM5 I/O boards while
maintaining full compatibility with existing
Raspberry Pi cooling solutions. It integrates an
80×80mm PWM-programmable fan delivering adjustable
airflow up to 19.68 CFM (0.56 m³/min), ensuring
optimal thermal performance for Compute Module 5
systems under sustained high-load conditions – ideal
for overclockers, industrial users, and performance
enthusiasts, it maintains optimal operating
temperatures for Compute Module 5 systems even under
maximum load conditions.
|
|
|
| |
|
|
| |
| |
ü
|
Excellent cooling
performance:
80×80mm PWM-controlled fan with 19.68 CFM
max airflow, 8x greater airflow than the
Raspberry Pi IO case fan, Real-time speed adjustment for
dynamic thermal management.
|
|
ü
|
Easy installation:
Dedicated fan bracket board that
enables seamless installation above the I/O
boards,
Zero-interference design with Raspberry Pi
heatsinks/coolers. |
|
|
ü |
Industrial-Grade Reliability:
Stable operation under continuous full load,
Vibration-resistant mounting system. |
|
| |
|
|
|
û |
The 40-pin GPIO header becomes inaccessible
after installation. |
|
|
û |

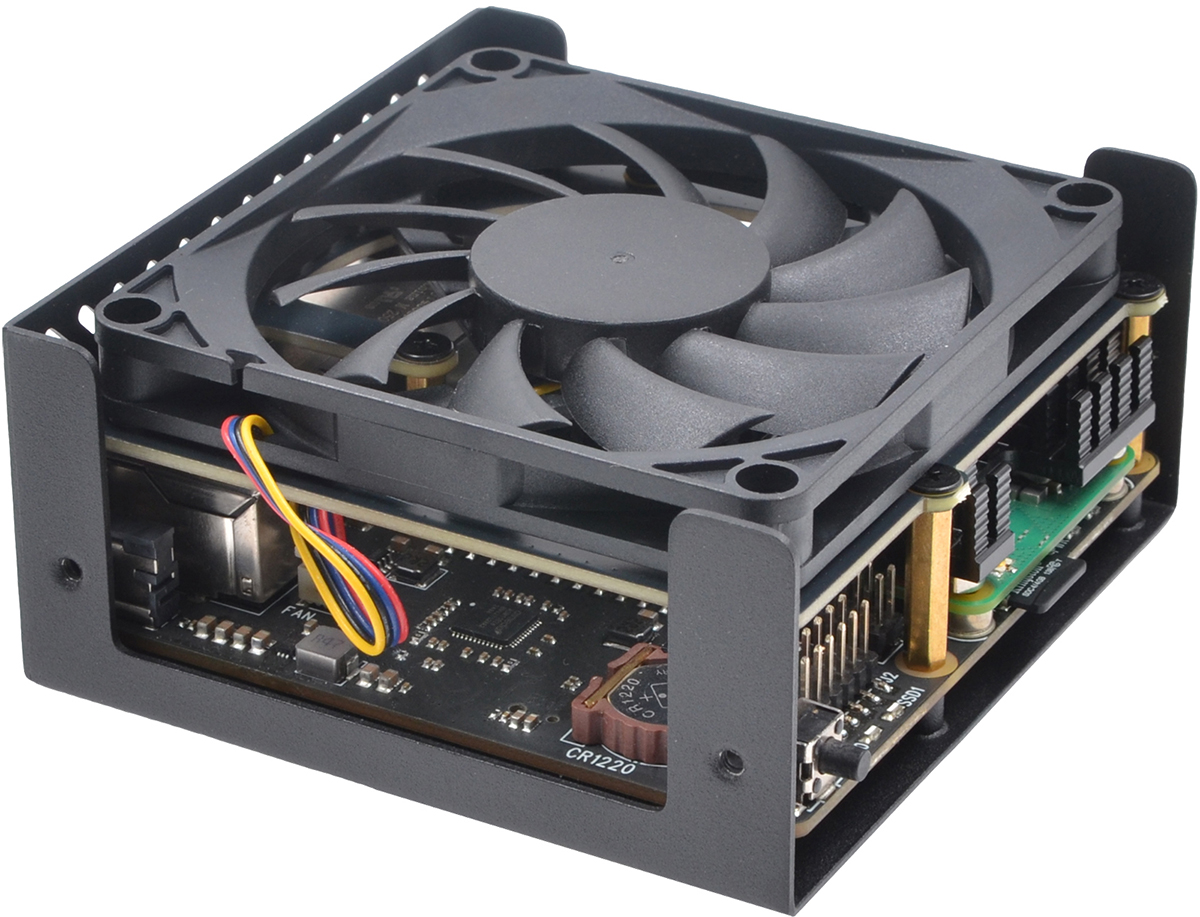

Installing an external Wi-Fi antenna on the X15-C1 case becomes challenging once the fan is installed. |
|
|
û |
The X15-F1 cannot be installed inside the
X15-C2 case. |
|
|
|
| |
|
|
| |
| |
|
Operating voltage: |
|
5V DC (4.5 – 5.5V)
supplied via four-pin fan header on a
carrier board |
|
Start voltage: |
|
≥ 3.5V |
|
Power consumption: |
|
0.8W |
|
Rated current: |
|
0.16 ± 0.02A |
|
Fan speed control: |
|
Pulse width modulation
control with tachometer |
|
Maximum fan speed: |
|
2500 RPM ± 10% |
|
Maximum airflow: |
|
19.68 CFM |
|
Noise: |
|
26.3 dBA |
|
Dimensions: |
|
80×80×10mm (L×W×H) |
|
Cable length: |
|
70 mm |
|

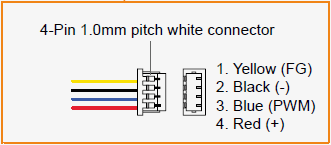

Pinout: |
|
 |
|
|
| |
|
|
| |
| |

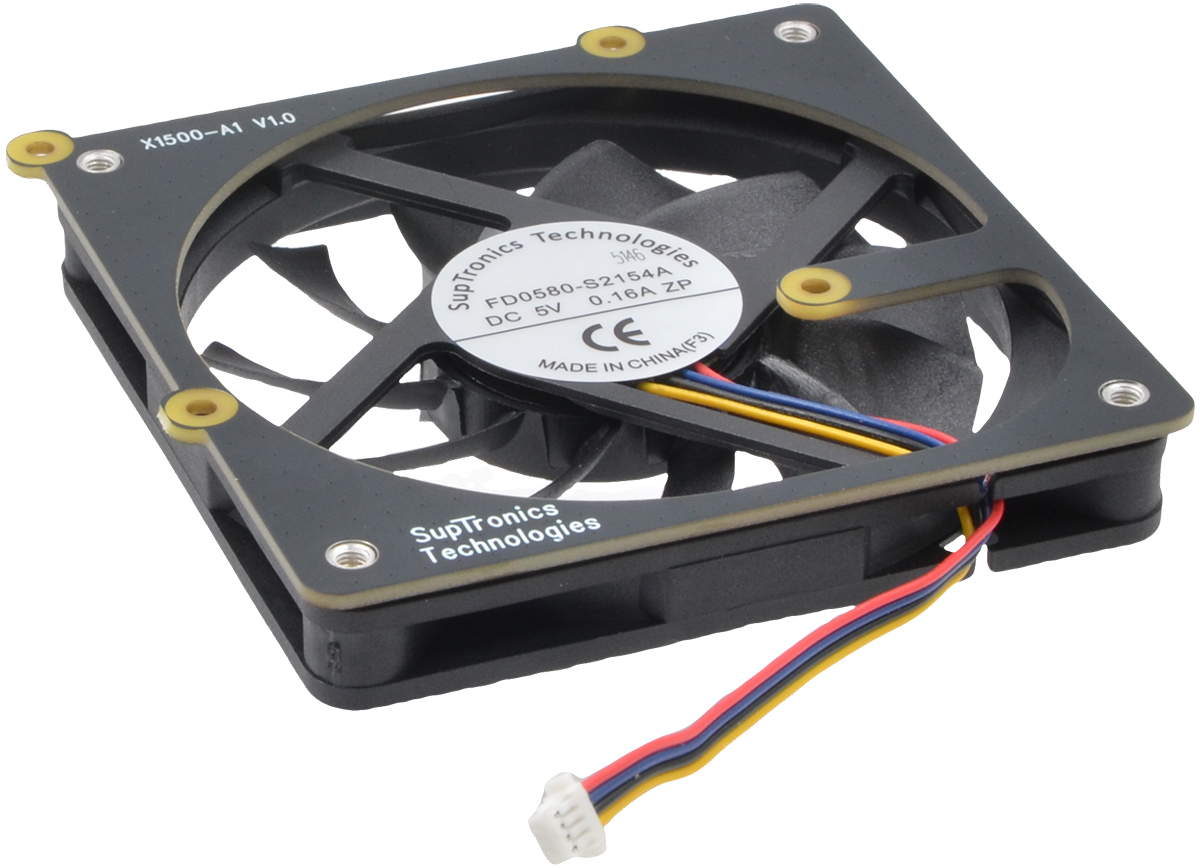

X15-F1 Fan Kit |
| |

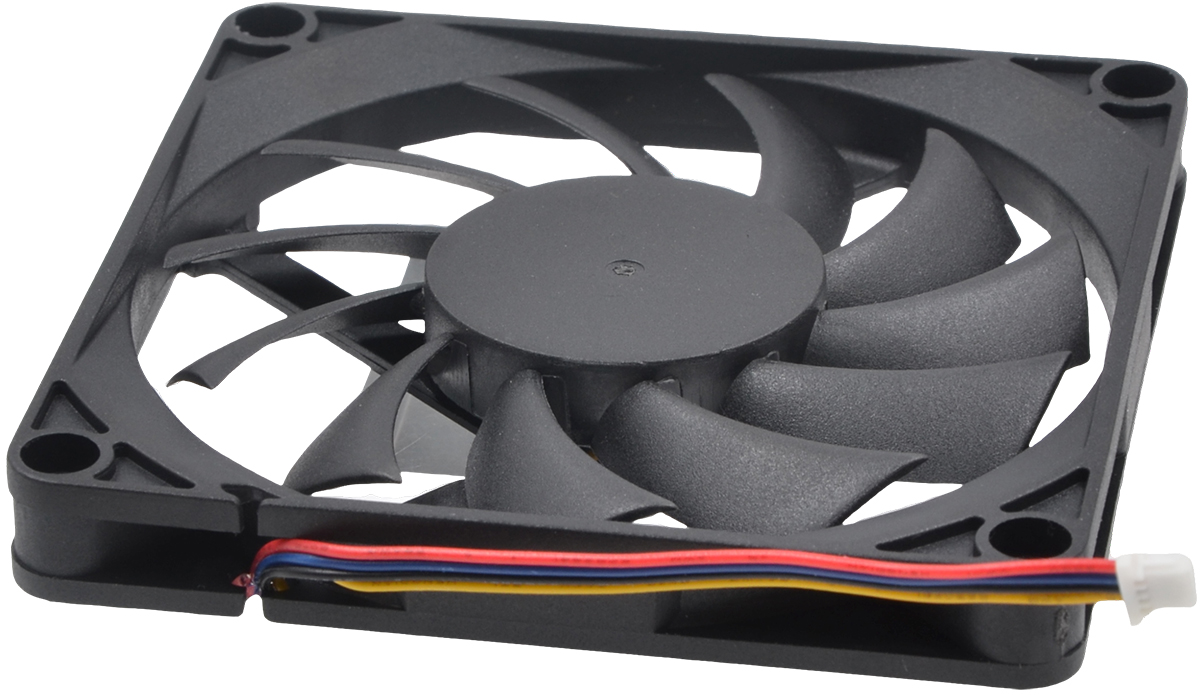

- 8010 PWM fan x1 |
| |

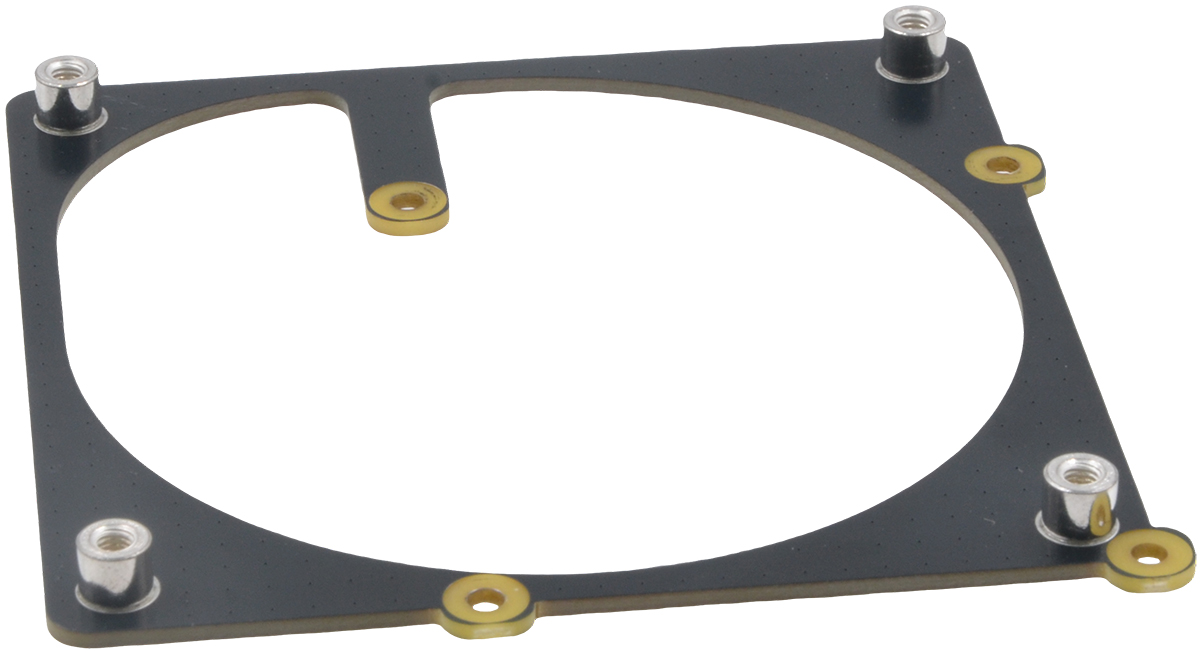

- Fan PCB bracket x1 |
| |
- screw
pack x1 |
|
| |
| |
