8010 PWM-controlled fan
  Getting Started - hardware


  Home
KVM over IP Switches Raspberry Pi Boards / Kits Network Attached Storage(NAS) SBC Power Supplies
  Be Our Distributor      Custom Products      OEM/ODM      What We Do      Contact


     Assembly instructions   hardware   software


Step 1 Protecting from ESD


Grounding protects the components from the static electricity that can be naturally present (electrostatic discharge, ESD).



  • Notice: Risk of damage to the equipment due to electrostatic discharge. Always: Touch the working surface before touching electronics.


  • Ideally: Use ESD protective equipment, such as ESD table mats and grounding cords.
Step 2 CM5, Cooler and SSD install


  • Install Compute Module 5 onto the Compute Module 5 IO board.


  • Install the Raspberry Pi cooler onto the Compute Module 5.

  • Install the M.2 NVMe SSDs on the underside of the IO board.
Step 3 Secure the IO baord (If installing inside the X15-C1 case for the X1500/X1501 IO board, proceed directly to step 7)

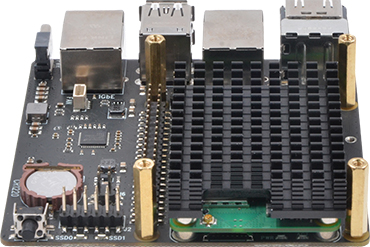

  • Place the IO Board into the base of the Case.


  • Align the four mounting holes.



  • Secure the IO board to the base with four M2.5 × 19 spacers (supplied).


Step 4 Connect the fan power cable

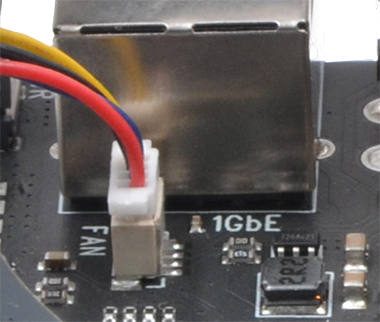

  • Orient the fan connector according to the reference photo.

  • Plug the fan power cable into the FAN connector on the IO Board.



Step 5 Secure the fan bracket baord

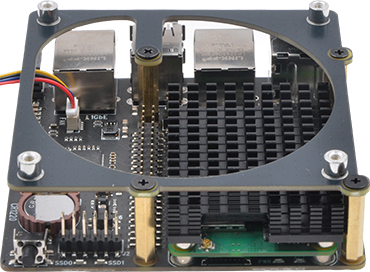

  • Position the fan bracket board atop the mounting spacers.


  • Align the four mounting holes.



  • Secure the fan bracket board to the spacers with four M2.5x5mm screws.


Step 6 Install the fan

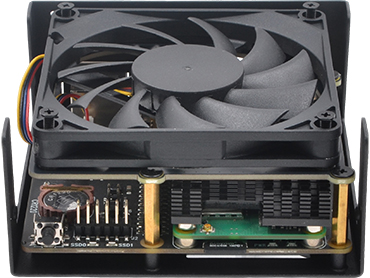

  • Position the fan atop the mounting spacers on the fan bracket board.


  • Align the fan mounting holes.


  • Apply even pressure on all four corners until until you feel/hear all four mounting points click into place.

  • Secure the fan to the spacers with four M3x10mm screws.


    Installed inside the X15-C1 case

Step 7 Disassemble the case




  • Separate the top of the Case from the base by unscrewing the M3 screws located on both side panels.


Step 8 Secure the IO baord

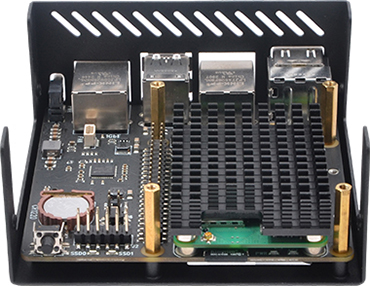

  • Place the IO Board into the base of the Case.


  • Align the four mounting holes.



  • Secure the IO board to the base with four M2.5 × 19 spacers (supplied).


Step 9 Connect the fan power cable


  • Orient the fan connector according to the reference photo.

  • Plug the fan power cable into the FAN connector on the IO Board.

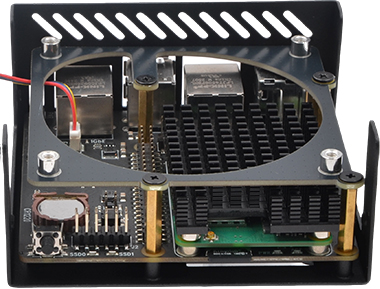

Step 10 Secure the fan bracket baord


  • Position the fan bracket board atop the mounting spacers.


  • Align the four mounting holes.



  • Secure the fan bracket board to the spacers with four M2.5x5mm screws.


Step 11 Install the fan


  • Position the fan atop the mounting spacers on the fan bracket board.


  • Align the fan mounting holes.


  • Apply even pressure on all four corners until until you feel/hear all four mounting points click into place.

  • Secure the fan to the spacers with four M3x10mm screws.
Step 12 Assemble the case


  • Place the top of the case over the base and secure with four M3 × 4 screws.
