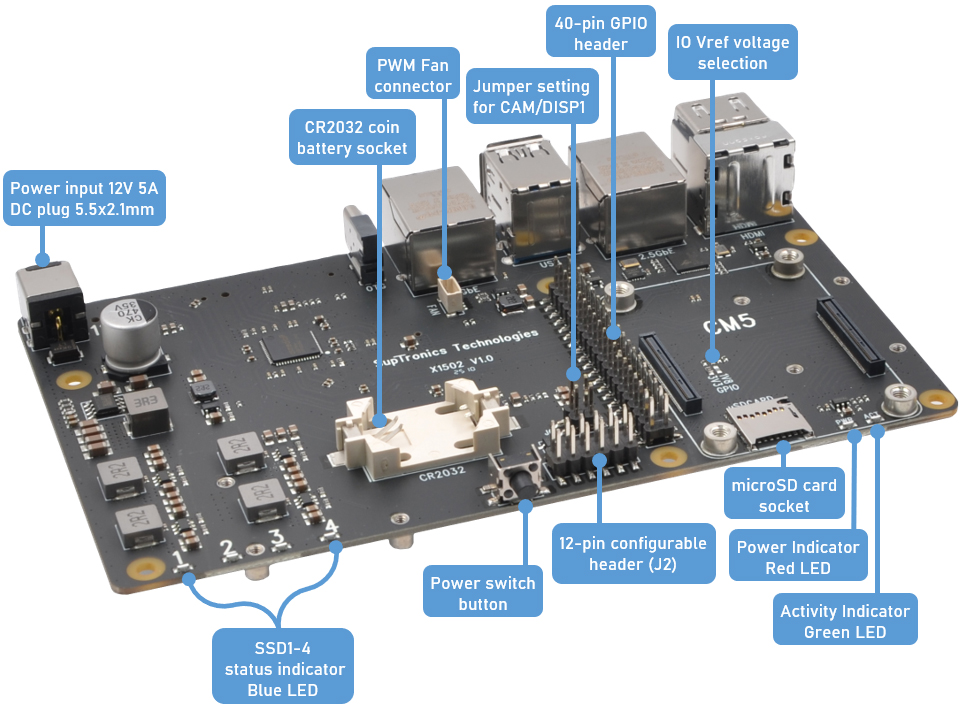

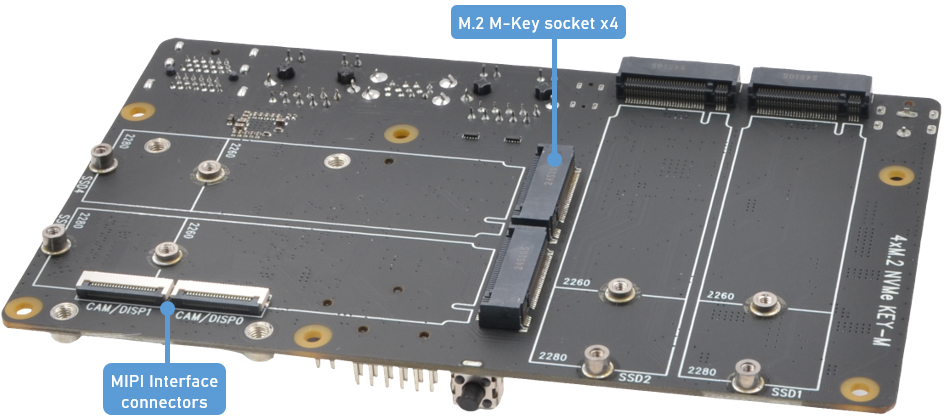

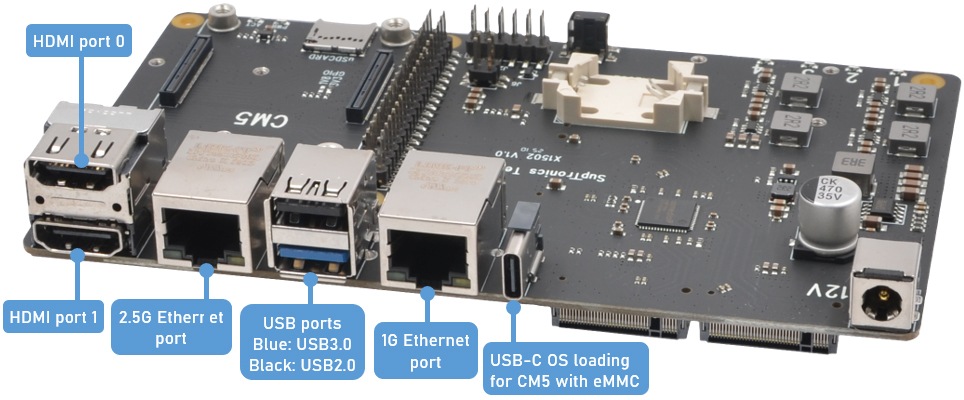

       hardware introduction


PWM fan connector


4-Pin 1.0 pitch white connector

  • Yellow (FG)


  • Black (Ground)


  •  Blue (PWM)

  •  Red (+5V power)
Jumper setting for CAM/DISP1


  • If either CAM/DISP 1 is used then both jumpers must be fitted to route the I2C bus to the connectors.




12-pin configurable  header (J2)


  • Pin1-2: nRPIBOOT - if fitted, forces USB booting (useful if the eMMC becomes corrupted)


  • Pin3-4: EEPROM_nWP - if fitted, write-protects the EEPROM on CM5.


  • Pin6: SYNC_OUT - IEEE1588 timing pin. (can be configured as input).

  • Pin8: USBOTG

  • Pin10: PMIC_ENABLE

  • Pin12: Connect a push button to wakeup or shutdown CM5.

  •  Pin1, 3, 5, 7, 9, 11: Ground

       required hardware

   1

X1502 CM5 IO board

    2

Raspberry Pi Compute Module 5


   3

Power Supply 12V 5A DC plug 5.5x2.1mm

    4

micro-SD card (≥16GB) x1 (not equired if eMMC version)


  5    M.2 NVMe SSD x1-8 (SATA SSD not compatible)   6   Raspberry Pi CM5 cooler
  7   CR2032 coin-cell battery


       hardware installation


Installing the Raspberry Pi Compute Module 5
Step 1 Protecting from ESD


Grounding protects the components from the static electricity that can be naturally present (electrostatic discharge, ESD).



  • Notice: Risk of damage to the equipment due to electrostatic discharge. Always: Touch the working surface before touching electronics.


  • Ideally: Use ESD protective equipment, such as ESD table mats and grounding cords.
Step 2 Aligh the IO board and CM5


  • Place the board in front of you, the connectors facing to the top.


  • Orient the CM5 as indicated by the arrow.


  • Use the outline of the chips to help find the correct orientation of the CM5.



  • Carefully place the CM5 without force.


  • The CM5 should fall into place slightly when correctly aligned.

  • Confirm the Compute Module is correctly mated by looking at each corner of the IO Board.
Step 3 Installing the CM5


  • Press the CM5 board onto the board-to-board connectors until it clicks into place.


Make sure you press on both sides (the two long edges).


  • This requires quite a bit of force. If you don't hear a loud click, it is most likely not fully seated.

  • Do a visual check to make sure the CM5 is installed correctly: it needs to run parallel to the IO board.
Step 4 Installing the heat sink (requires separate Raspberry Pi CM5 cooler)


  • Please remove the protective white paper from the thermal silicone.


  • Place the Cooler onto Compute Module 5.


  • Align the mounting holes, insert four M2.5 × 8 screws (supplied) upwards from beneath the IO Board, and tighten.


Step 5 Installing the RTC battery

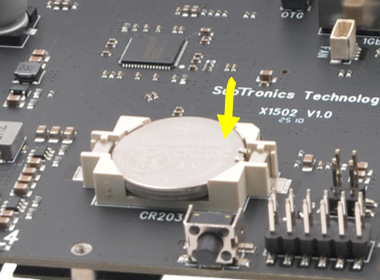

  • Insert the CR2032 coin-cell  battery (making sure that the battery isoriented correctly. Positive side (+) UP).





Step 6a Installing the M.2 2280 NVMe SSD devices


  • Insert the M.2 SSD into M.2 slot then slide the SSD drive into the M.2 slot at 30 degrees while pushing it gently till it fits into the slot.


  • Notice that after insertion into the M.2 slot, the SSD drive inclined angle to the board.


  • Press the M.2 SSD drive till it sits on the riser screw then lock it in place using the M2 mounting screw.

Step 6b Installing the M.2 2230/2242 NVMe SSD devices


  • Set the the M.2 extension board on top of the spacers, and use the two M2 screws to secure it in place.

  • Installing the 2230/2242 SSD follows the same process as installing the 2280 SSD, as outlined in Step 5a.
