	X1507 V1.0		ACTIVE	hardware		software

Product Overview

Ultra-Compact, Fanless Embedded Solution for Raspberry Pi CM5.

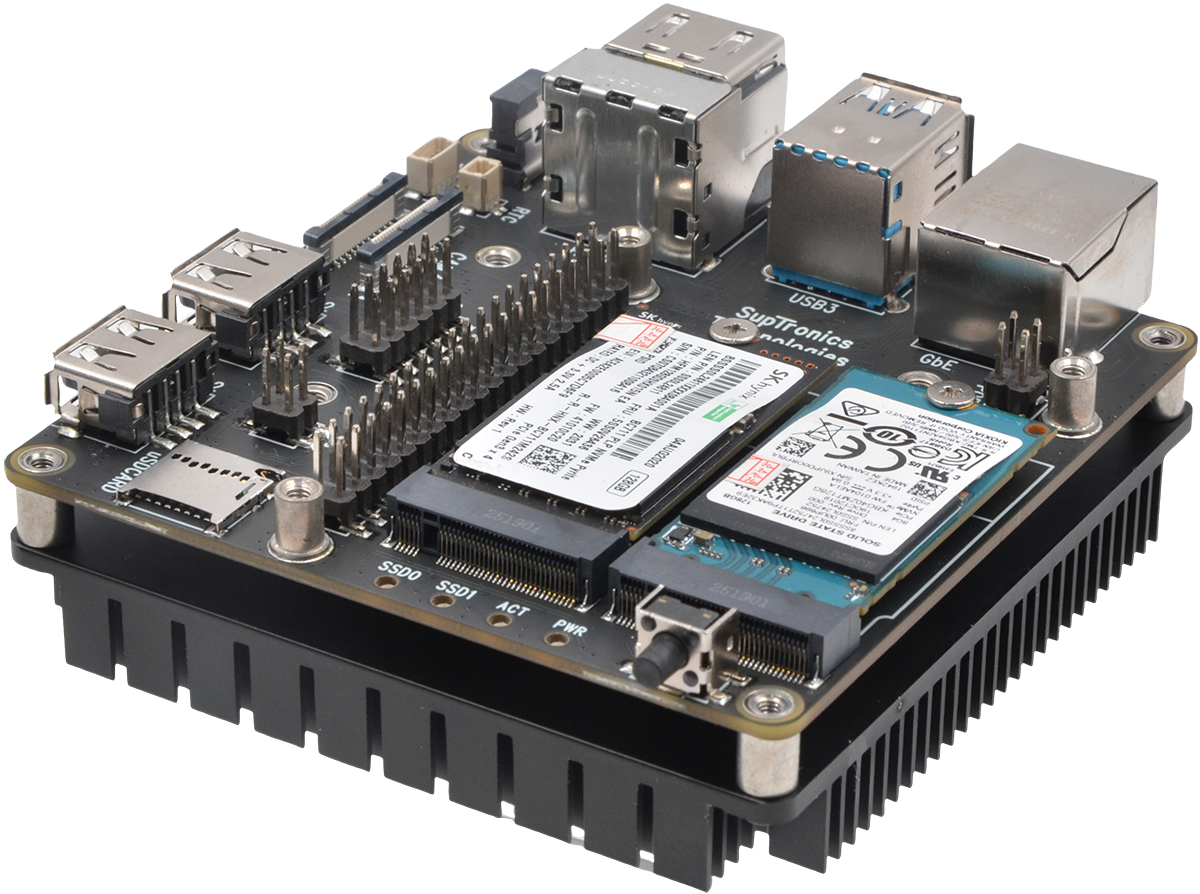

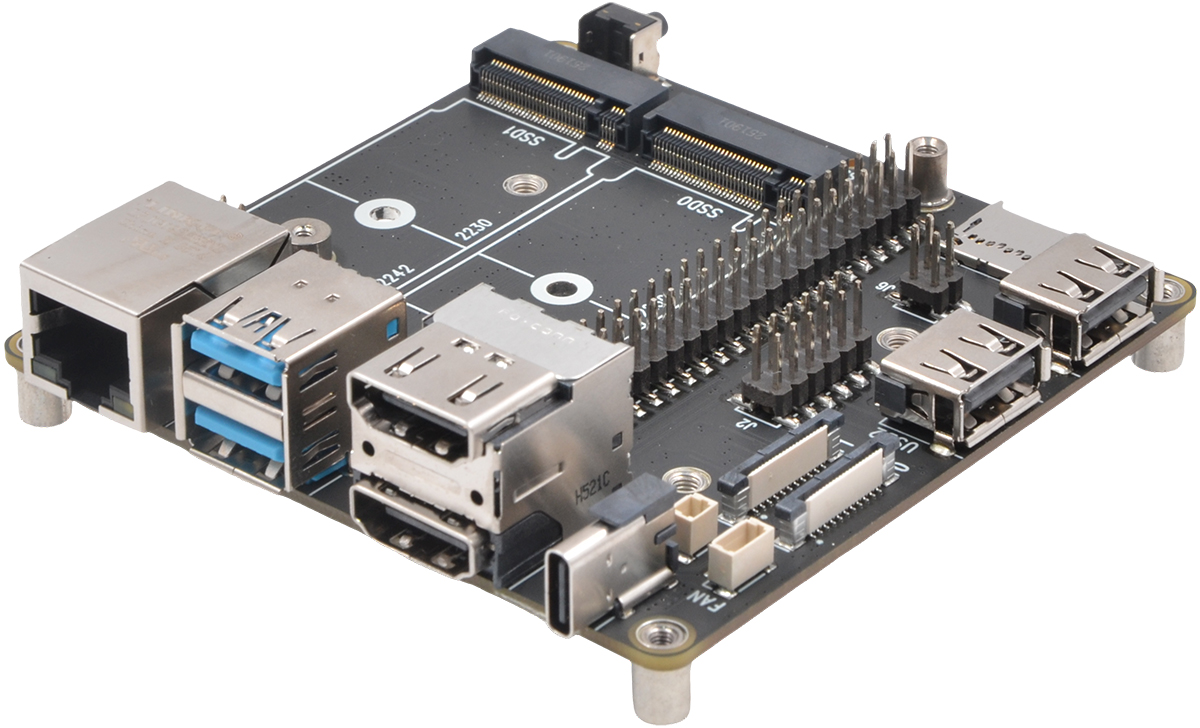

The X1507 is a high-performance, fanless I/O carrier board designed for the Raspberry Pi Compute Module 5 (CM5), offering dual M.2 NVMe slots and a streamlined layout for effortless integration. Its ultra-compact, fully passive design positions all user connectors on the top side while housing chip components and the CM5 underneath, simplifying enclosure design and enabling silent, dust-free operation. Ideal for embedded systems, edge computing, and industrial applications, the X1507 accelerates development with compatibility for Raspberry Pi HATs and off-the-shelf NVMe storage, delivering flexibility, reliability, and high-speed performance in a rugged, fanless package.

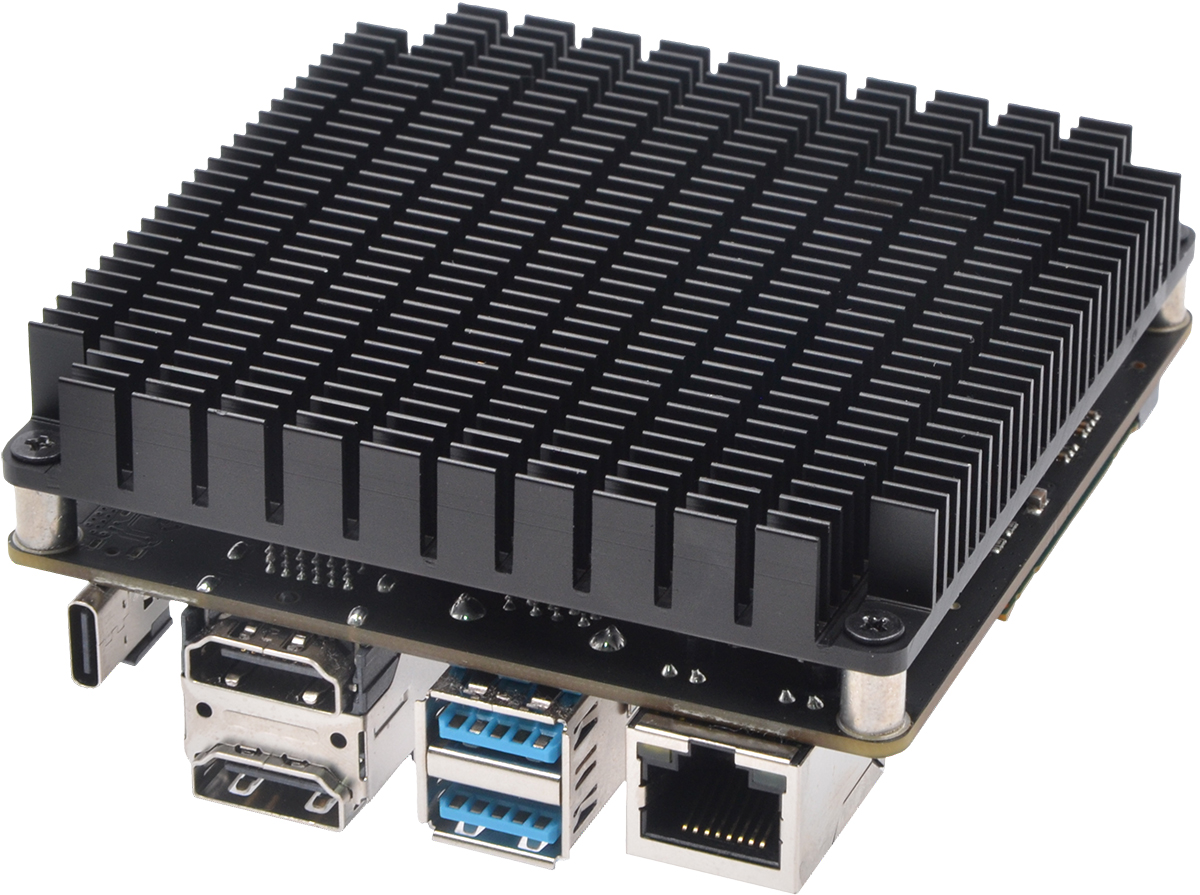

The X1507 can be installed inside a sealed metal case, redefining passive cooling by turning the metal chassis into an efficient heatsink. Its innovative thermal design directly transfers heat from CM5 critical components to the enclosure itself, creating a completely fanless system that operates in silence while eliminating dust buildup. This rugged approach ensures maximum reliability in demanding environments where moving parts would fail.

Product Features

ü	Optimized for Fanless Operation: Ultra-compact layout with passive cooling, eliminating noise, dust, and moving parts.

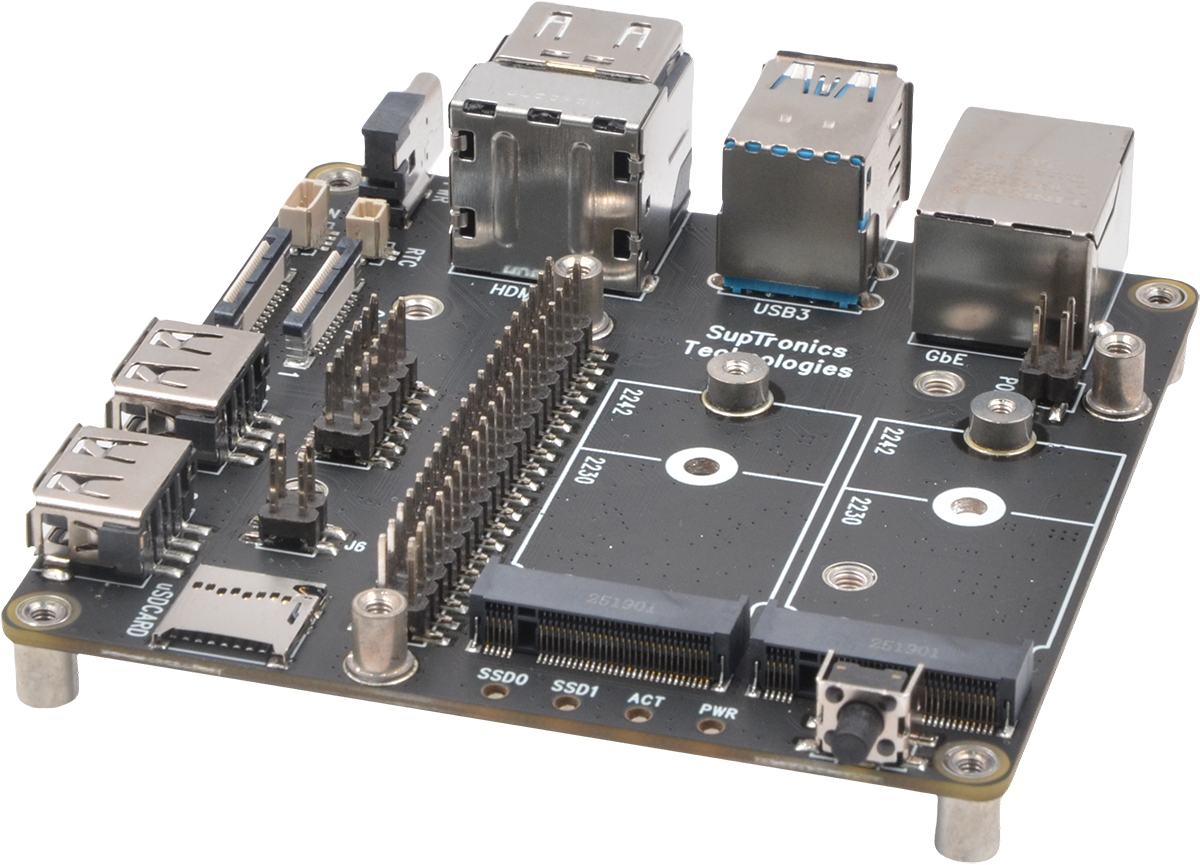

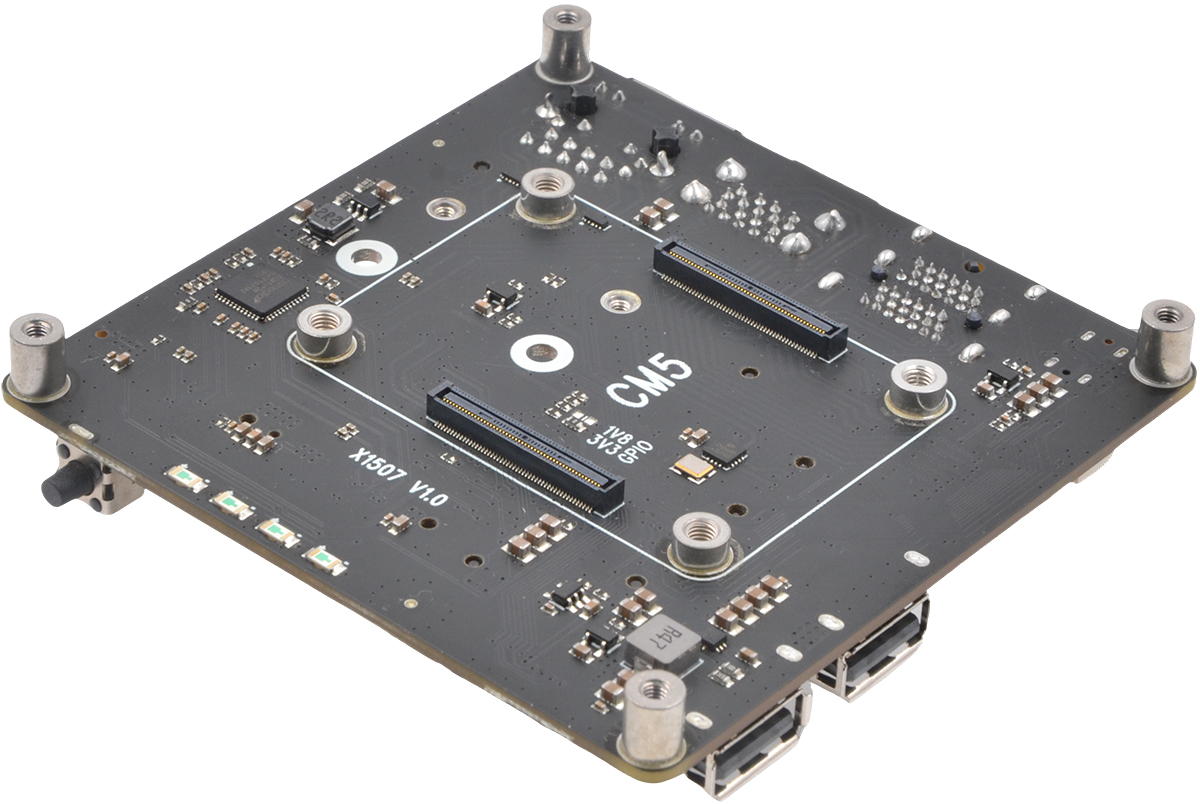

ü	Streamlined System Integration: All user-facing connectors are positioned on the top side, while chip components and the CM5 are mounted underneath for easy enclosure design.
ü	Thermal performance: At Standby (10 min): CPU stabilizes at 38°C, Stress test (30 min): CPU reaches 58°C - See note 2
ü	Gigabit Ethernet Port: Features 1GbE with PoE+ support (for simplified power delivery)
ü	Dual M.2 NVMe SSD Slots: Supports up to 8TB via PCIe 2.0 (5Gbps) for fast data transfers and boot times, compatible with M.2 NVMe SSDs in 2242, and 2230 form factors.
ü	Dual HDMI 2.0 Ports: Enables dual 4K display output for multimedia or industrial use cases.
ü	Dual USB 3.2 Gen 1 Ports: delivering high-speed data transfer rates of up to 5 Gbps.
ü	Dual MIPI DSI/CSI-2 Connectors: 22-pin FPC connectors (0.5mm pitch) compatible with Raspberry Pi 5 CSI and DSI modules for seamless camera and display integration.
ü	MicroSD Card Slot: Supports Compute Module 5 Lite variants (without onboard eMMC).
ü	Raspberry Pi HAT+ Compatibility: Reuse existing Raspberry Pi HATs to save time and reduce development costs.
ü	Supports the Hailo AI acceleration module
ü	Convenient Power Button: Easily wake or shut down the Compute Module 5 with a single press.
ü	RTC Battery Socket (CR1220): Ensures accurate timekeeping during power interruptions.
ü	PWM Fan Support: Includes a fan power connector for adjustable cooling in demanding environments.
ü	USB-C Port: Handles both power delivery and OS image loading directly into the CM5’s eMMC.
ü	Configurable Jumpers: Allows disabling features like wireless connectivity or EEPROM writing for customization.

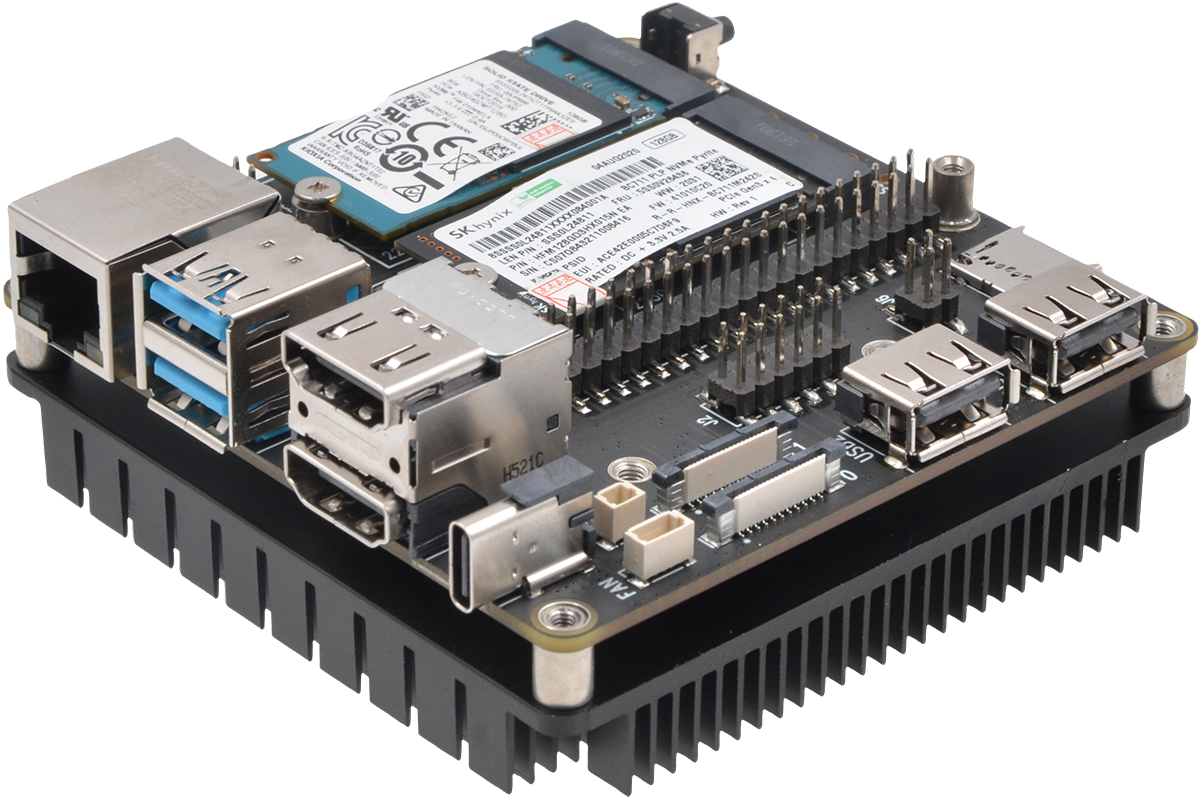

ü	Streamlined Connector Layout: USB, HDMI, Ethernet, and power ports are grouped along one edge for clean cable management and easy enclosure integration.
ü	Compatible Accessories: X1012 POE HAT, X1207 POE+UPS, X1209 UPS

Test & Reviews

Test Conditions

-System board details: Raspberry Pi Compute Module 5 Lite 2GB RAM

-Interface board details: X1507 CM5 IO boards

-Operation system: Raspberry Pi OS with desktop (Debian12 (bookworm), 64bit, Release date: May 13 2025)

openmediavault 7.0

-Storage details: SKhynix HFM128GD3HX015N 128G, KIOXA KBG40ZMT128G 128G

- Nework details: Xiaomi WiFi7 router BE6500

- Ambient temperature: 28°C

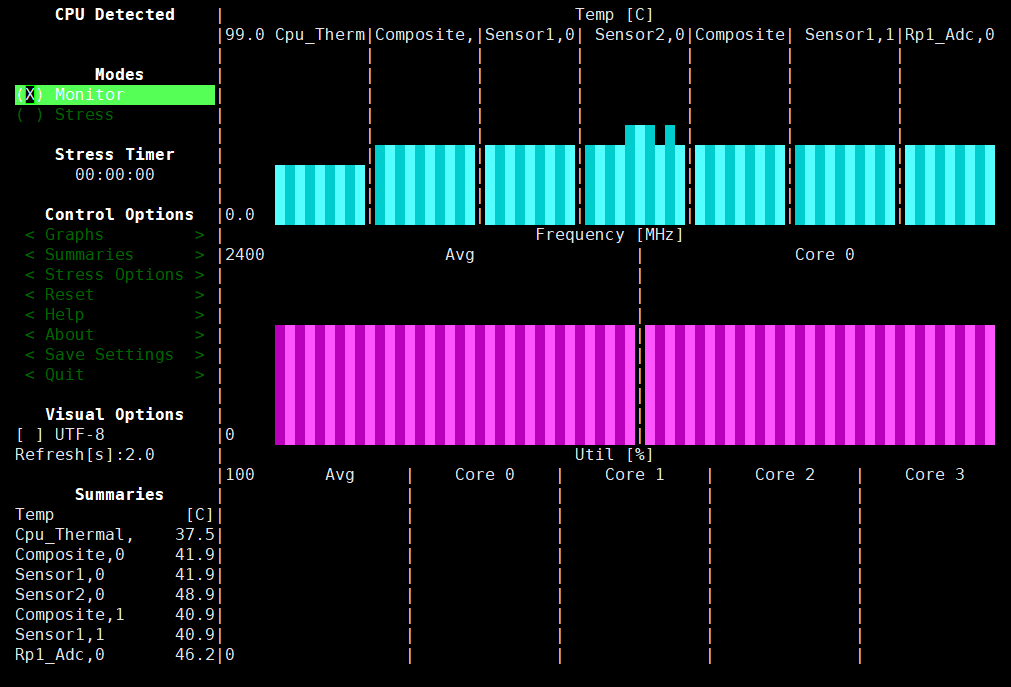

Thermal performance with the supplied passive cooler: After 10 minutes in standby, the CPU temperature reaches 37.5°C.

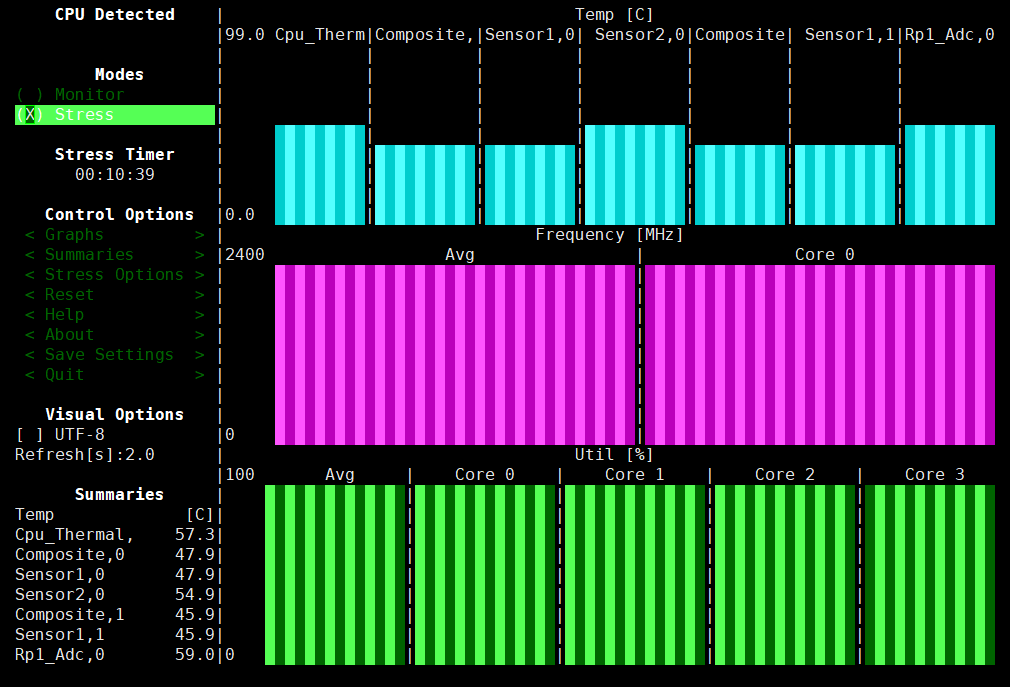

Under a 10-minute stress test, the CPU stabilizes at 57.3°C.

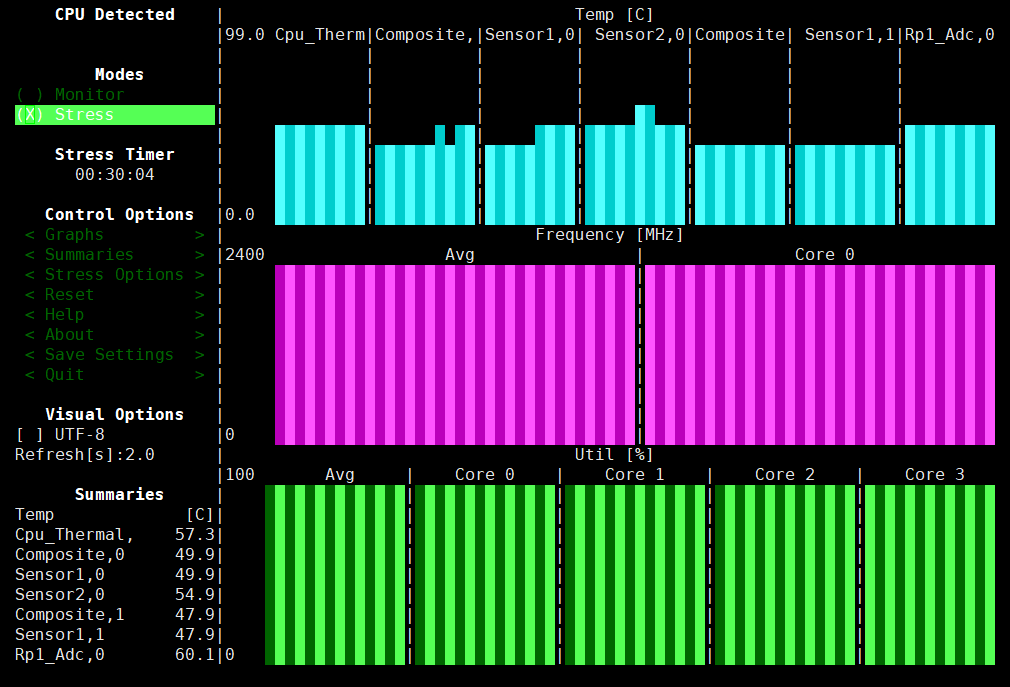

Under a 30-minute stress test, the CPU stabilizes at 57.3°C.

Testing 1Gbps Ethernet on the Raspberry Pi CM5

Use iPerf Tool to Test Network Speed/Bandwidth, Getting max 961Mbps

Performance test for write speeds on an OpenMediaVault (OMV) shared folder

Performance test for read speeds on an OpenMediaVault (OMV) shared folder

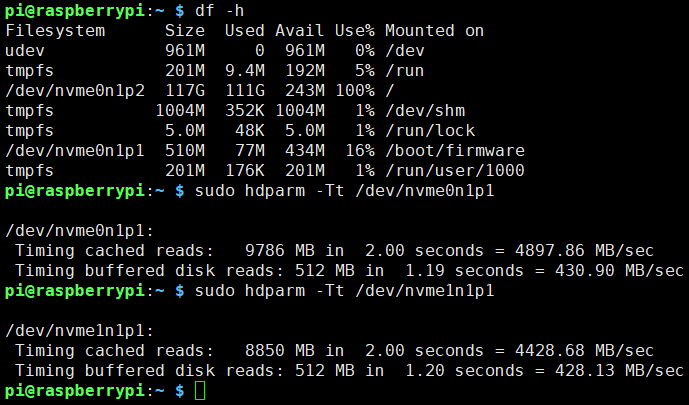

Testing disk drive read speed with hdparm

Technical Specification

Power supply		5.1Vdc +/-5% 5A power via USB-C power supply
Connectivity:		USB-C (Power in and OS image loading)
		1Gigabit RJ45 Ethernet with PoE+ HAT+ support (requires separate Raspberry Pi PoE+ HAT+)
		2 x USB3.0 Type-A
		2 x USB2.0 Type-A
		Standard 40-pin GPIO header
		microSD card socket for Compute Module 5 Lite modules
		2 x M.2 M key NVMe sockets
		4-pin fan connector
		2-pin RTC battery connector
		2 x MIPI DSI/CSI-2 FPC connectors (22-pin 0.5 mm pitch cable)
		Raspberry Pi HAT+ connector
		RTC battery socket
Video:		2 x full-size HDMI 2.0 connectors
Input power:		External +5V USB-C PSU
		Power button to wake and shut down Compute Module 5
Form factor:	:	85mm x 85mm
Heatsink size:	:	85mm x 85mm x12mm (LxWxH)

Package Contents

	CM5 carrier board Kit
	- X1507 V1.0 CM5 carrier board x1
	- Heatsink 85x85x12mm x1
	- 2.54mm jumer cap x2
	- Screw pack x1

Important Notes

-	For optimal performance, please use the official Raspberry Pi 27W USB-C Power Supply. An incompatible power supply may fail to power on the system.
-	Thermal performance may vary depending on test conditions, including ambient temperature and hardware configuration.
