       required hardware

   1

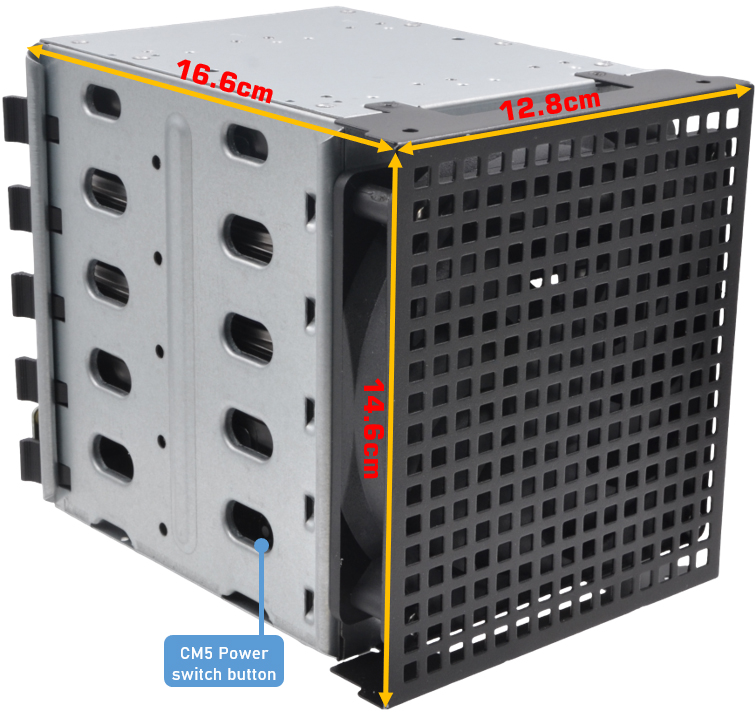

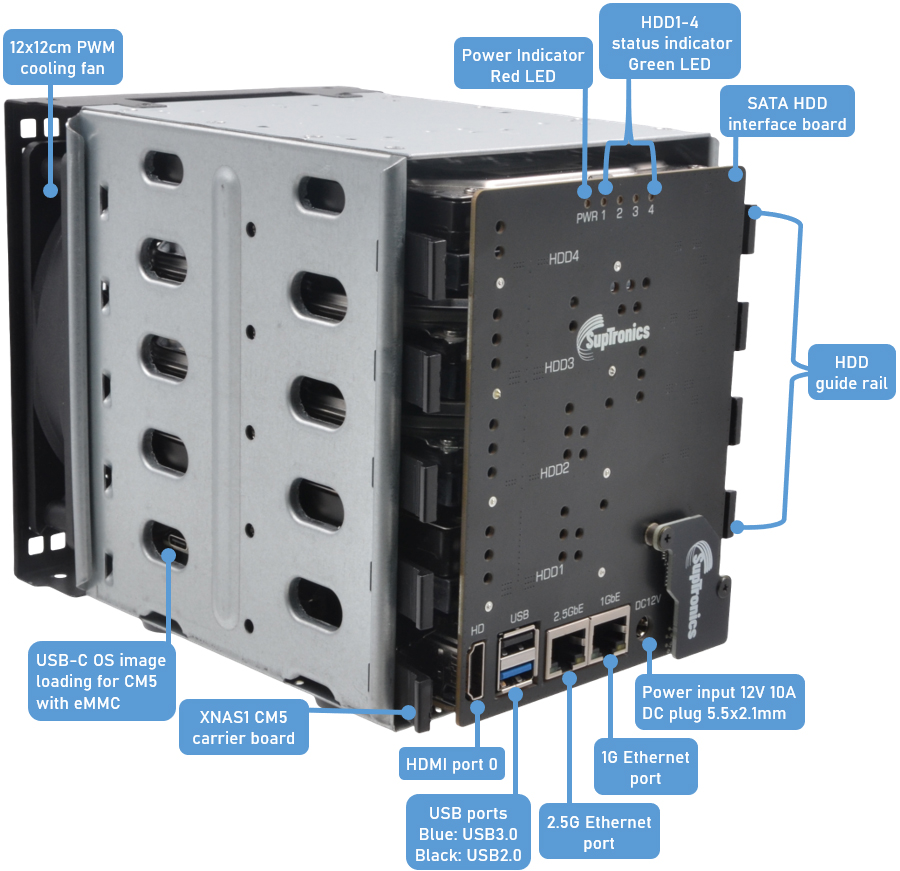

XNAS1 NAS Kit

    2

Raspberry Pi CM5 (CM5 with eMMC recommended)


  3   micro-SD card (≥16GB) x1, not required if eMMC version   4   Raspberry Pi official CM5 cooler
  5   Power supply 12V 10A, DC plug 5.5x2.1mm   6   3.5" SATA HDD × (1–4 pcs)



 - CM5 with eMMC: This version is recommended, as you can load the OS image after assembly.
 - CM5 Lite (without eMMC): For these variants, a microSD card with the OS pre-flashed must be inserted into the carrier board's card socket before assembly.



       hardware installation


**Important Notice**


Unplug the fan cable connector before removing the IO board from the HDD cage.



  • Remove the SATA interface board from the IO board and the HDDs.


  • Remove all HDDs from the HDD cage.

  • Unplug the fan cable connector from the fan connector on the IO board.

Warning: Failure to follow instructions may damage the fan.
Step 1 Protecting from ESD


Grounding protects the components from the static electricity that can be naturally present (electrostatic discharge, ESD).



  • Notice: Risk of damage to the equipment due to electrostatic discharge. Always: Touch the working surface before touching electronics.


  • Ideally: Use ESD protective equipment, such as ESD table mats and grounding cords.

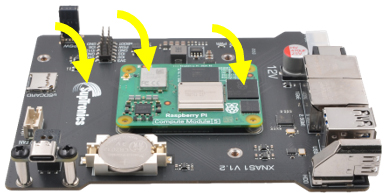

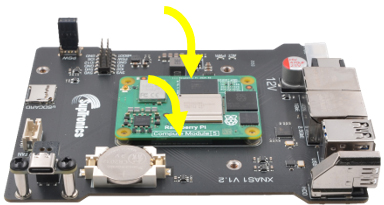

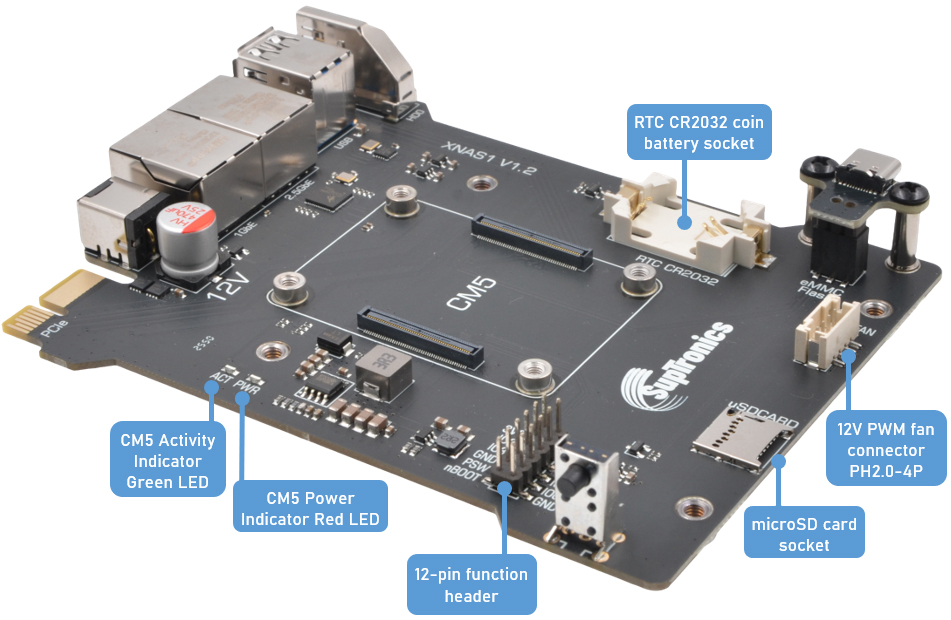

Step 2 Aligh the IO board and CM5


  • Place the board in front of you, the connectors facing to the right.


  • Orient the CM5 as indicated by the arrow.


  • Use the outline of the chips to help find the correct orientation of the CM5.



  • Carefully place the CM5 without force.


  • The CM5 should fall into place slightly when correctly aligned.

  • Confirm the Compute Module is correctly mated by looking at each corner of the IO Board.
Step 3 Installing the CM5


  • Press the CM5 board onto the board-to-board connectors until it clicks into place.


Make sure you press on both sides (the two long edges).


  • This requires quite a bit of force. If you don't hear a loud click, it is most likely not fully seated.

  • Do a visual check to make sure the CM5 is installed correctly: it needs to run parallel to the IO board.
Step 4 Installing the heat sink (requires separate Raspberry Pi CM5 cooler)


  • Please remove the protective white paper from the thermal silicone.


  • Place the Cooler onto Compute Module 5.


  • Align the mounting holes, insert four M2.5 × 8 screws (supplied) upwards from beneath the IO Board, and tighten.

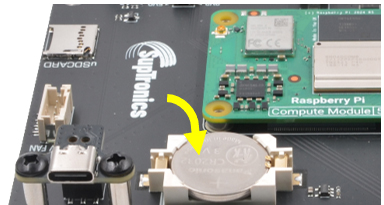

Step 5 Installing the RTC battery


  • Insert the CR2032 coin-cell  battery (making sure that the battery isoriented correctly. Positive side (+) UP).

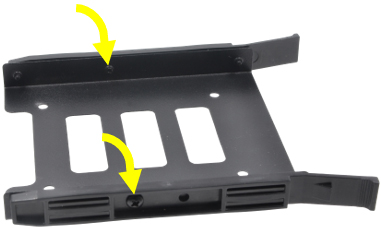

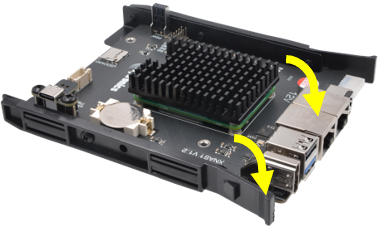

Step 6 Install guide rails on both sides of the board holder


  • Insert the guide rail into the mounting holes on the side of the board holder.



  • Use the two M3 screws to secure it in place.



Step 7 Aligh the IO board and the holder


  • Orient the IO board according to the arrow indicator.

  • Place the IO board into the holder.

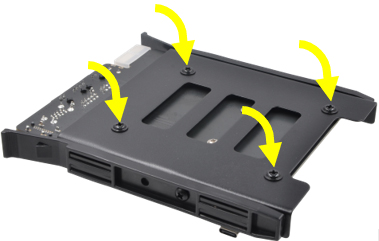

Step 8 Secure the IO board to the holder



  • Hold the board and the holder, then turn it on its side and secure with 4 M3.5 screws.

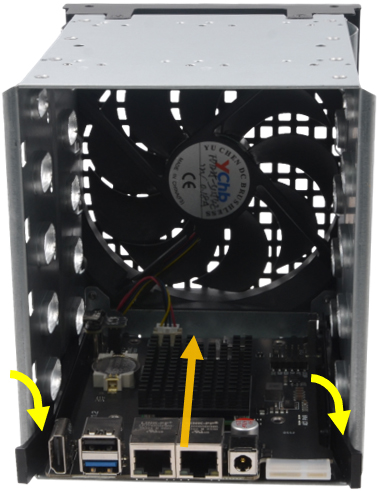

Step 9 Install the IO board holder



  • Hold the board holder in the correct orientation.


  • Carefully push it into the bottom HDD slot until it clicks into place.

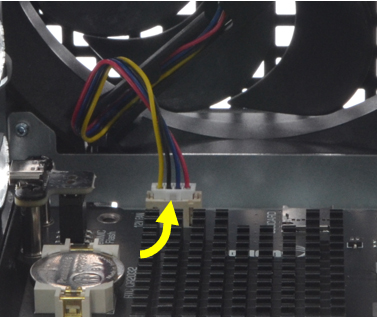

Step 10 Connect the fan cable connector inside HDD cage


  • Adjust the direction of the fan cable connector according to the photo.

  • Plug the fan cable into the female connector on the IO board.

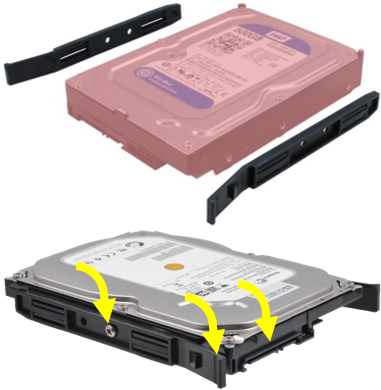

Step 11 Install guide rails on both sides of HDD


  • Insert the guide rail into the mounting holes on the side of the HDD.



  • Use the two 6#-32 screws to secure it in place.

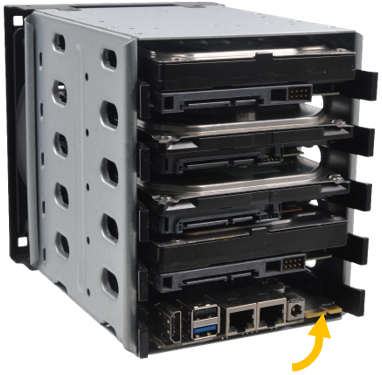

Step 12 Install the HDD



  • Hold the HDD in the correct orientation.


  • Carefully push it into the HDD slot until it clicks into place.

  • Remove the protective cap from the PCIe gold finger.

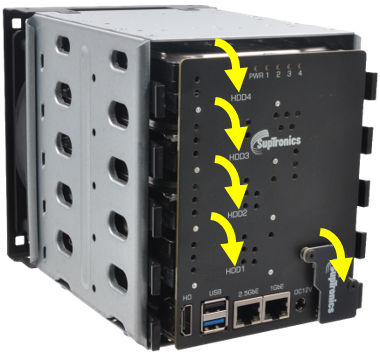

Step 13 Install the SATA HDD interface board


  • Locate the PCIe gold fingers, HDMI port, and HDD SATA connector on the IO board.


  • Note the positions of the PCIe slot, HDMI opening, and HDD SATA male connector on the interface board.

  • Carefully press the areas indicated by the arrow.
