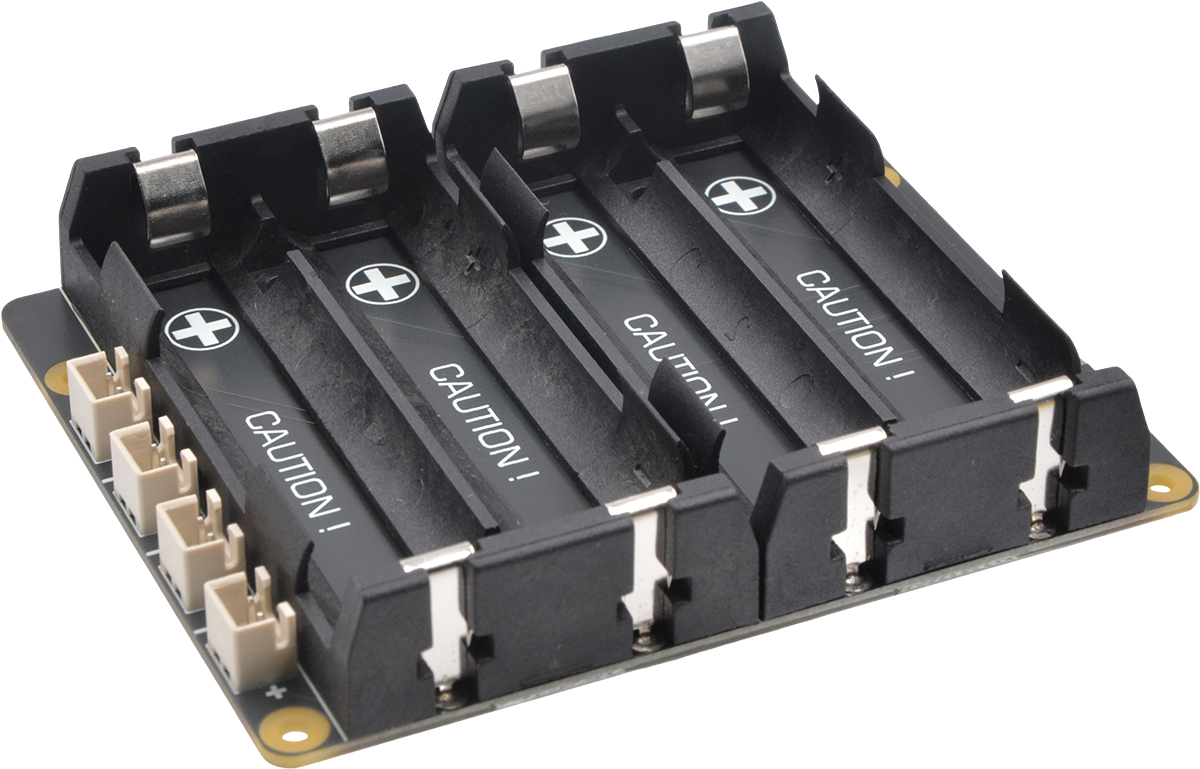

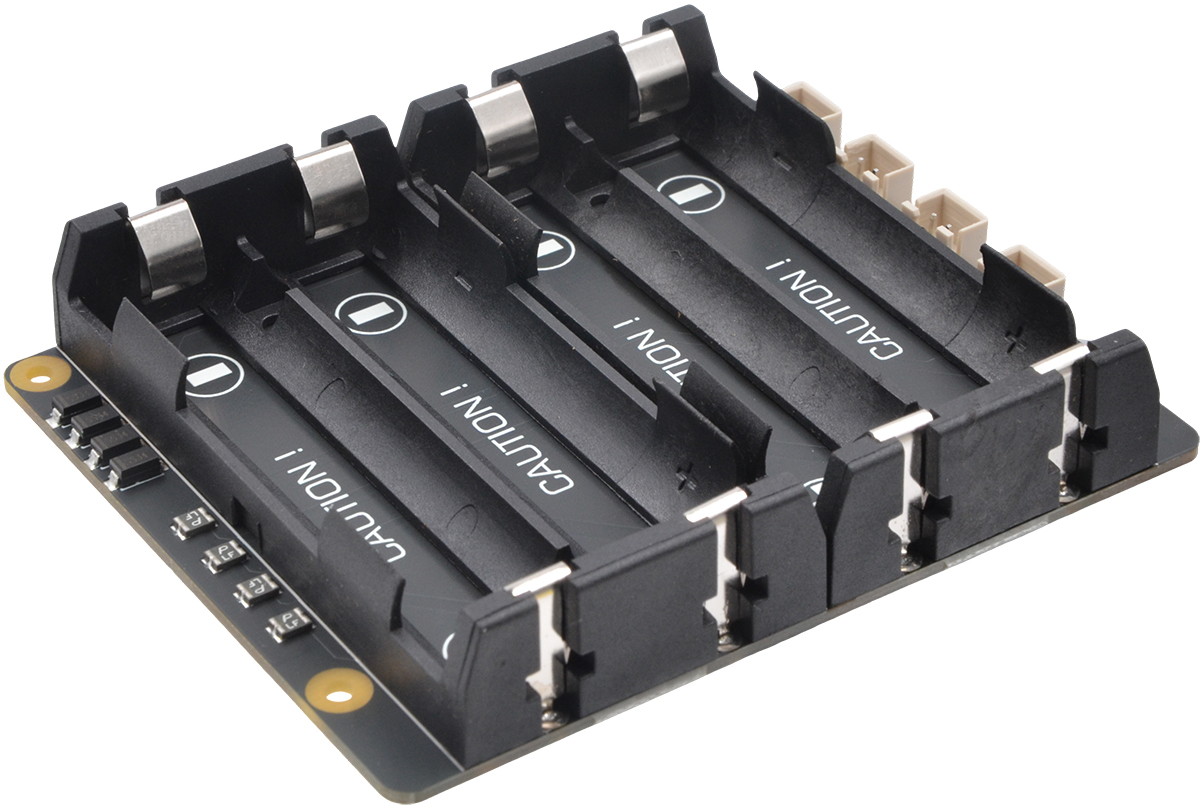

The
X12-A1 is a 4-cell parallel 18650
battery holder designed to accommodate four 18650
batteries. Each cell is protected by a resettable,
ultra-low-resistance fuse to prevent over-discharge.
It features four XH2.54 connectors for easy

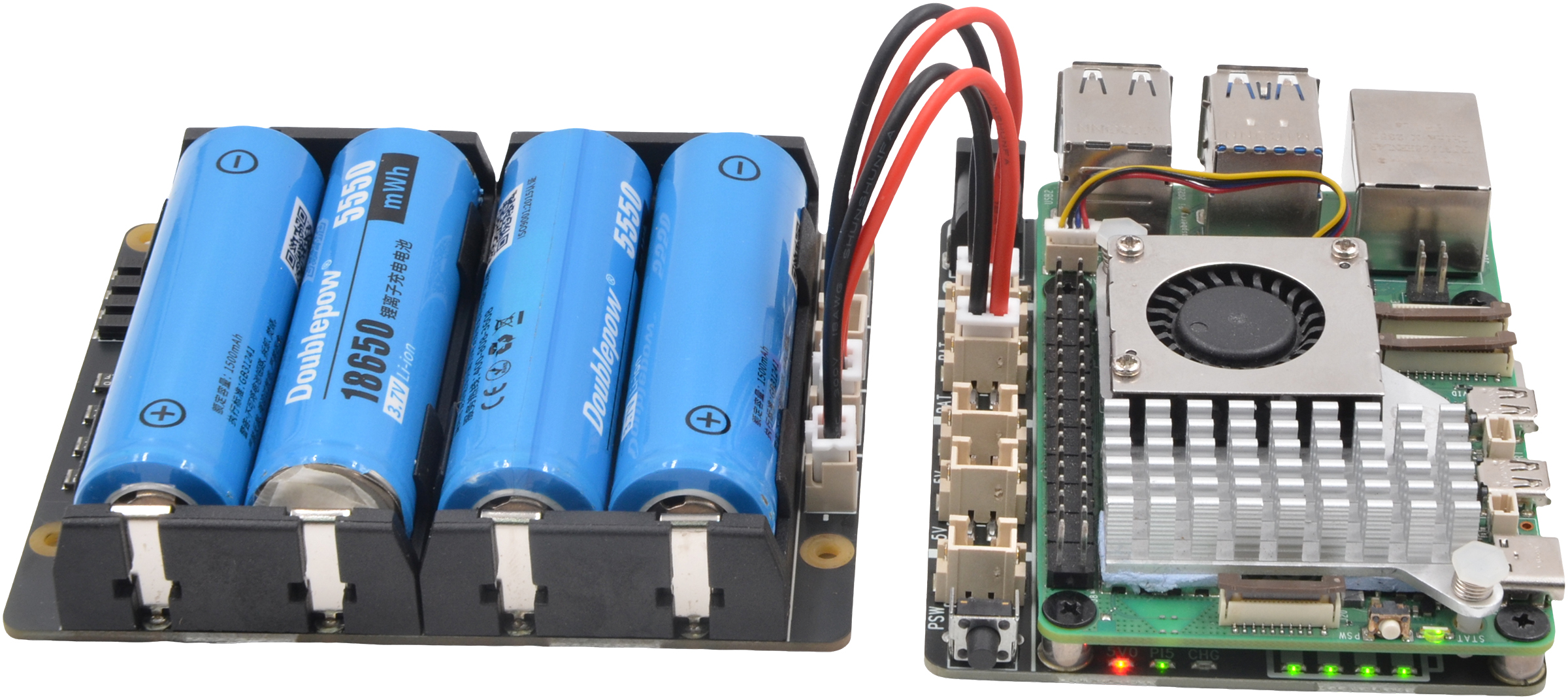

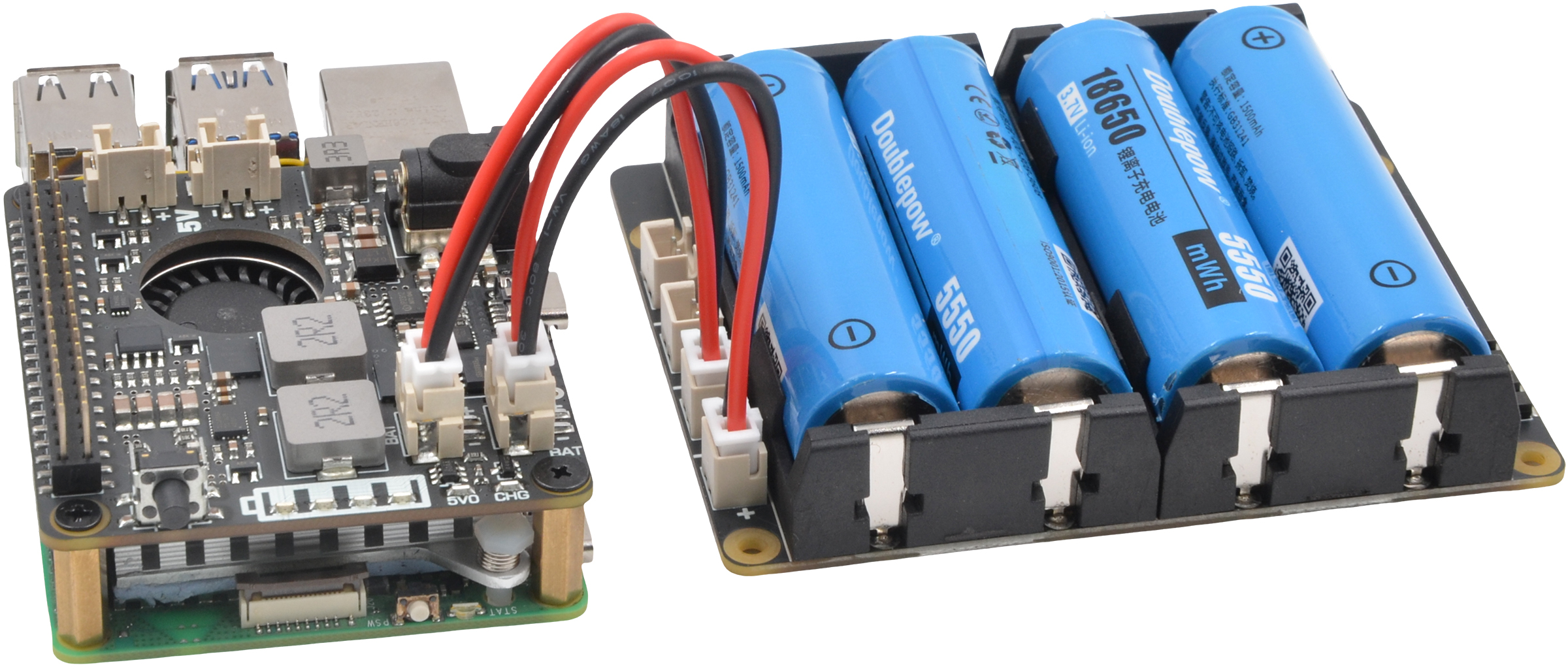

integration with UPS HAT models such as the X1209
and X1203, and supports stackable design for
expanded battery capacity.
|
|
|
| |
|
|
| |
| |
Compatible With
- X1209 UPS HAT Top-Mount
- X1203 UPS HAT Bottom-Mount

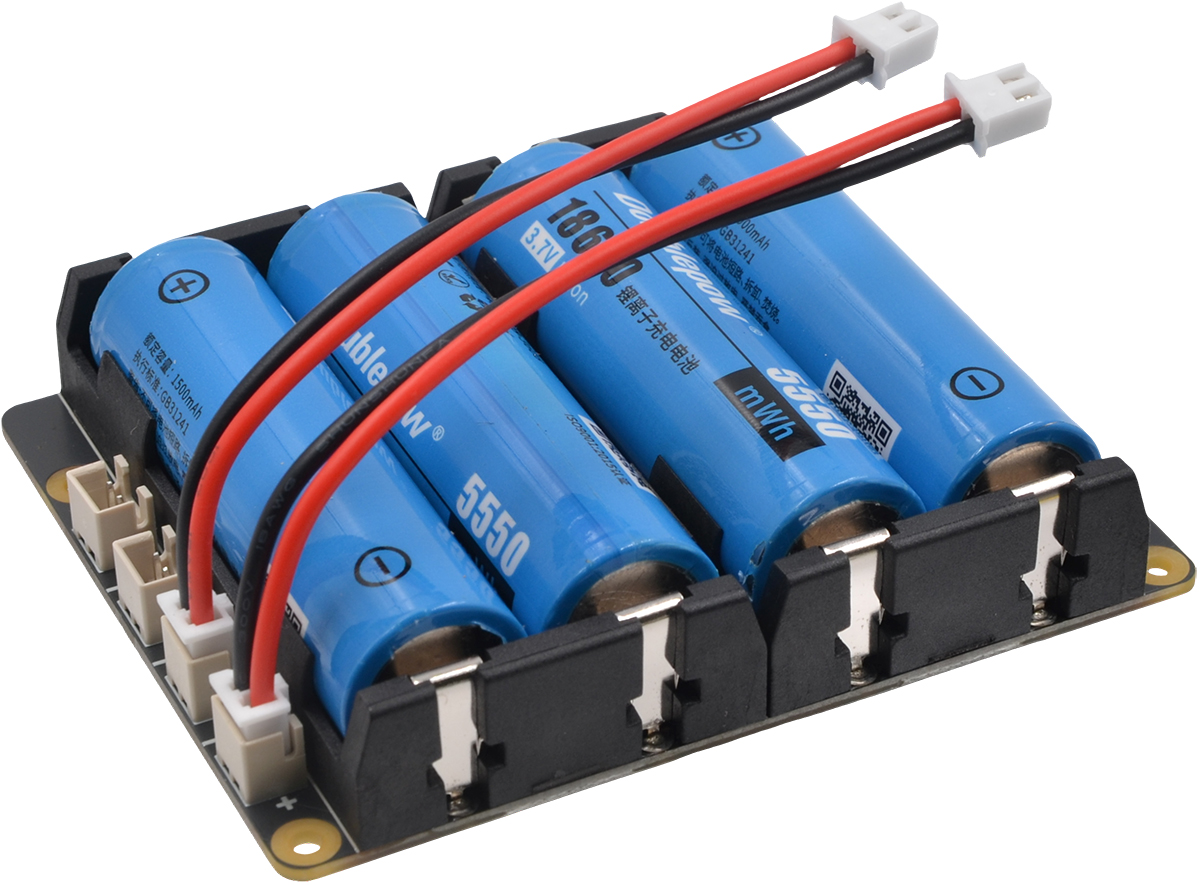

- Holds 4x 18650 batteries in
parallel
- Resettable fuse protection per cell
- 4x XH2.54 connectors included
- Direct compatibility with X1209/X1203 UPS HATs

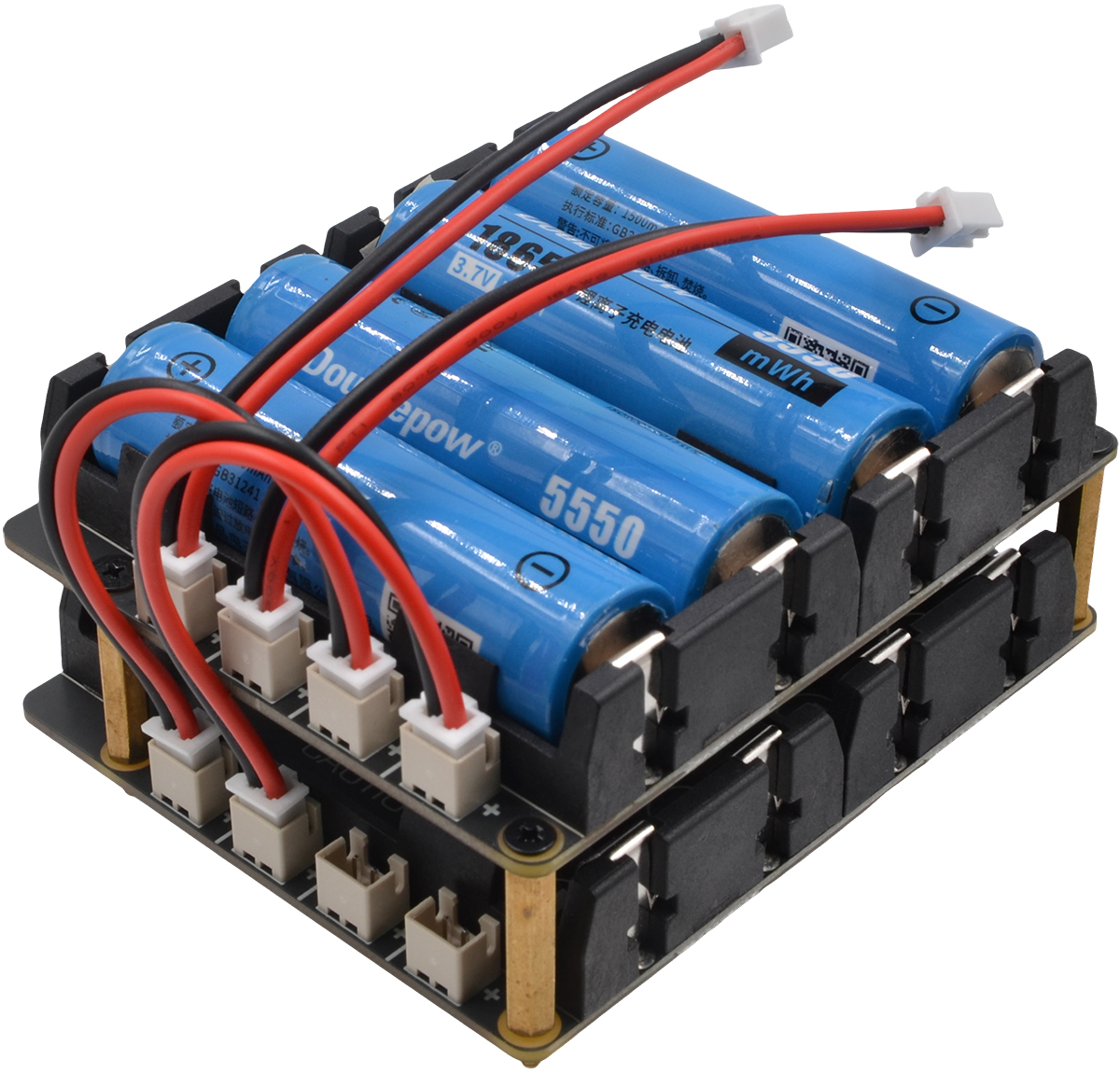

- Stackable for capacity expansion
|
|
| |
| |
Safety
Instructions & warnings |
|
|
| |
| |
|
⚠ |
It is essential to read
and understand these safety instructions and
warnings before charging your batteries.
|
|
⚠
|
Lithium Polymer and
Li-ion batteries are volatile. Failure to
read and follow the instructions below may
result in fire, personal injury, and
damage to property if charged or used
improperly.
|
|
|
⚠ |
Never make a wrong
polarity connection when charging or
discharging battery packs. Always
double-check the polarity of the battery's
connector to ensure that "+" is connected to
"+" and "-" is connected to "-".
|
|
|
⚠ |
Do not mix and use old
batteries with new batteries, or batteries
with different brand names.
|
|
|
⚠ |
Lithium batteries have a
limited cycle life. Please replace old
batteries with new ones when they reach
their service life or when they are two
years old, whichever comes first.
|
|
|
⚠ |
When charging the
Battery Pack, please place the battery in a
fireproof container. Do not leave the UPS
shield on wood material or carpet
unattended.
|
|
|
⚠ |
Keep this product away
from children to ensure their safety.
|
|
|
|
|
|
|
| |
| |
|
Ports & Connectors |
: |
4-cell 18650 battery
socket x1 |
|
|
: |
XH2.54 2-pin Battery
connector in parallel x4 |
|

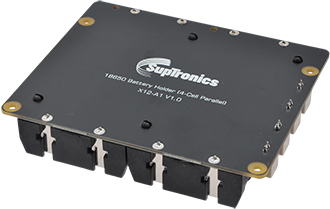

PCB Size |
: |
93.9mm x 77.1mm |
|
|
|
| |
|
|
| |
| |
- X12-A1 18650 battery
holder (4-cell parallel) x1
|
| |
- 2-pin 2.54mm pitch male-to-male cable AWG18
30cm x2 |
| |
- 2-pin 2.54mm pitch male-to-male cable AWG18
10cm x1 - For X12-A1 stackable |
| |
- Spacer M/F 22mm x4 -
For X12-A1 stackable |
| |
- Screw M2.5x5mm x4 - For X12-A1
stackable |
| |
- Screw nut M2.5 x4 - For X12-A1
stackable |
|
| |
|
|
| |
| |
|
- |
DISCLAIMER
This evaluation board/kit is intended for user's
internal development and evaluation purposes only.
It is not a finished product and may not comply with
technical or legal requirements that are applicable
to finished products, including, without limitation,
directives or regulations relating to
electromagnetic compatibility, recycling (WEEE),
FCC, CE or UL. SupTronics is providing this
evaluation board/kit“AS IS”with limited warranties.
The user assumes all responsibility and liability
for handling and use of the evaluation board/kit
including, without limitation, the responsibility to
take any and all appropriate precautions with regard
to electrostatic discharge and other technical
issues. User indemnifies SupTronics from any claim
arising from user's handling or use of this
evaluation board/kit. Except for the limited purpose
of internal development and evaluation as specified
above, no license, express or implied, by estoppel
or otherwise, to any SupTronics intellectual
property right is granted hereunder.
SUPTRONICS SHALL NOT BE LIABLE FOR ANY INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMGES
RELATING TO USE OF THIS EVALUATION BOARD/KIT. |
|
|
| |
