SupTronics Technologies


		X15-POE1 POE+ HAT
		Getting Started - hardware

Home

KVM over IP Switches Raspberry Pi Boards / Kits Network Attached Storage(NAS) SBC Power Supplies

Be Our Distributor Custom Products OEM/ODM What We Do Contact

	Assembly instructions				hardware

Step 1 Protecting from ESD

Grounding protects the components from the static electricity that can be naturally present (electrostatic discharge, ESD).

	Notice: Risk of damage to the equipment due to electrostatic discharge. Always: Touch the working surface before touching electronics.
	Ideally: Use ESD protective equipment, such as ESD table mats and grounding cords.

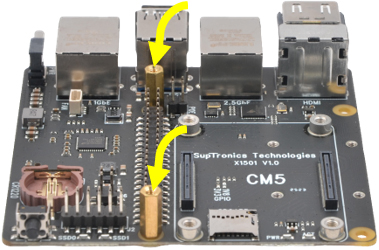

Step 2 lnstall the mounting posts

	Insert an M2.5 screw upward through the bottom mounting hole on the X1500/X1501.
	Thread an M2.5×12mm female-female spacer onto the screw from above and tighten it by hand until finger-tight.

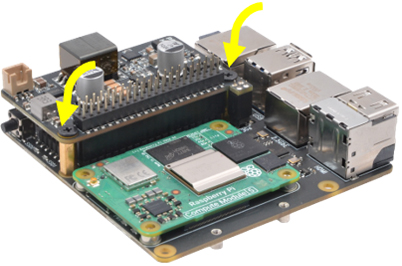

Step 3 Secure the board

	Plugs the POE HAT directly into the IO board's GPIO and PoE pin headers.
	Secure the POE HAT to the spacers with two M2.5x5mm screws.
