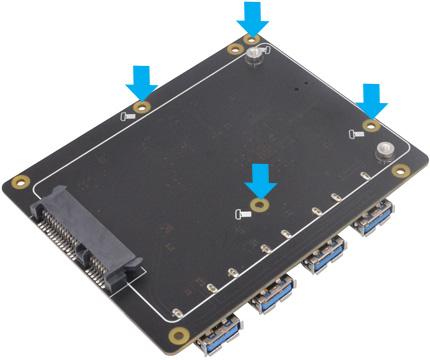

❶ |
Push a screw
(M2.5*6mm) up through
the mounting hole on the underside of the X828 and
screw the spacer (M2.5*13mm)
down until it is hand tight. |
|
|
|

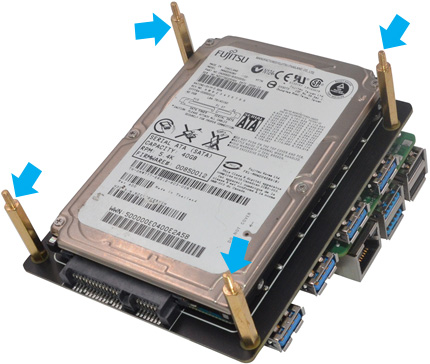

❷ |
Insert your hard disk
into the SATA socket. then press your HDD and
X828 hardly while fastening the screws
(M3*6mm screws).
|
|
 |
|
 |
| |
|
|
|

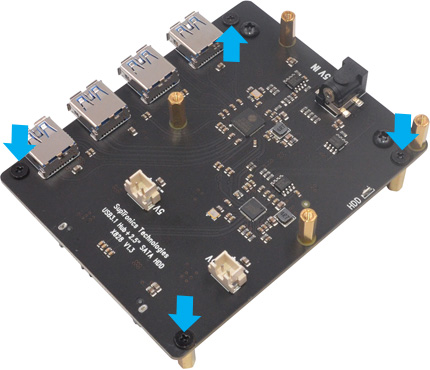

❸ |
Push a screw
(M3*6mm) up through
the mounting hole on the topside of the X828 and
screw the spacer (M3*15mm)
down until it is hand tight. |
 |
|
|

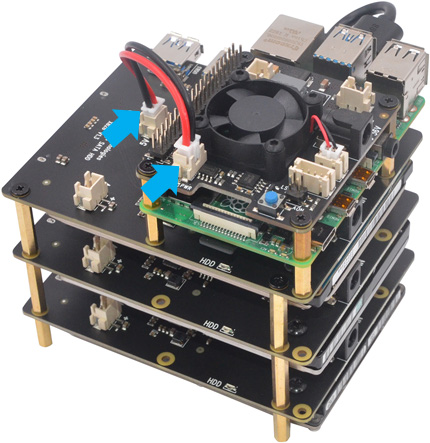

❹ |
a) Place your Raspberry Pi
on top of X828 and screw down
(M2.5*5mm screws + M2.5*11 M/F spacer).
b) Plugs the power daughter board straight into your
Raspberry Pi B's GPIO header and
screw down
(M2.5*5mm)
C) Connect the power cable from power
daughter board to "5V out" power connector on the X828. |
|
| |
 |
| |
|
|
|

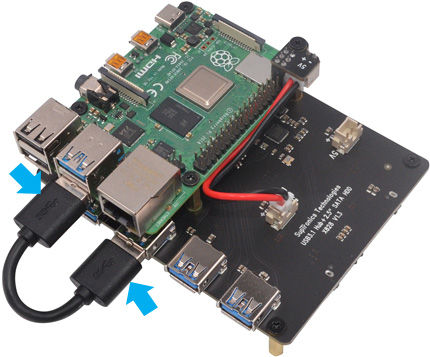

❺ |
Connect the USB3 cable
from Raspberry Pi's USB3.0 port to the "UPPORT" of
X828. |
 |
|
|
❻ |
Optional - X828 is
stackable and supports multiple HDDs working at the same
time
Push a screw
(M2.5*5mm) up through
the mounting hole on the topside of the X828 and screw the
spacer (M2.5*25mm)
down until it is hand tight. |
 |
| |
|
|
|

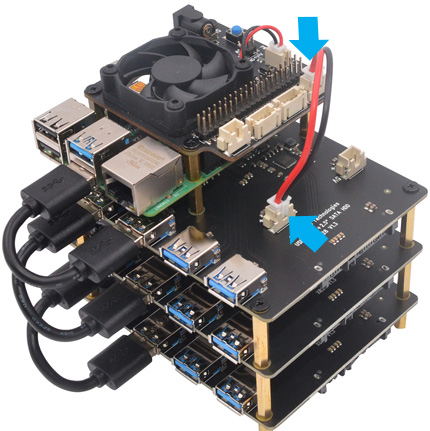

❼ |
a) Repeat step 2 to
install second HDD on second X828
b) Push the second X828 up through
the M/F spacers (M2.5*25mm) on the underside of the X828 and
screw down (Spacer
F/F M2.5*15mm, if add one more
X828 then using spacer M/F M2.5 x25mm) until it is hand tight.
c)
Connect USB3 cable from "USB1" port to next X828, the
"UPPORT". |
 |
|
|
❽ |
Optional -To use with
X735 /
X710 /
X765 power management board
a)
Unscrew screws and spacer on the topside of Raspberry pi
a) Screw the M/F spacer (M2.5*12mm)
down until it is hand
tight |
|
|

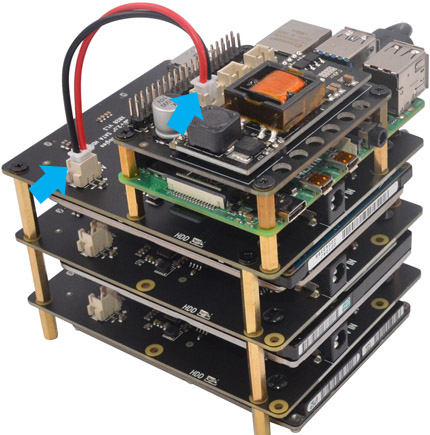

❾ |
Optional -To use with
X735 power mgmt board
a) Plugs the X735 straight into your Raspberry Pi's GPIO
header and screw down
(M2.5*5mm screws)
b) Connect the 2-pin power cable from "5V out"
connector on the X735 to "5V" power socket on the X828
Power adapter
must be connected to the X735 only , not X828 and Raspberry
Pi. |
|
|
|
❿ |
Optional -To use with
X710 power mgmt board
a) Plugs the X710 straight into your Raspberry Pi's GPIO
header and screw down
(M2.5*5mm screws)
b) Connect the 2-pin power cable from "5V out"
connector on the X710 to "5V" power socket on the X828
Power adapter
must be connected to the X710 only , not X828 and Raspberry
Pi. |
|
 |
|
 |
|

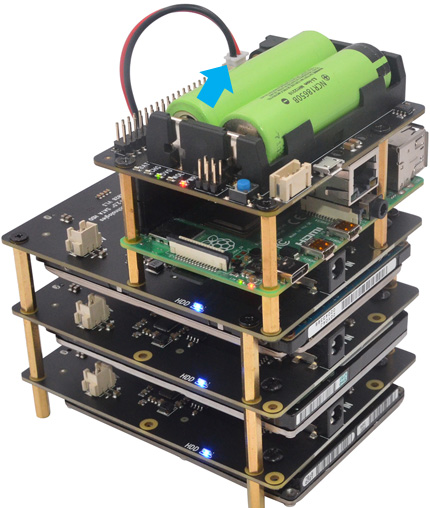

⓫ |
Optional -To use with
X765 power mgmt board
a) Plugs the X765 straight into your Raspberry Pi's GPIO
header and screw down
(M2.5*5mm screws)
b) Connect the 2-pin power cable from "5V out"
connector on the X710 to "5V" power socket on the X828
Don't connect
any power adapter to X828 and Raspberry
Pi when powering over Ethernet. |
 |
|
|
⓬ |
Optional -To use with
X725
power mgmt board
a)
Unscrew screws and spacer on the topside of Raspberry pi
b) Screw the M/F spacer (M2.5*23mm)
down until it is hand
tight
c) Plugs the X725 straight into your Raspberry Pi's GPIO
header and screw down
(M2.5*5mm screws)
b) Connect the 2-pin power cable from "5V out"
connector on the X725 to "5V" power socket on the X828
Power adapter
must be connected to the X725 only , not X828 and Raspberry
Pi
|
 |
| |
|
|
