    Board Assembly    X862

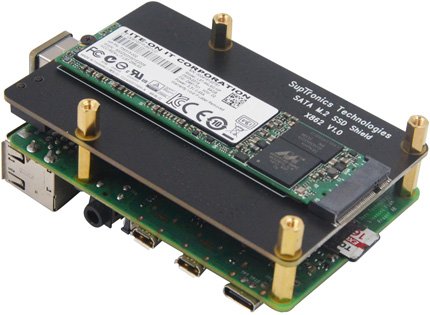

Attach the 12mm F/F spacer to the top of the X862 mounting holes by inserting the 8mm M/F spacers from the bottom of the X862.

a) Insert your M.2 NGFF SATA SSD into the socket.
b) Align the notches on the SSD with the notches in the
     socket, then insert as shown.
c) Screw (M2*6mm)  the SSD into place.



Attach the Rpi to the X862's spacers and secure in place using the M2.5 screws.

Plugs the USB jumper into the Rpi's and X862's USB3 ports


Optional -To use with X735 / X710 / X765 power mgmt board

a) Unscrew 4 screws and spacer on the topside of Rpi
b) Screw the M/F spacer (M2.5*12mm) down until it is hand
    tight

  Optional -To use with X735 power mgmt board

Plugs the X735 straight into your Raspberry Pi's GPIO header and screw down (M2.5*5mm screws)
Power adapter must be connected to the X735 only , not Raspberry Pi and X862.


Optional -To use with X710 power mgmt board

Plugs the X710 straight into your Raspberry Pi's GPIO header and screw down (M2.5*5mm screws)
Power adapter must be connected to the X710 only , not Raspberry Pi and X862.

Optional -To use with X765 power mgmt board

Plugs the X765 straight into your Raspberry Pi's GPIO header and screw down (M2.5*5mm screws)
Don't connect any power adapter to Raspberry Pi and X862 when powering over Ethernet.


Optional -To use with X728 power mgmt board
a) Unscrew screws and spacer on the topside of Raspberry pi
b) Screw the M/F spacer (M2.5*23mm) down until it is hand
    tight
c) Plugs the X728 straight into your Raspberry Pi's GPIO
    header and screw down (M2.5*5mm screws)
Power adapter must be connected to the X728 only , not Raspberry Pi and X862.
