❶ |

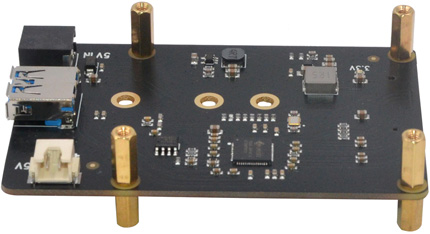

Attach the 12mm F/F
spacer to the top of the X857 mounting holes by
inserting the 8mm M/F spacers from the bottom of
the X857. |
|
|
|
❷ |
a) Insert your M.2 NVME
SSD into the M.2 socket.
b) Align the notches on the SSD with the notches in
the M.2
socket, then insert as shown.
c) Screw
(M2*4mm) the
SSD into place. |
|
 |
|
 |
| |
|
|
|
❸ |

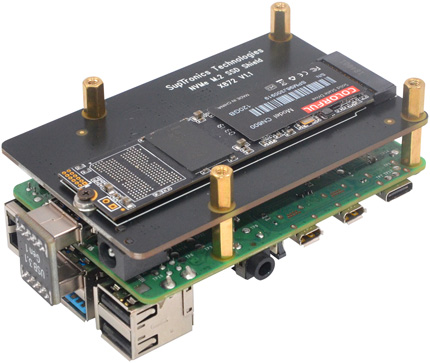

Attach the Rpi to the
X872's spacers and secure in place using the M2.5
screws. |
|
|
|
❹ |
Plugs the USB jumper
into the Rpi's and X872's
USB3 ports |
|
 |
|
|
| |
|
|
|
❺ |
Optional -To use with
X735 /
X710 /
X765 power
mgmt board
a) Unscrew 4 screws and spacer on
the topside of Rpi
b) Screw the M/F spacer
(M2.5*12mm) down until it is
hand
tight |
 |
|
|
❻ |
Optional -To use with
X735 power
mgmt board
Plugs the X735 straight into your Raspberry Pi's GPIO header and screw down (M2.5*5mm
screws)
Power adapter must be
connected to the X735 only , not Raspberry Pi and X872. |
 |
| |
|
|
|
❼ |
Optional -To use with
X710 power mgmt board
Plugs the X710 straight into your Raspberry Pi's GPIO header and screw down (M2.5*5mm
screws)
Power adapter must be
connected to the X710 only , not Raspberry Pi and X872. |
|
|
|
❽ |
Optional -To use with
X765
power mgmt board
Plugs the X765 straight into your Raspberry Pi's
GPIO header and screw down
(M2.5*5mm screws)
Don't connect
any power adapter to Raspberry Pi and X872 when
powering over Ethernet. |
|
 |
|
 |
| |
|
|
|
❾ |
Optional -To use with
X725
power mgmt board
a) Unscrew screws and spacer on the topside of
Raspberry pi
b) Screw the M/F spacer
(M2.5*23mm) down
until it is hand
tight
c) Plugs the X725 straight
into your Raspberry Pi's GPIO
header and screw down
(M2.5*5mm screws)
Power adapter must be
connected to the X725 only , not Raspberry Pi and X872. |
|
|
|
 |
|
|
