	X1208 V1.0		ACTIVE	hardware		software

Product Overview

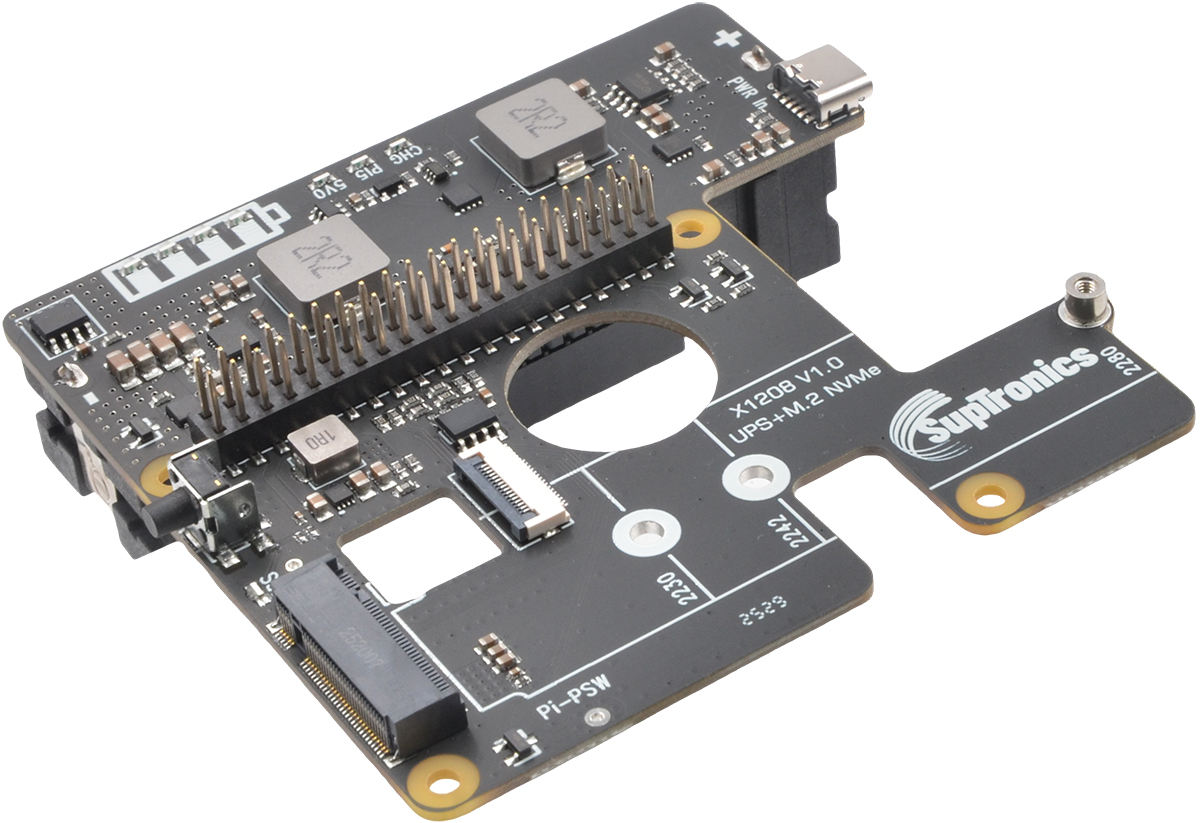

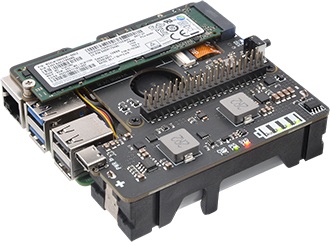

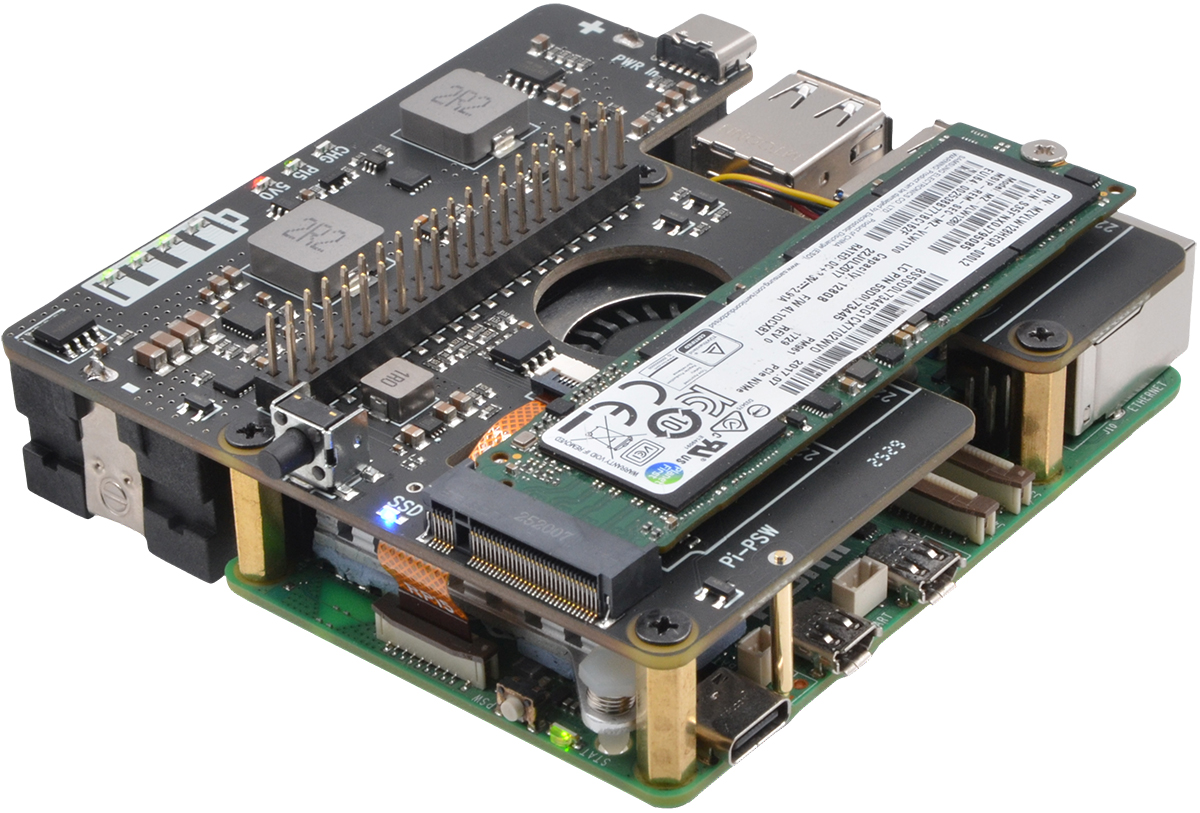

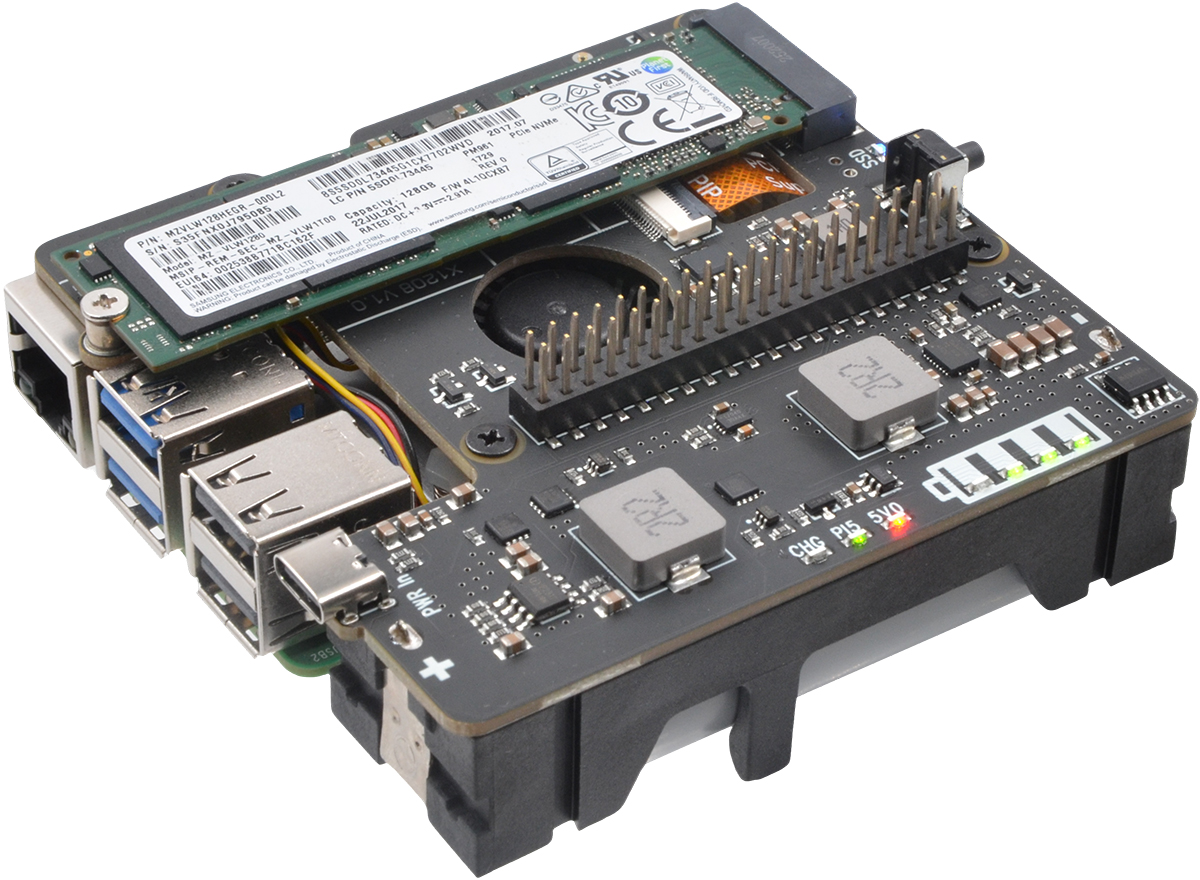

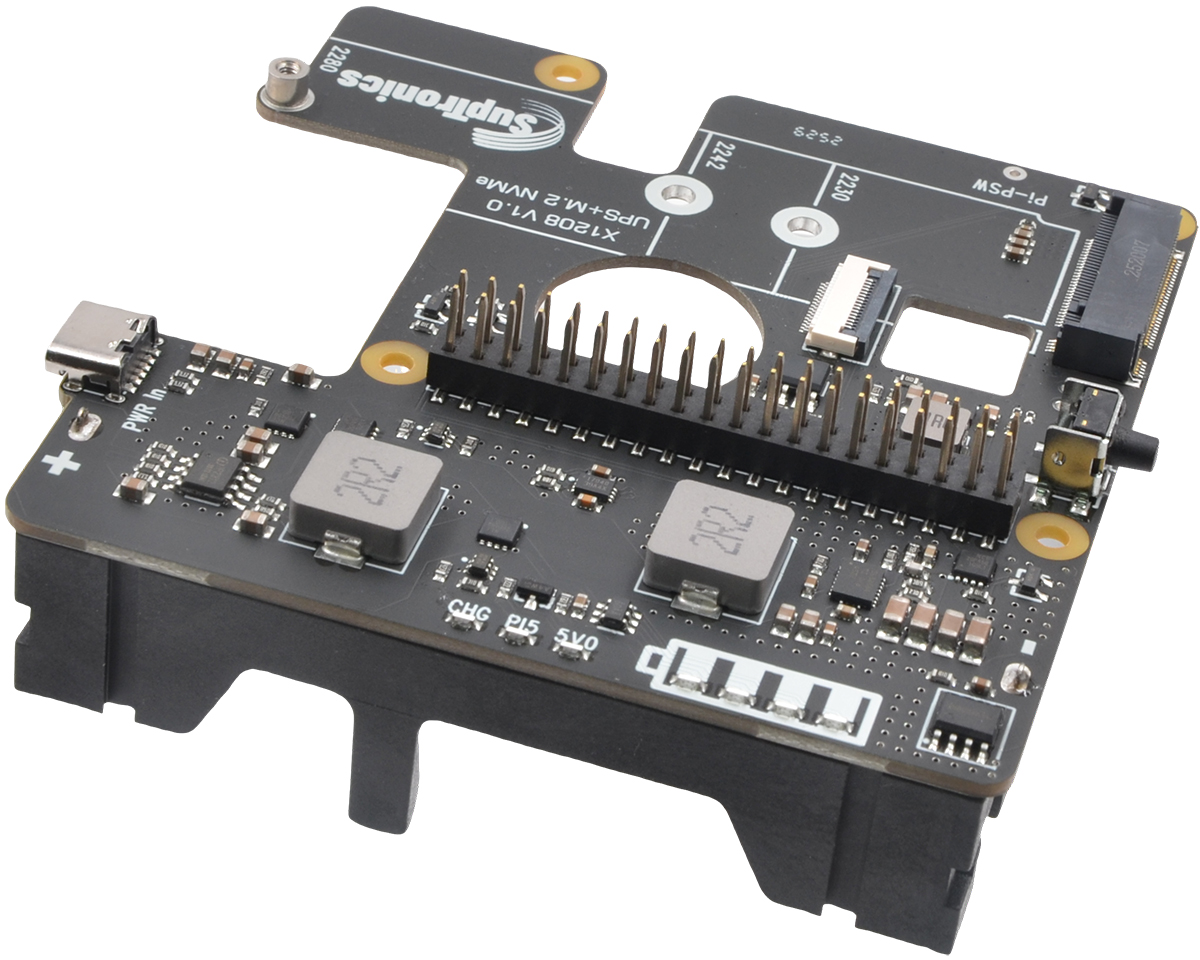

The X1208 UPS+POE Shield is engineered to provide the Raspberry Pi 5 with both a reliable power source and enhanced storage. It features an integrated M.2 NVMe SSD slot, ensuring robust data backup even during a power loss. This powerful combination safeguards valuable data, boosts system reliability, and guarantees continuous operation.

The X1208 delivers a stable 5.1V/5A backup power supply, enabling uninterrupted performance for demanding setups -from intensive applications to multiple peripherals. Its advanced power management system intelligently monitors the Pi's status, automatically cutting power after shutdown to optimize battery life with ultra-low standby consumption. The board ensures seamless power switching during outages or adapter failures and supports convenient features like auto power-on and AC power loss detection.

Product Features

Compatible With
- Raspberry Pi 5 Model B

UPS Output:
- Built for continuous, long-lasting operation -providing unwavering power for always-on Raspberry Pi systems
- Supports a maximum current output of 5.1V 5000mA, suitable for most Raspberry Pi applications
- Integrated Advanced Power MOSFET with an equivalent of 7mΩ RDS(ON) to minimize power loss
- Power the Pi directly through the 40-pin header, eliminating the need for cables and soldering

Battery Charging:
- Supports battery charging with a capacity of 1500mA
- Battery charging control can be managed via GPIO
- Provides protection against battery overcurrent and overvoltage
- Built-in protection against reverse connection of battery cells
- Integrated Maxim's fuel-gauge systems for reading battery voltage and percentage over i2c
- On-board LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%

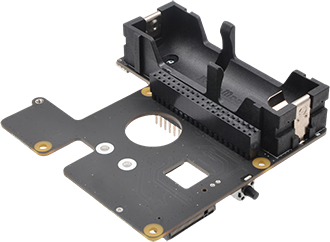

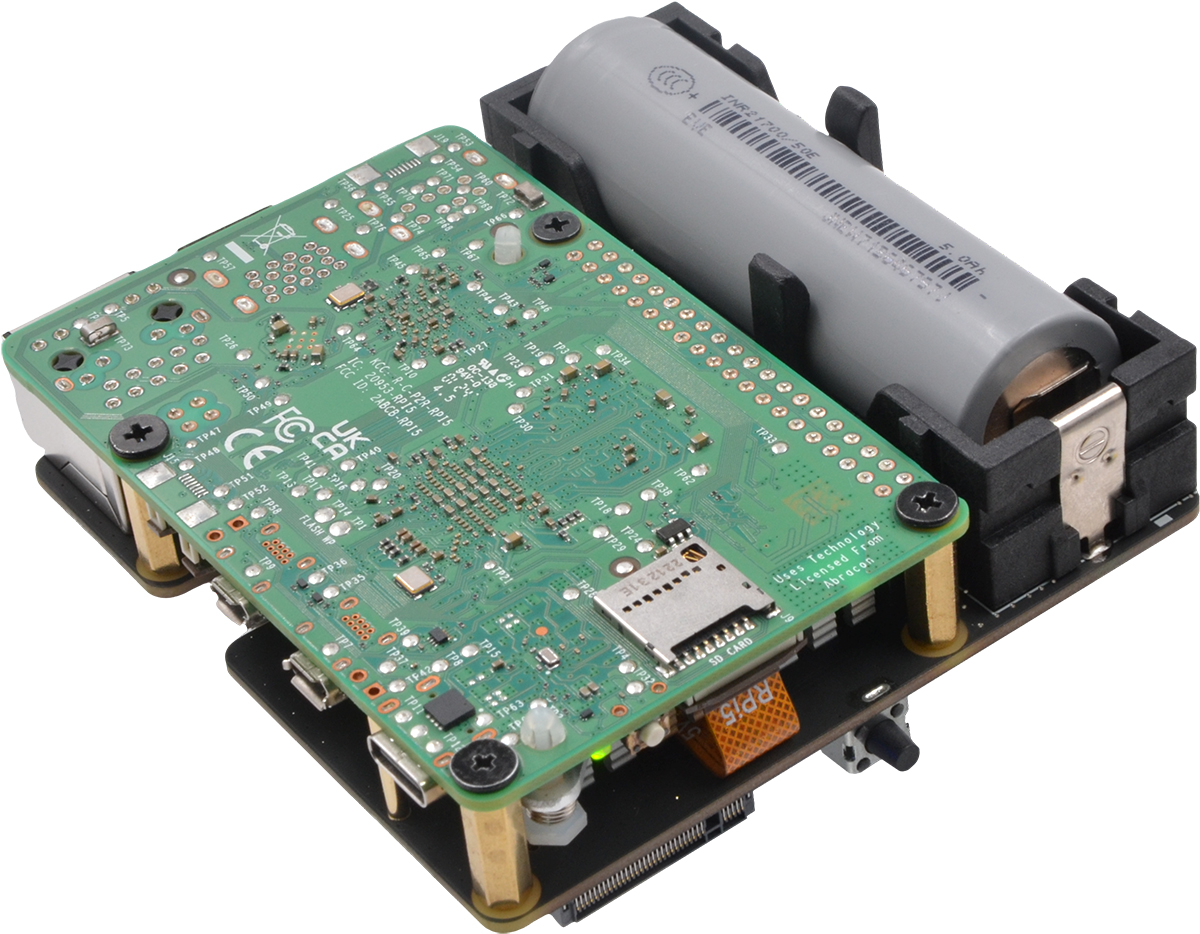

- Features a single 21700 battery holder, supporting battery of up to 5000mAh

Power Input:

- Powered through the USB-C socket, eliminating the need to change your power adapter

Enhanced Power Management:
- Seamless power switching between backup power and power adapter
- On-board push button performs the same actions as the Pi's power button
- Automatically cuts off power when the Pi is shut down
- On-board LED indicates power status and Pi detection
- AC power loss and power adapter failure detection via GPIO
- Auto power-on when power is applied or restored
- Automatic safe shutdown when battery voltage is low (programmable)
- Ultra-low standby power consumption to maximize battery life
- Advanced system power-path management to minimize frequent charging and discharging of batteries

M.2 M key NVMe socket
- Supports high-capacity M.2 NVMe solid-state drives up to 4TB
- Accommodates various M.2 NVMe SSD form factors, including 2280, 2242, and 2230

- Supports operating system booting from your SSD
- Offers fast data transfer speeds with PCIe 2.0 5Gbps / PCIe 3.0 8Gbps
- Does not compromise cooling performance and is fully compatible with the official active cooler
- Features a blue LED indicator that displays power and drive status
- High-efficiency converter delivers 3.5A to your SSD

Compatible Accessories

- X1100 USB3 to SATA 2.5 HDD/SSD shield for Pi 5

- Other add-on boards that do not use the PCIe interface are attached to the bottom of the Raspberry Pi.

Safety Instructions & warnings

⚠	The default charging current is set to 1.5A and charge cut-off voltage is 4.23V. before connecting your battery to the UPS board, Please carefully confirm the maximum charging current and voltage, exceeding the upper limit of the charging specification that the battery can withstand will not only cause adverse reactions, but may also cause irreversible damage.
⚠	It is essential to read and understand these safety instructions and warnings before charging your batteries.
⚠	Lithium Polymer and Li-ion batteries are volatile. Failure to read and follow the instructions below may result in fire, personal injury, and damage to property if charged or used improperly.
⚠	Never make a wrong polarity connection when charging or discharging battery packs. Always double-check the polarity of the battery's connector to ensure that "+" is connected to "+" and "-" is connected to "-".
⚠	Do not mix and use old batteries with new batteries, or batteries with different brand names.
⚠	Lithium batteries have a limited cycle life. Please replace old batteries with new ones when they reach their service life or when they are two years old, whichever comes first.
⚠	When charging the Battery Pack, please place the battery in a fireproof container. Do not leave the UPS shield on wood material or carpet unattended.
⚠	Keep the UPS shield away from children to ensure their safety.

Technical Specification

Power input	:	5Vdc 5A via USB-C (Input current below 5A may cause improper operation.)
UPS output	:	5.1V ±5% Max 5A
Battery charging current	:	1.5A
Terminal Battery Voltage	:	4.23V
Battery Recharge Threshold	:	4.1V
Ports & Connectors	:	USB-C power in connector x1
	:	1-cell 21700 battery connector x1
	:	SSD socket - M.2 KEY-M 67P x1
	:	40-pin extended GPIO header x1
PCB Size	:	86.5mm x 84.5mm

Package Contents

	- X1208 V1.0 UPS+NVMe board x1
	- PCIe FFC cable 40mm x2
	- Spacer M2.5 F/F 13.5mm x4
	- Screw Kit x1
	- Pogo pin x1 (For connecting to the Pi 5 PSW through hole)

Important Notes

-	Do not apply power to your Raspberry Pi via the Type-C USB socket.
-	Compatible with unprotected 21700 battery only (Max. length: 70.3 mm).
-	DISCLAIMER This evaluation board/kit is intended for user's internal development and evaluation purposes only. It is not a finished product and may not comply with technical or legal requirements that are applicable to finished products, including, without limitation, directives or regulations relating to electromagnetic compatibility, recycling (WEEE), FCC, CE or UL. SupTronics is providing this evaluation board/kit“AS IS”with limited warranties. The user assumes all responsibility and liability for handling and use of the evaluation board/kit including, without limitation, the responsibility to take any and all appropriate precautions with regard to electrostatic discharge and other technical issues. User indemnifies SupTronics from any claim arising from user's handling or use of this evaluation board/kit. Except for the limited purpose of internal development and evaluation as specified above, no license, express or implied, by estoppel or otherwise, to any SupTronics intellectual property right is granted hereunder. SUPTRONICS SHALL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMGES RELATING TO USE OF THIS EVALUATION BOARD/KIT.
