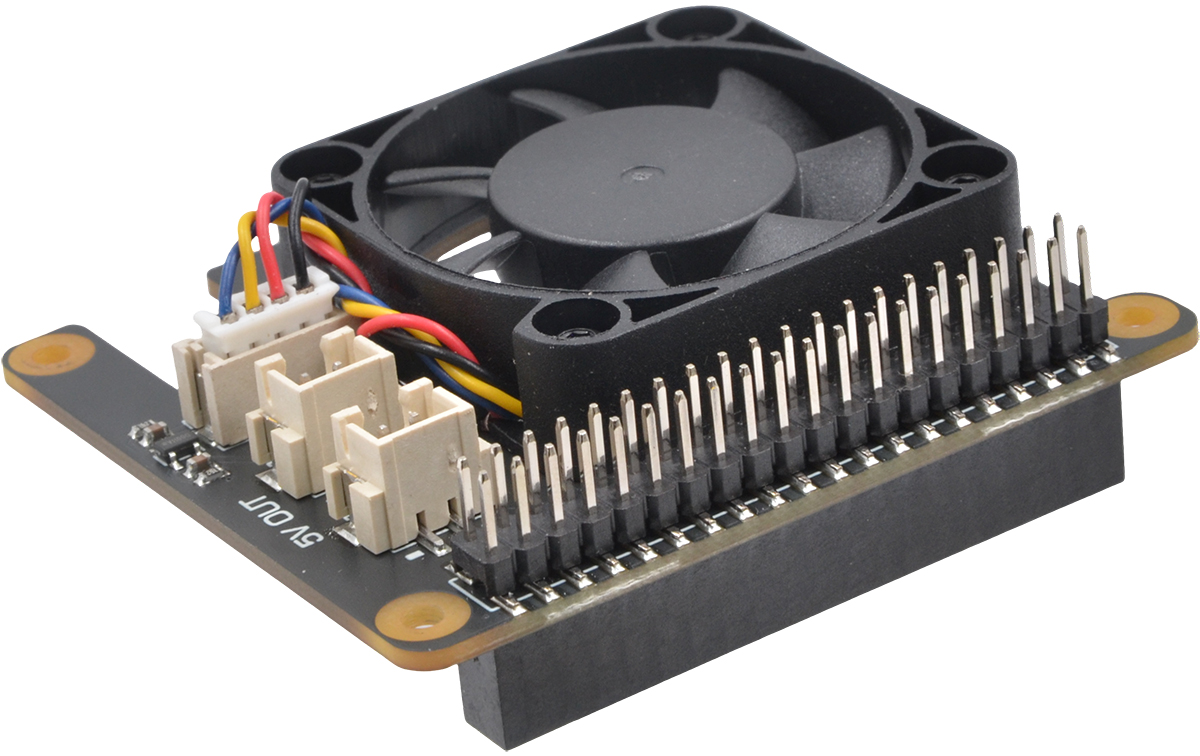

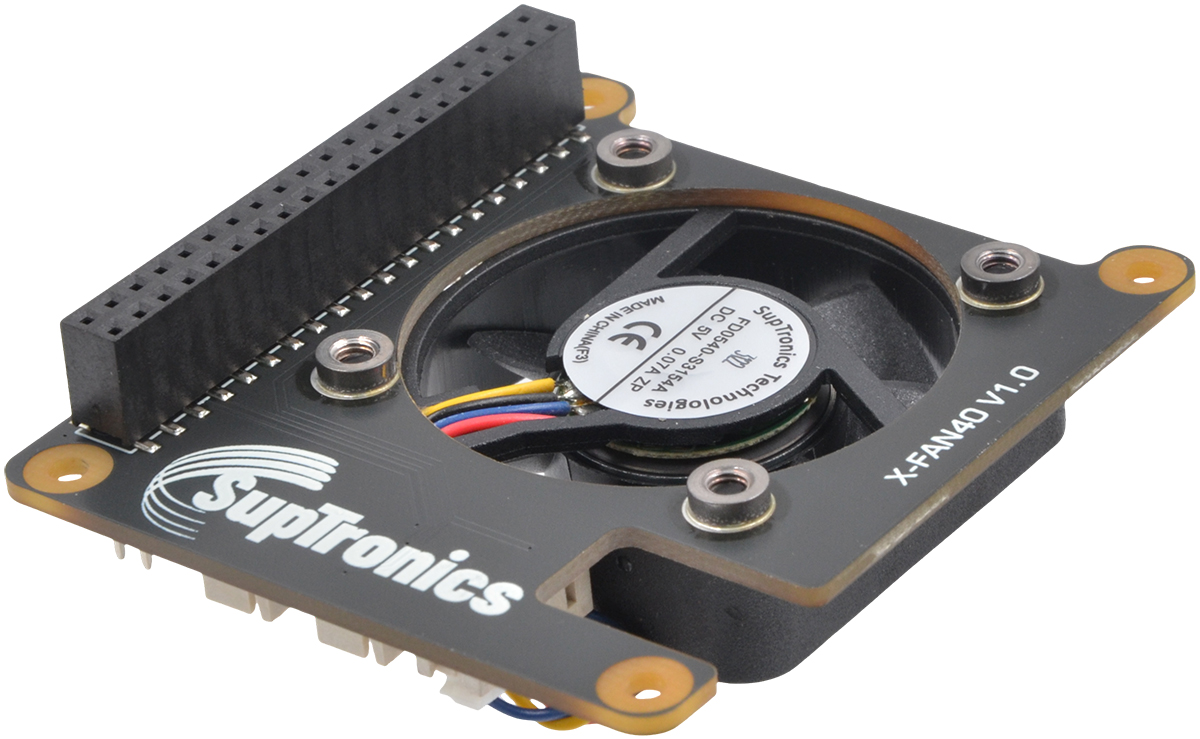

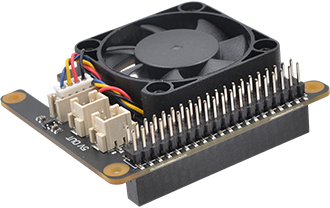

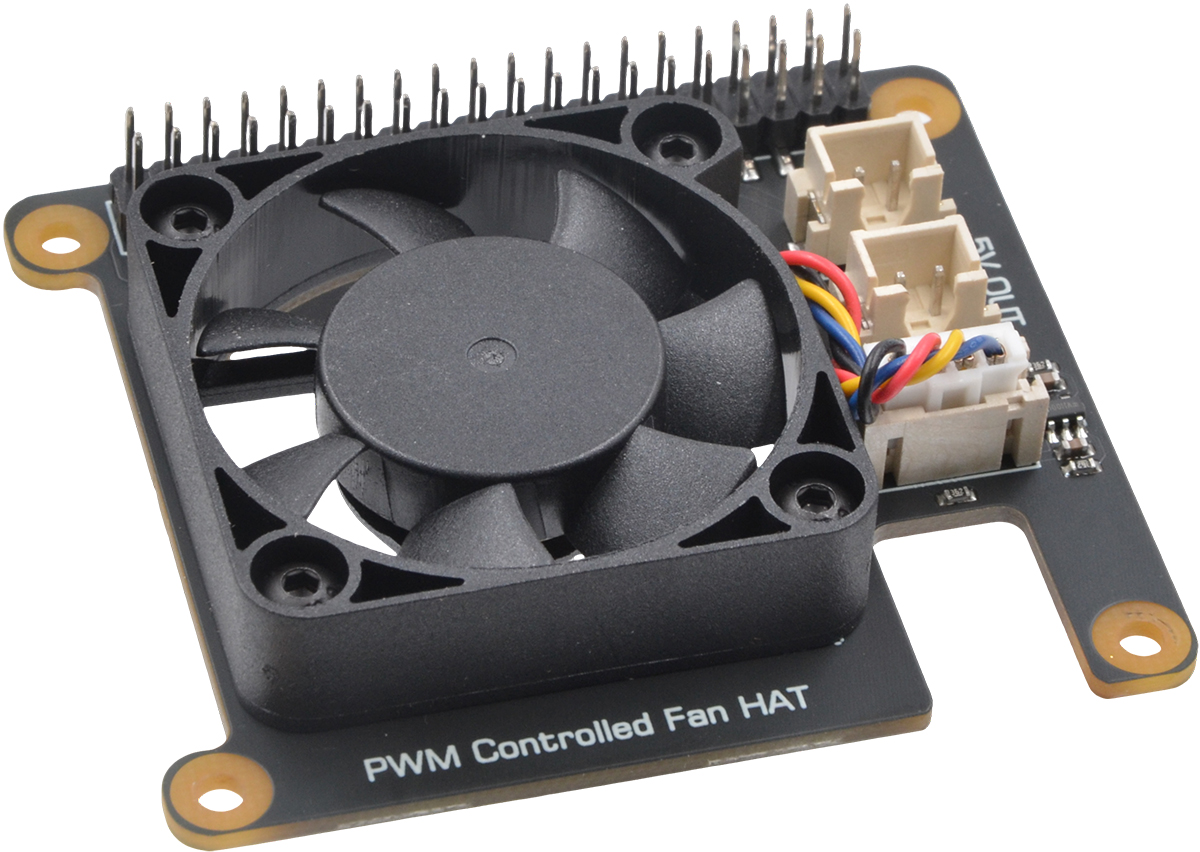

The
X-FAN40 is a PWM fan HAT designed
for active cooling of M.2 devices or dual cooling on
the Raspberry Pi 5. It integrates seamlessly with
the X1001-Max, X1004, and similar NVMe
expansion boards
while remaining compatible with standard Pi cooling
solutions.
Its 40mm PWM fan delivers up to 6.01 CFM
- over five times the airflow of the official
Pi active cooler
- providing reliable thermal management for
sustained high-load operations. It is the ideal
cooling solution for power-intensive devices like AI
accelerator cards and high-performance SSDs.
|
|
|
| |
|
|
| |
| |
|
ü |
Dual-Cooling Versatility:
Dedicated cooling for M.2 devices or
supplemental cooling for Raspberry Pi 5. |
|
|
ü |
Seamless Compatibility:
Designed to fit perfectly with
X1001-Max/X1004 NVMe expansion boards. |
|
|
ü |
High-Performance Airflow:
40mm PWM fan delivers
6.01 CFM – over 5x the airflow of the
official Pi active cooler. |
|
|
ü |
Sustained
Performance: Maintains stable
temperatures under continuous high load.
|
|
|
ü |
Built for Demanding Workloads:
Ideal cooling solution for power-intensive
applications, including AI accelerator cards
and high-performance SSDs.
|
|
|
ü |

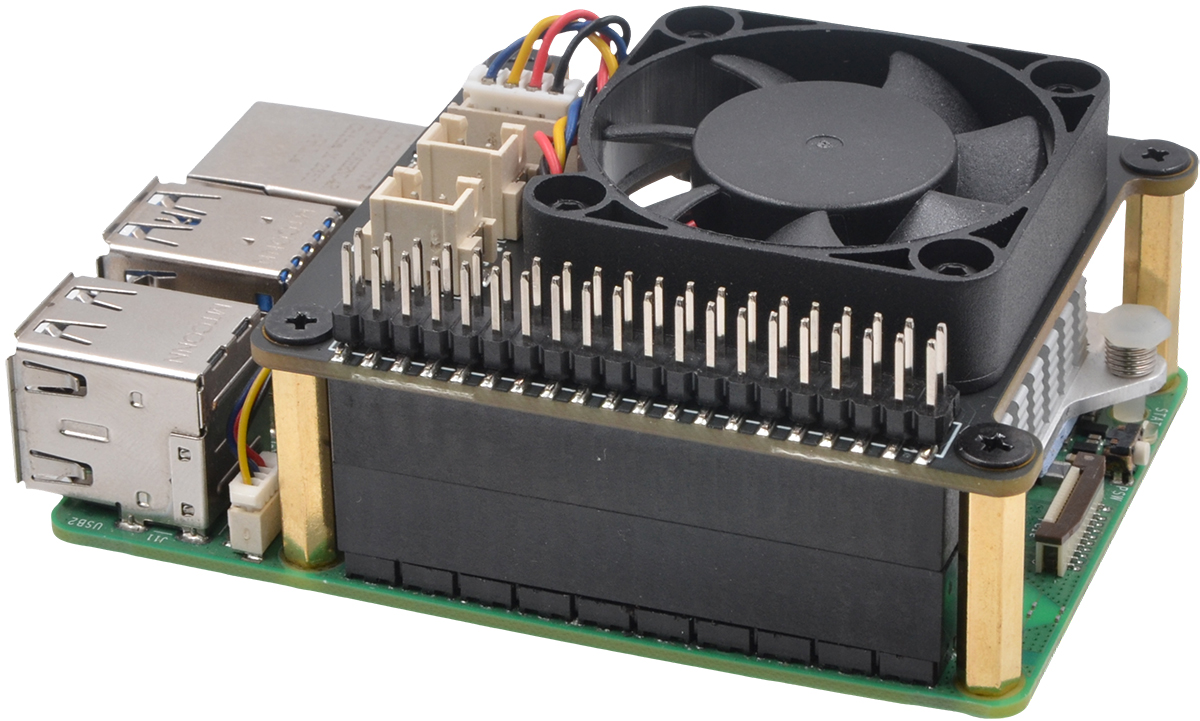

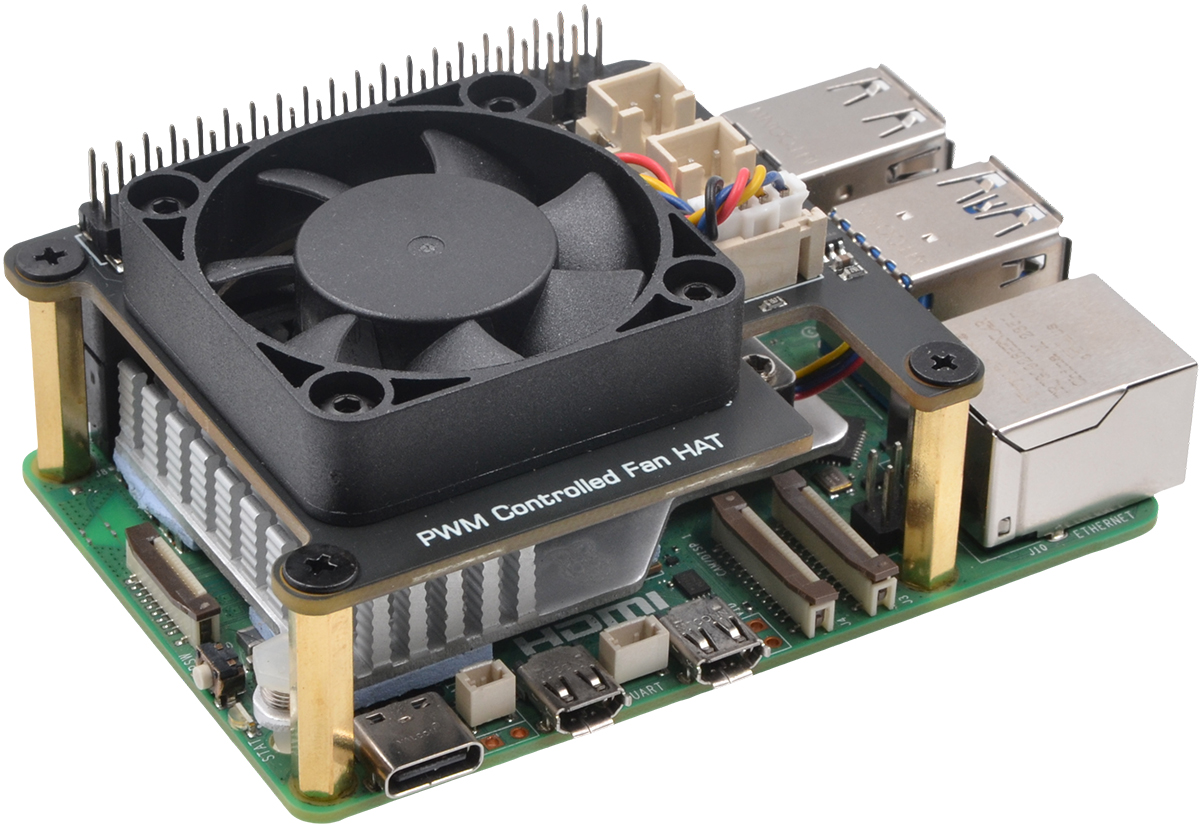

Stackable
Top-Mount Form: Mounts on top of
the M.2 HAT or Pi 5, allowing seamless
stacking with other HATs. |
|
|
ü |

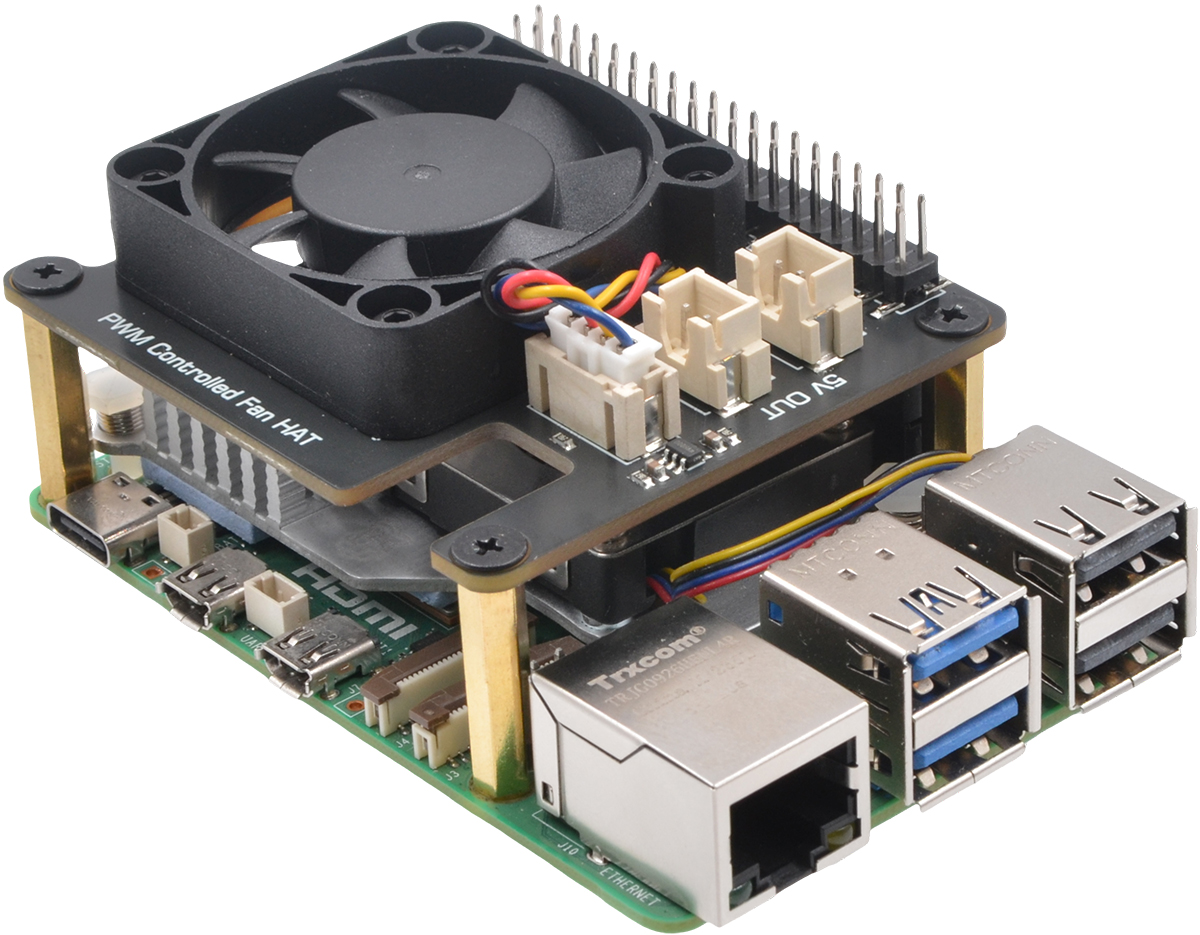

XH2.54 Power Output -
Equipped with 5V power output connectors for
expanded functionality. |
|
|
|
|
|
|
|
| |
| |
|
Operating voltage: |
|
5V DC (4.5 – 5.5V)
supplied via four-pin fan header on a
carrier board |
|
Start voltage: |
|
≥ 3.5V |
|
Power consumption: |
|
0.35W |
|
Rated current: |
|
0.07A ± 0.02A |
|
Fan speed control: |
|
Pulse width modulation
control with tachometer |
|
Maximum fan speed: |
|
5000 RPM ± 10% |
|
Maximum airflow: |
|
6.01 CFM |
|
Noise: |
|
24.3 dBA |
|
PCB dimensions: |
|
65×57mm |
|
|
| |
|
|
| |
| |
- X-FAN40 V1.0 PWM
Controlled Fan HAT x1
|
| |
- Spacer M/F M2.5x12mm x4 |
| |
- Spacer F/F M2.5x20mm x4 |
| |
- Screw M2.5x5mm x8 |
|
| |
