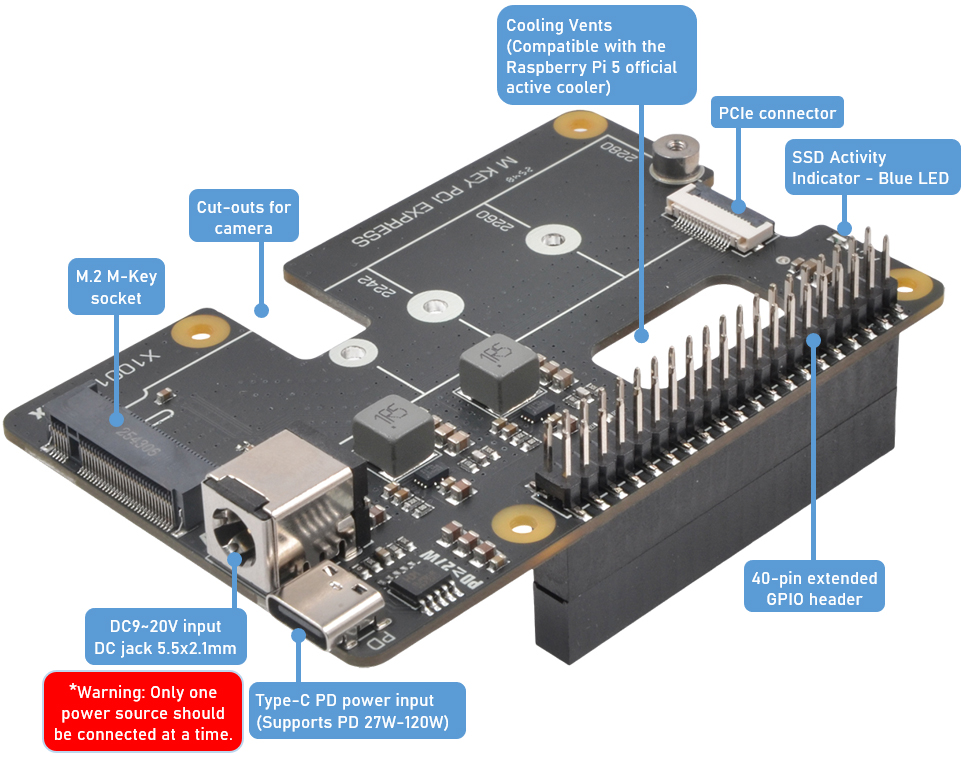

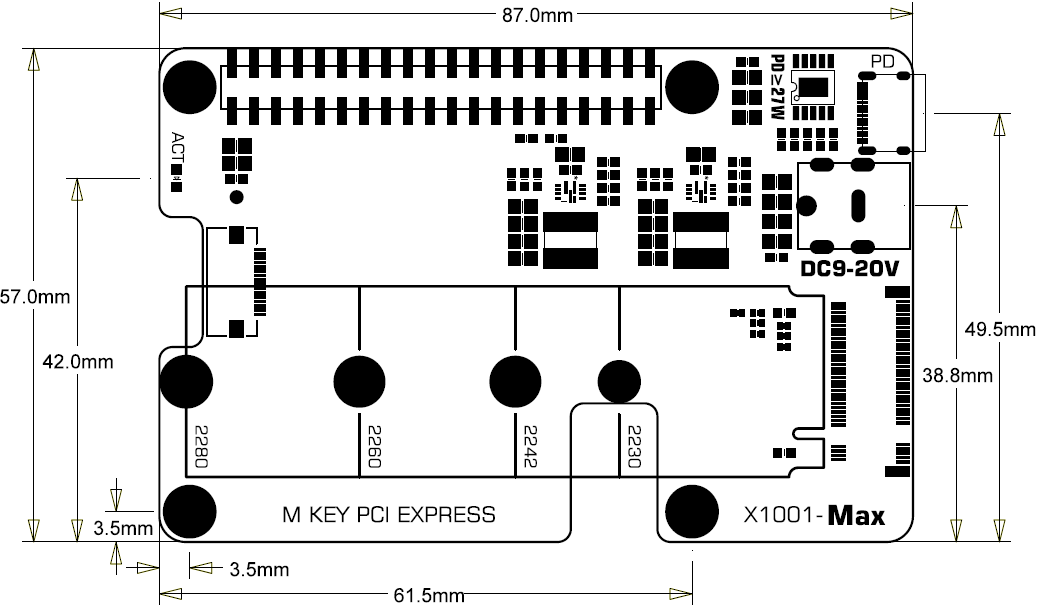

	hardware overview		hardware		software

required hardware

	1		X1001-Max PCIe M.2 HAT		2		Raspberry Pi 5
	3		27W-120W USB-C PD power supply		4		micro-SD card (≥16GB) x1, not required if NVMe boot

M.2 NVMe SSD

- Power the X1001-Max via the USB-C socket or the DC jack.

- Do not connect both. Do not apply power to your Raspberry Pi via the Type-C USB socket.

hardware installation

Step 1

	Insert the M2.5×5mm screw upward through the base mounting hole, then thread the M2.5×20mm female-female spacer onto the screw until finger-tight.

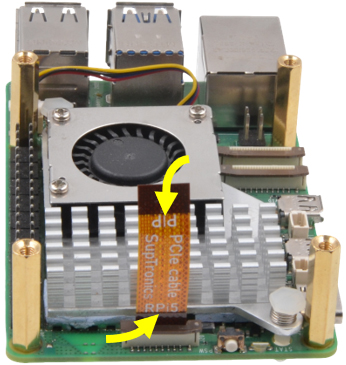

Step 2

	Confirm the FFC cable orientation “PIP” – Must connect to the X1001-Max “RPi5” – Must connect to the Raspberry Pi 5
	Pull out the actuator then plug the FFC cable and push the actuator to hold the cable inside.

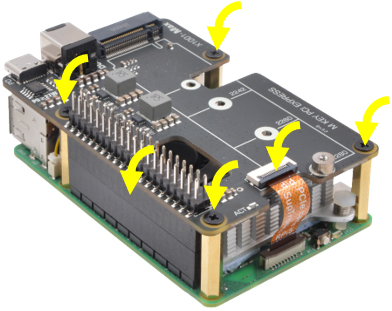

Step 3

	Plugs the X1001-Max directly into the Pi's 40-pin GPIO header.
	Use four M2.5 screws to secure it in place.

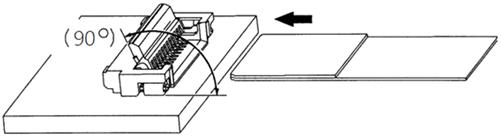

	Open the FPC actuator completely, and insert it in the interior of the insertion entrance surely when you insert FFC.
	After FFC insertion, rotate the actuator down to a full stop, pushing it at the center.

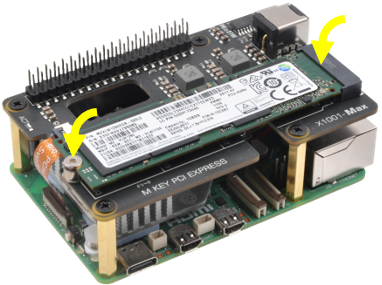

Step 4

	Insert the M.2 SSD into M.2 slot then slide the SSD drive into the M.2 slot at 30 degrees while pushing it gently till it fits into the slot.
	Press the M.2 SSD drive till it sits on the riser screw then lock it in place using the M2 mounting screw.
