X1017 PCIe to 8-port SATA
  Getting Started - hardware


  Home
KVM over IP Switches Raspberry Pi Boards / Kits Network Attached Storage(NAS) SBC Power Supplies
  Be Our Distributor      Custom Products      OEM/ODM      What We Do      Contact


       hardware overview   hardware   software

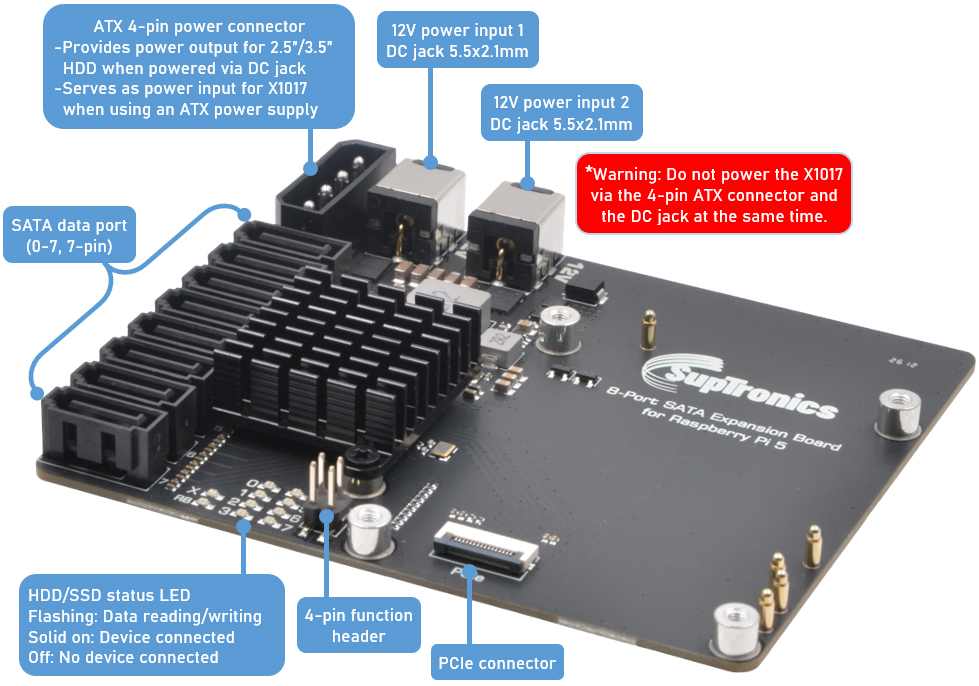

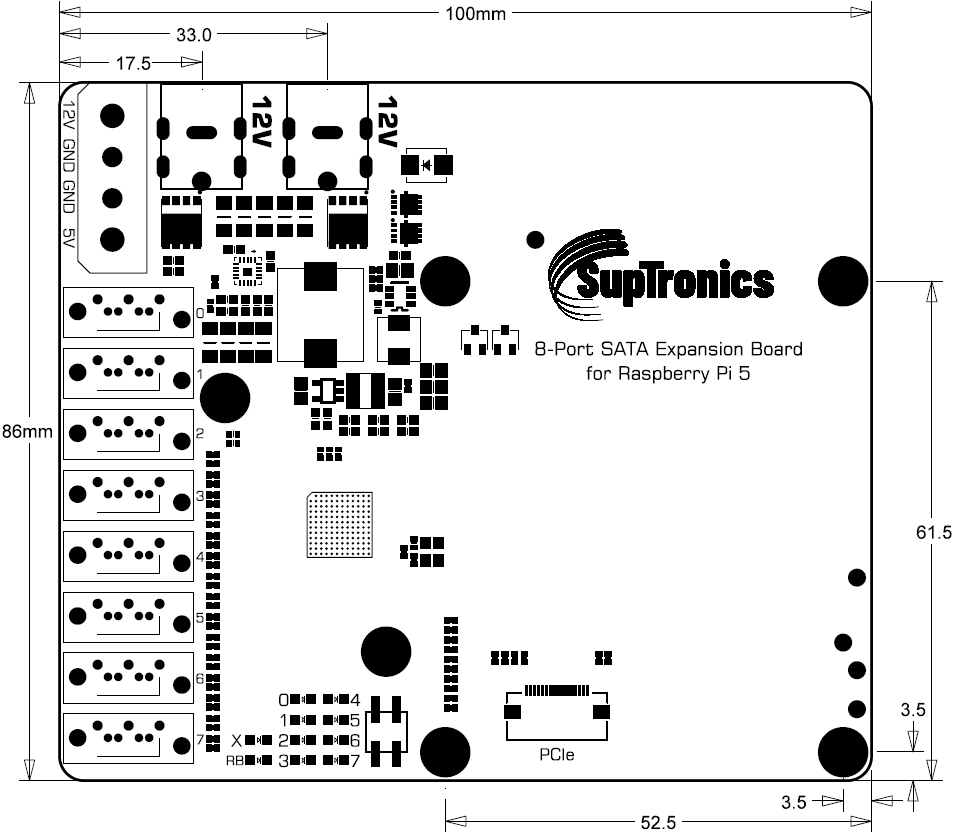

       hardware introduction

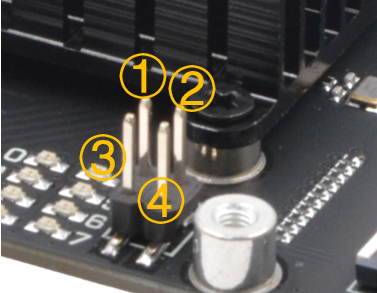

4-pin function header


  • Pin1: For external momentary power swtich


  • Pin2: Fan PWM – Connecting to Raspberry Pi 5 Fan


  • Pin3: Ground

  • Pin4: 12V power output
Recommended power supply (Warning: Only one power source should be connected at a time.)

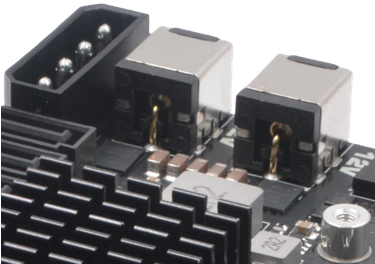

Recommended power supply via DC jack

  • 8 x SATA 2.5" HDD/SSD : 12V 10A adapter x1


  • 4 x SATA 3.5" HDD : 12V 10A adapter x1


  • 8 x SATA 3.5" HDD : 12V 10A adapter x2

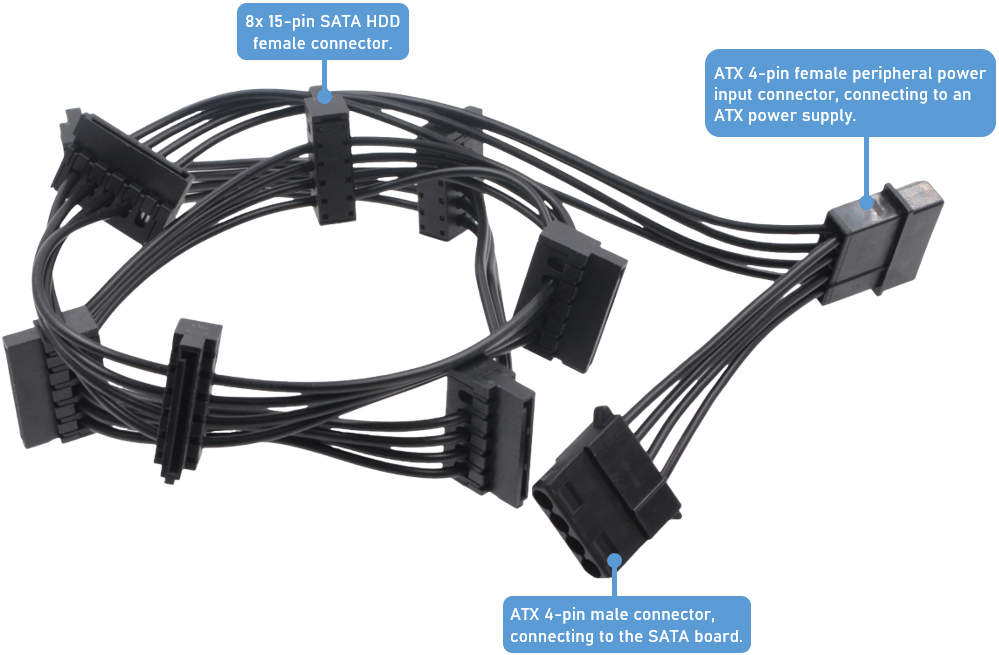

Recommended power supply via ATX 4-pin connector: 12V 20A


       required hardware

   1

X1017 8-port SATA expansion board

    2

Raspberry Pi 5


  3   Power adapter 12V 10A or ATX power supply   4   micro-SD card (≥16GB) x1
  5    2.5"/3.5" SATA HDD/SSD



* The X1017 powers the Raspberry Pi 5 via pogo pins. Do not power the Raspberry Pi 5 through its USB-C port.

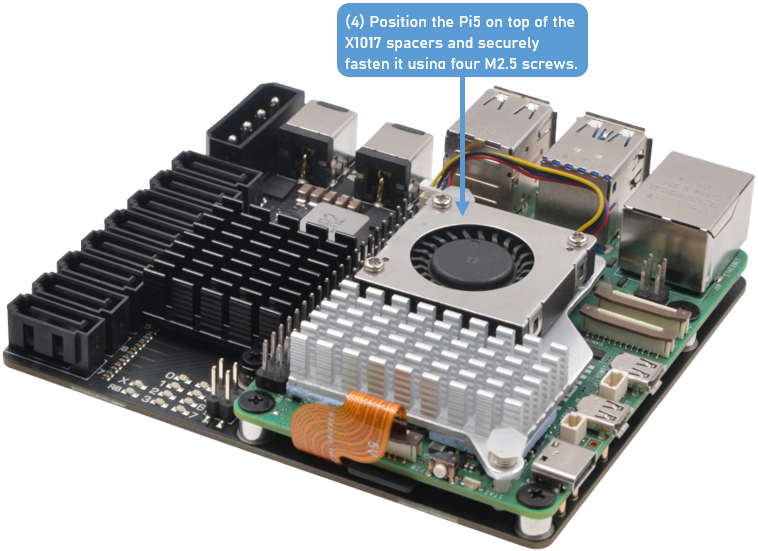

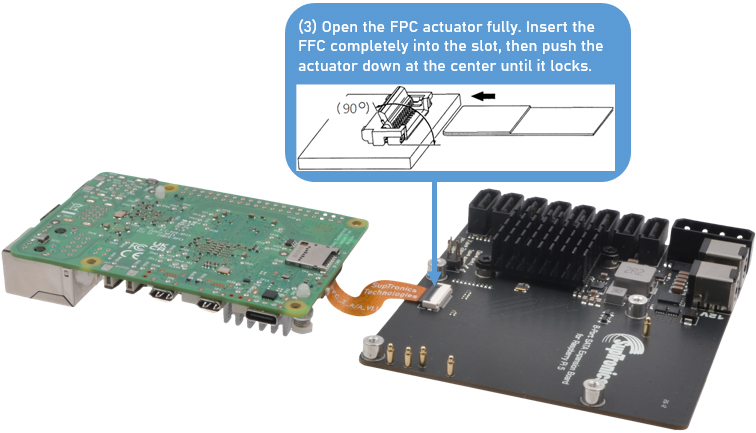

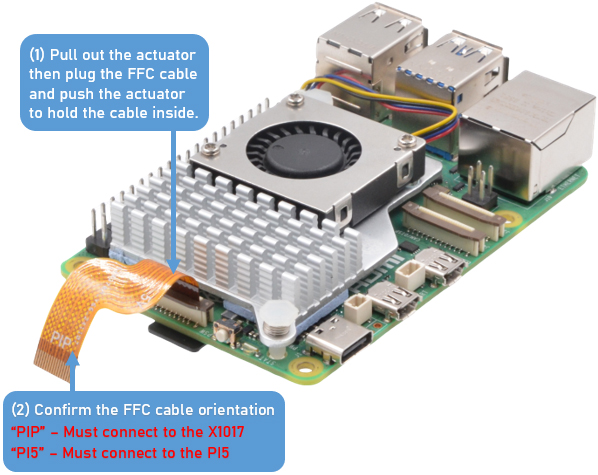

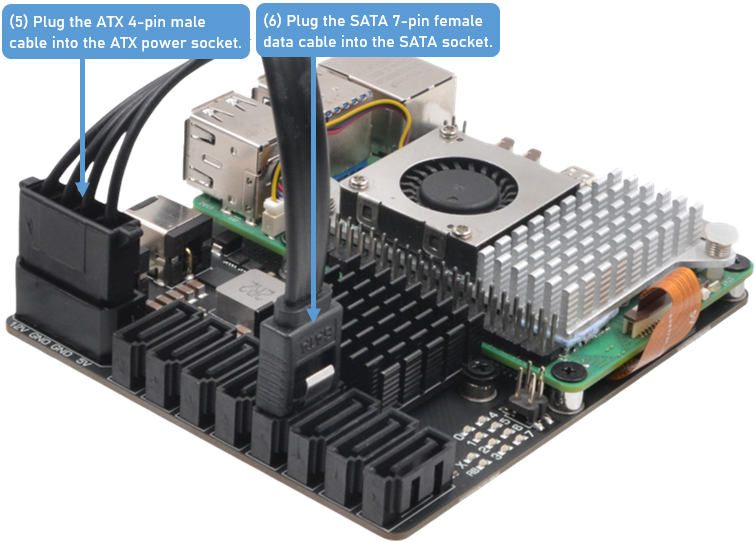

       hardware installation
