X1509 8-port SATA IO board
  Getting Started - hardware


  Home
KVM over IP Switches Raspberry Pi Boards / Kits Network Attached Storage(NAS) SBC Power Supplies
  Be Our Distributor      Custom Products      OEM/ODM      What We Do      Contact


       hardware overview   hardware   software











       hardware introduction

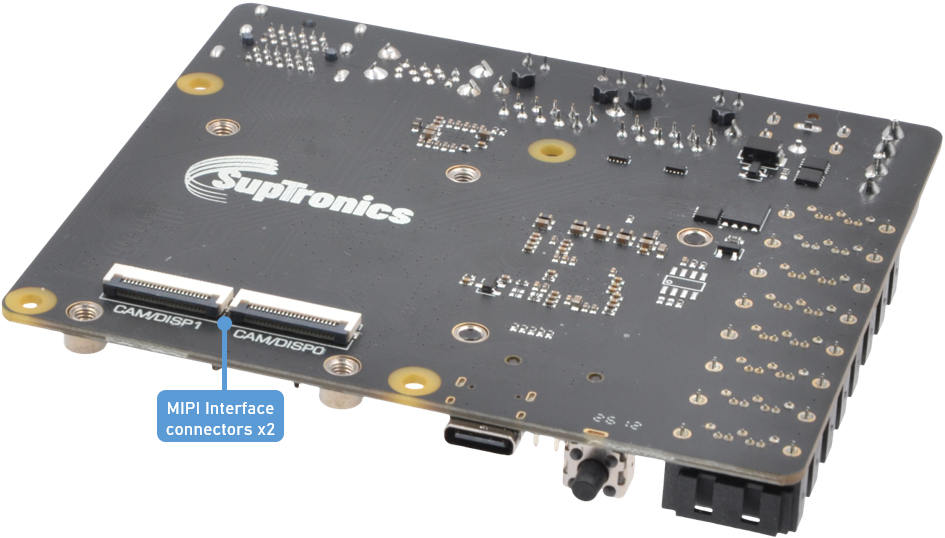

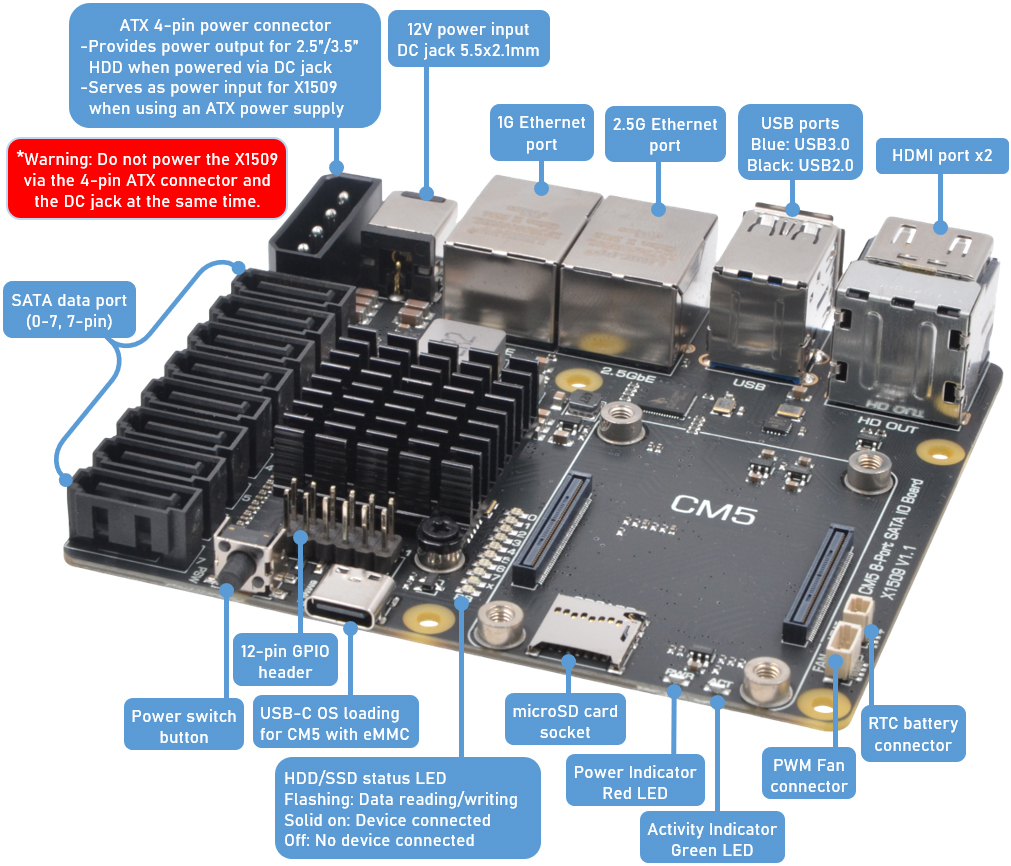

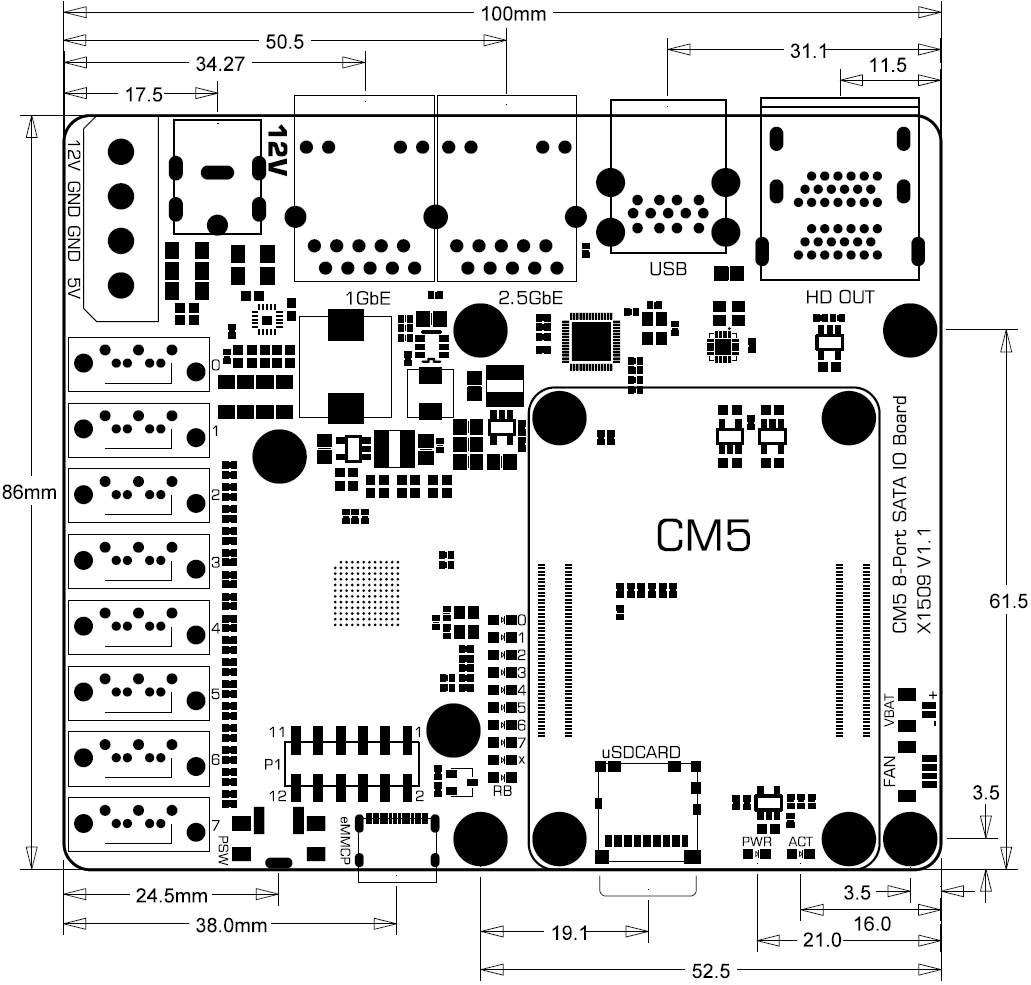

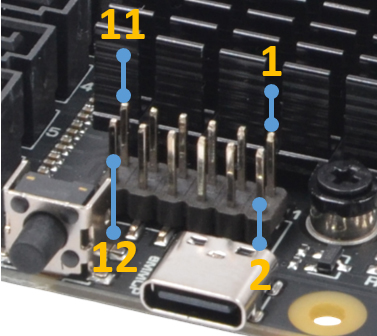

12-pin GPIO header


  • Pin1: GPIO2 (I2C SDA)



  • Pin2: 3.3V power output


  • Pin3: GPIO3 (I2C SCL)



  • Pin4: Ground


  • Pin5: GPIO12Ground

  • Pin6: 5.0V power output

  • Pin7: GPIO13

  • Pin8: Ground

  • Pin9: Fan PWM

  • Pin10: 12V power output

  • Pin11: Momentary power swtich

  • Pin12: Ground




Recommended power supply (Warning: Only one power source should be connected at a time.)

Recommended power supply via DC jack

  • 8 x SATA 2.5" HDD/SSD : 12V 10A adapter


  • 4 x SATA 3.5" HDD : 12V 10A adapter

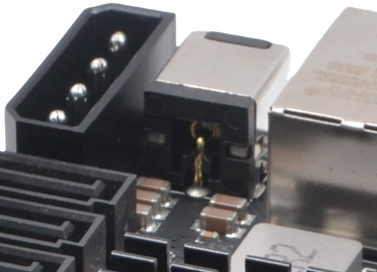

Recommended power supply via ATX 4-pin connector: 12V 20A


  • For setups requiring more than 5 SATA 3.5" HDDs



       required hardware

   1

X1509 CM5 8-port SATA IO board

    2

Raspberry Pi CM5


  3   Power adapter 12V 10A or ATX power supply   4   micro-SD card (≥16GB) x1 (not equired if eMMC version)
  5    2.5"/3.5" SATA HDD/SSD   6   Raspberry Pi CM5 cooler


       hardware installation


Installing the Raspberry Pi Compute Module 5
Step 1 Protecting from ESD


Grounding protects the components from the static electricity that can be naturally present (electrostatic discharge, ESD).



  • Notice: Risk of damage to the equipment due to electrostatic discharge. Always: Touch the working surface before touching electronics.


  • Ideally: Use ESD protective equipment, such as ESD table mats and grounding cords.

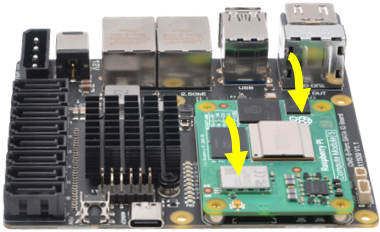

Step 2 Aligh the IO board and CM5


  • Place the board in front of you, the connectors facing to the top.


  • Orient the CM5 as indicated by the arrow.


  • Use the outline of the chips to help find the correct orientation of the CM5.



  • Carefully place the CM5 without force.


  • The CM5 should fall into place slightly when correctly aligned.

  • Confirm the Compute Module is correctly mated by looking at each corner of the IO Board.
Step 3 Installing the CM5

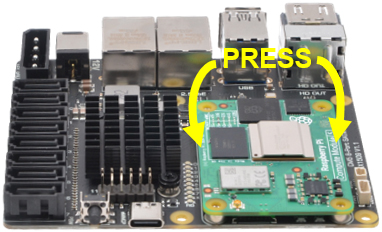

  • Press the CM5 board onto the board-to-board connectors until it clicks into place.



  • Make sure you press on both sides (the two long edges).


  • This requires quite a bit of force. If you don't hear a loud click, it is most likely not fully seated.

  • Do a visual check to make sure the CM5 is installed correctly: it needs to run parallel to the IO board.

  CAUTION!
Do not press on any chipsets, as this may damage your CM5.

Step 4 Use silicone thermal pads for optimal heat dissipation


  • Please remove the protective white paper from the thermal silicone.


  • Place the Cooler onto Compute Module 5.


  • Align the mounting holes, insert four M2.5 × 8 screws (supplied) upwards from beneath the IO Board, and tighten.


Step 5 Installing the heat sink

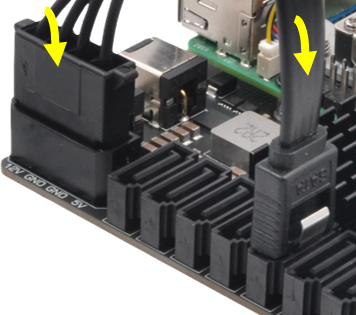

  • Plug the SATA 7-pin female data cable into the SATA socket.


  • Plug the ATX 4-pin male cable into the ATX power socket.
