ü |

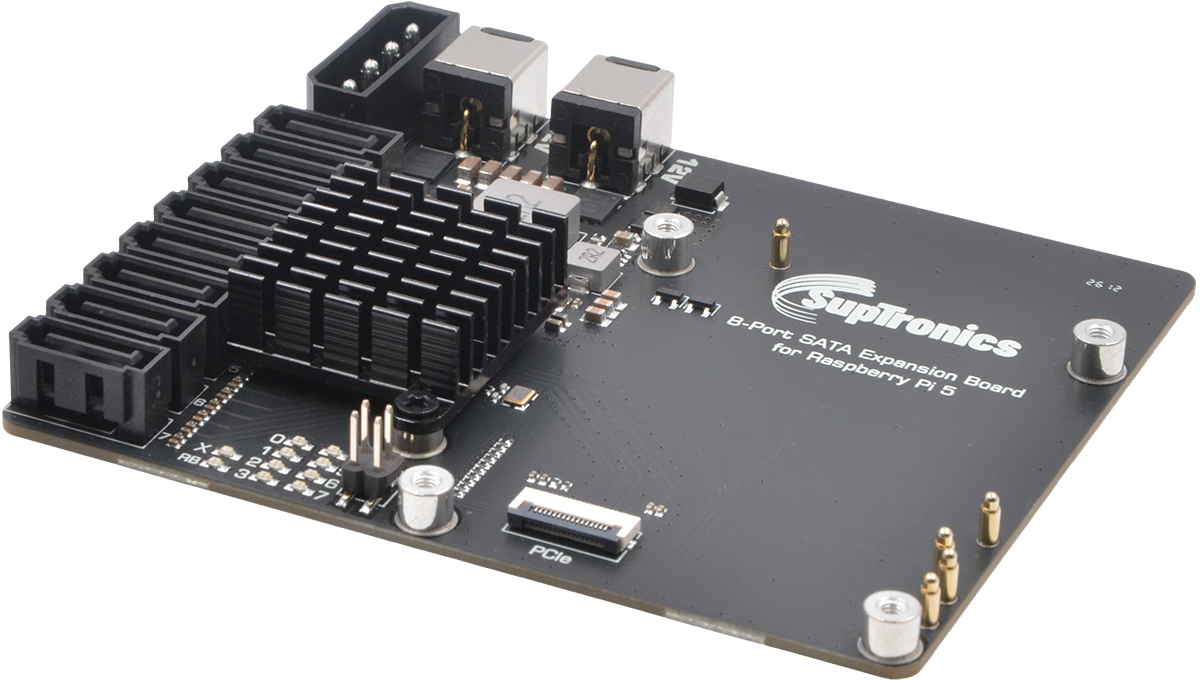

8 x SATA 3.0 Ports -
Connect up to eight SATA devices
simultaneously to your Raspberry Pi 5 |
|
|
ü |
High-Capacity Storage - Supports up to
176TB
total capacity (22TB per drive). |
|
|
ü |
Wide Drive Compatibility -
Works with SATA 6G, 3G, and 1.5G hard drives |
|
|
ü |
Multi-Speed Support -
Supports communication speeds of 5.0, 3.0,
and 1.5 Gbit/s |
|
|
ü |
Plug & Play - Simple setup
with LED indicators for drive status |
|
|
ü |

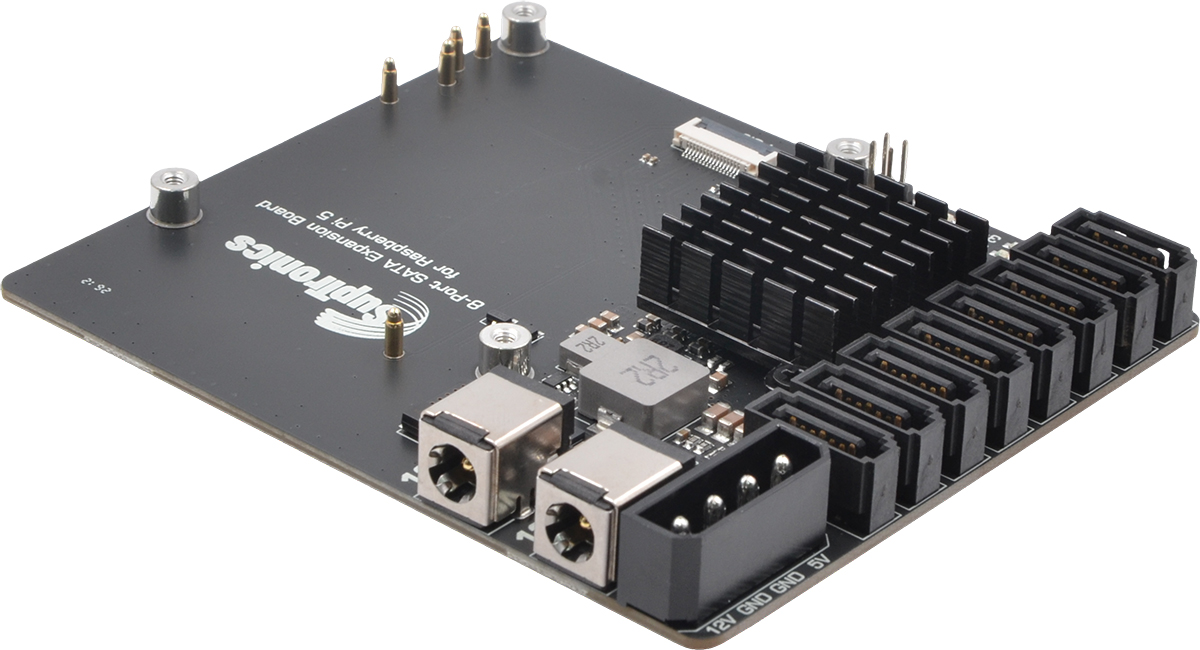

Flexible Power Input -
Accepts 12V power via DC jack or ATX 4-pin
connector |
|
|
ü |
Unified Power Delivery -
High-efficiency DC/DC converter delivers up
to 12A to power both Pi 5 and SATA drives
from a single source |
|
|
ü |
Pogo Pin Power to Pi 5 -
Powers your Raspberry Pi 5 directly via pogo
pins; no separate power supply needed |
|
|
ü |
Automatic Drive Power Cut-off
- Cuts power to SATA devices when Pi 5 shuts
down (DC jack only; not supported with ATX
4-pin) |
|
|
ü |
Splitter Cable Included -
Comes with a power SATA splitter cable to
support up to 8 drives |
|
|
ü |

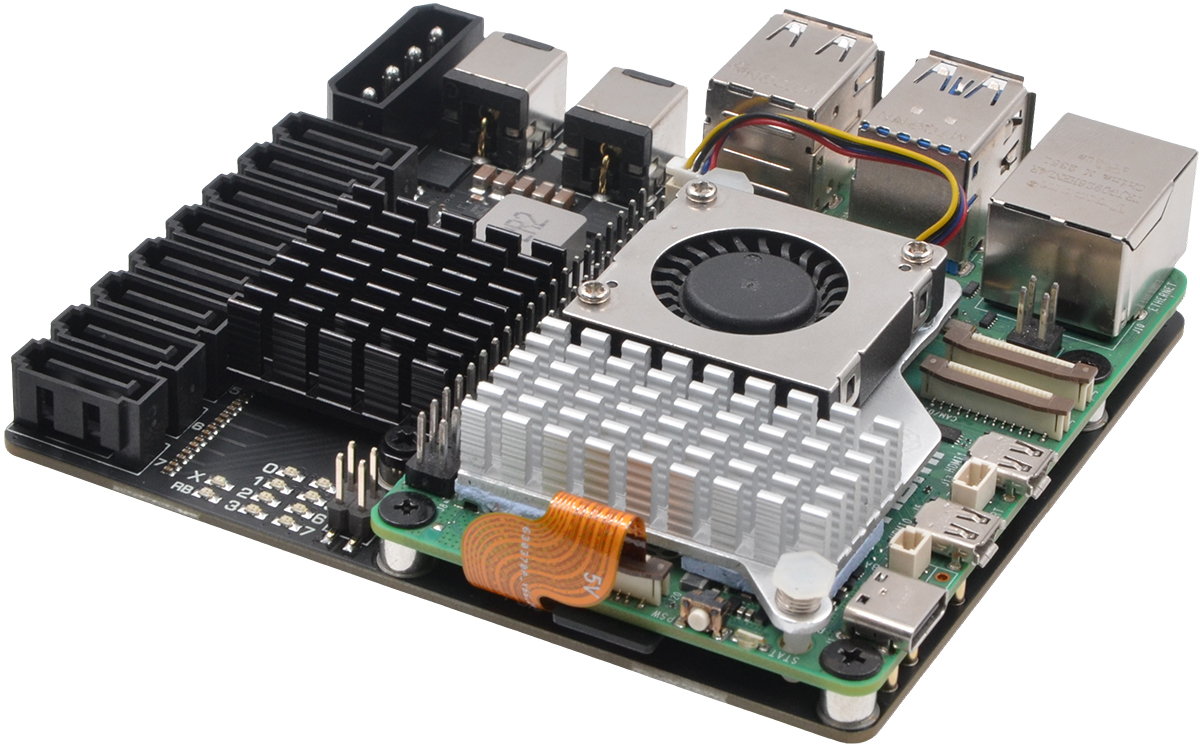

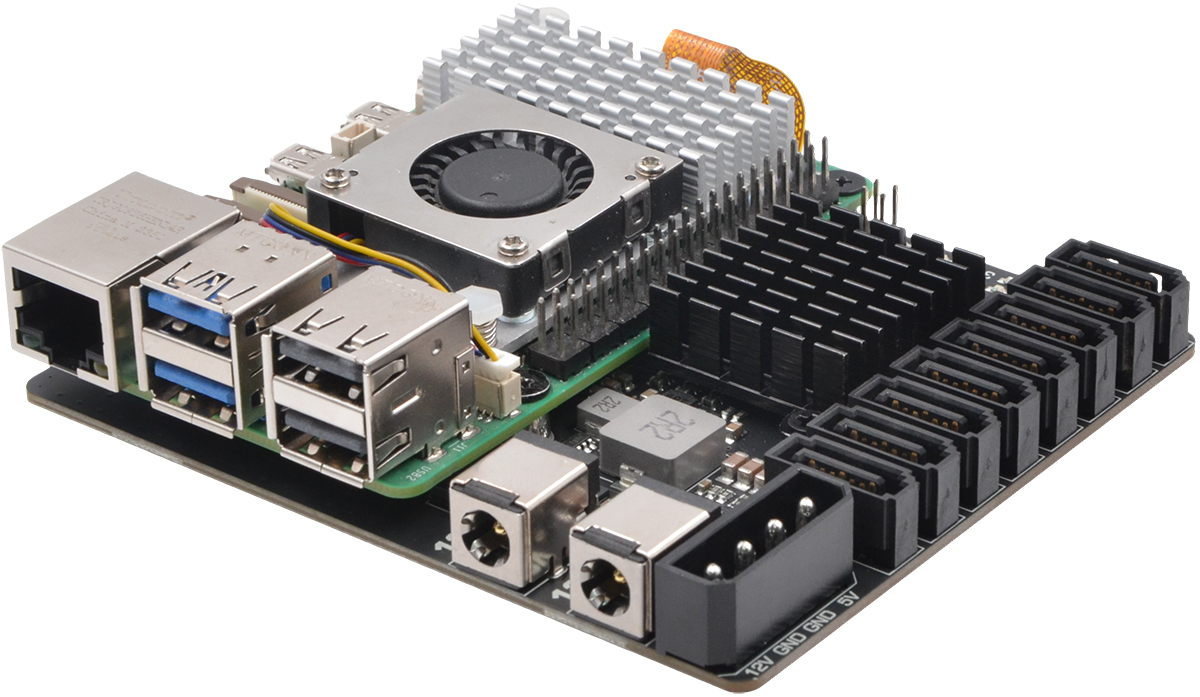

HAT-Friendly Design -
Mounts on the bottom of the Pi 5, allowing
you to use your favorite HATs alongside it |
|
|
ü |
External Power Button Header
- Easy DIY case integration |
|
|
ü |

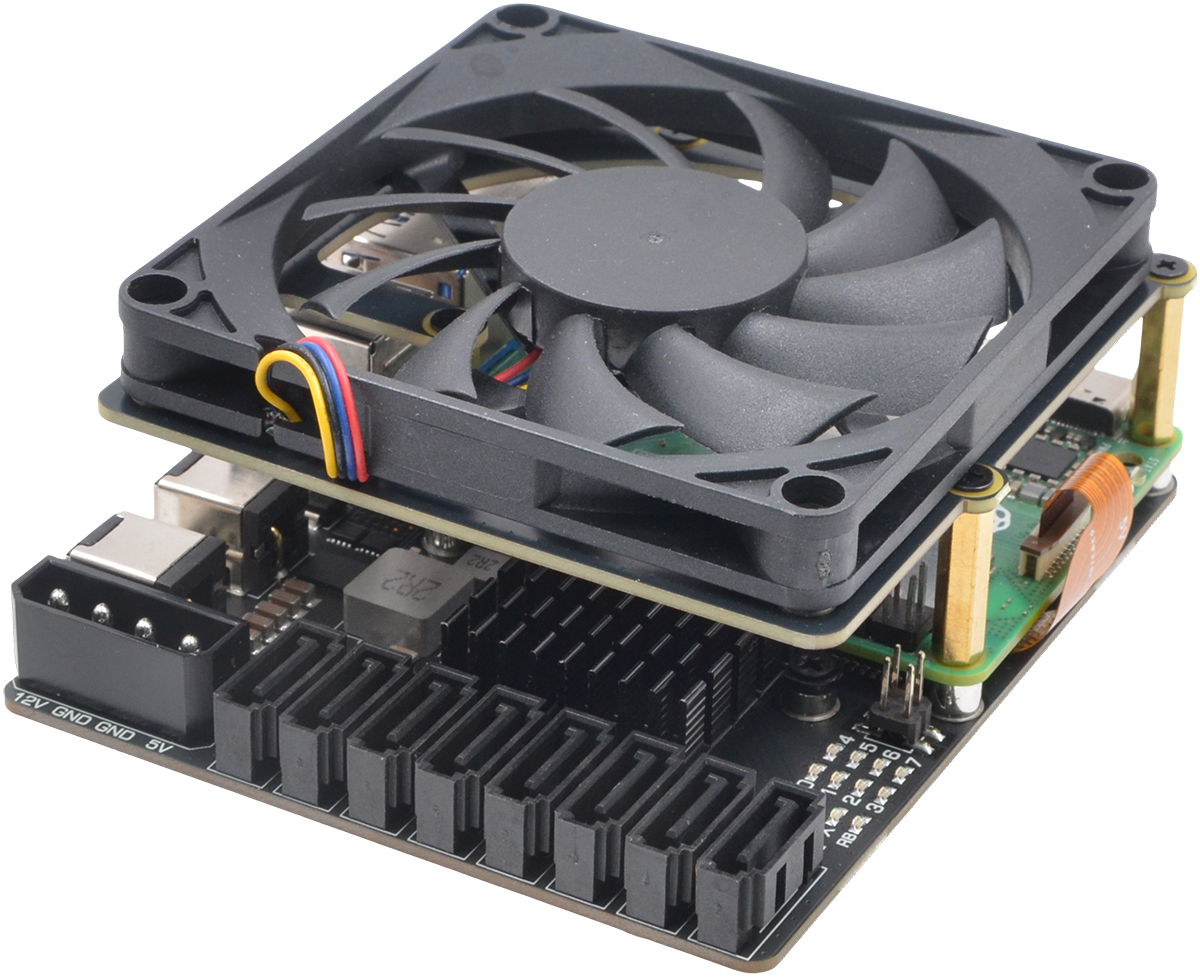

12V PWM Fan Header -
Perfect for your custom cooling setup |
|
|
ü |
Tested and supported operating
systems: Raspberry Pi OS (64-bit),
OpenMediaVault (OMV) |
|
|
ü |
Compatible Accessories:
PA12V10A power adapter,
X15-F10
8010 PWM-controlled fan |
|
| |
|
|
| û |
The X1017 does not support SATA boot with
the current Raspberry Pi5 firmware. |
|
