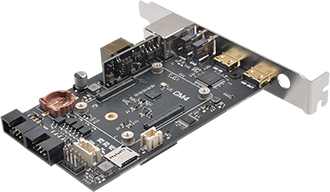

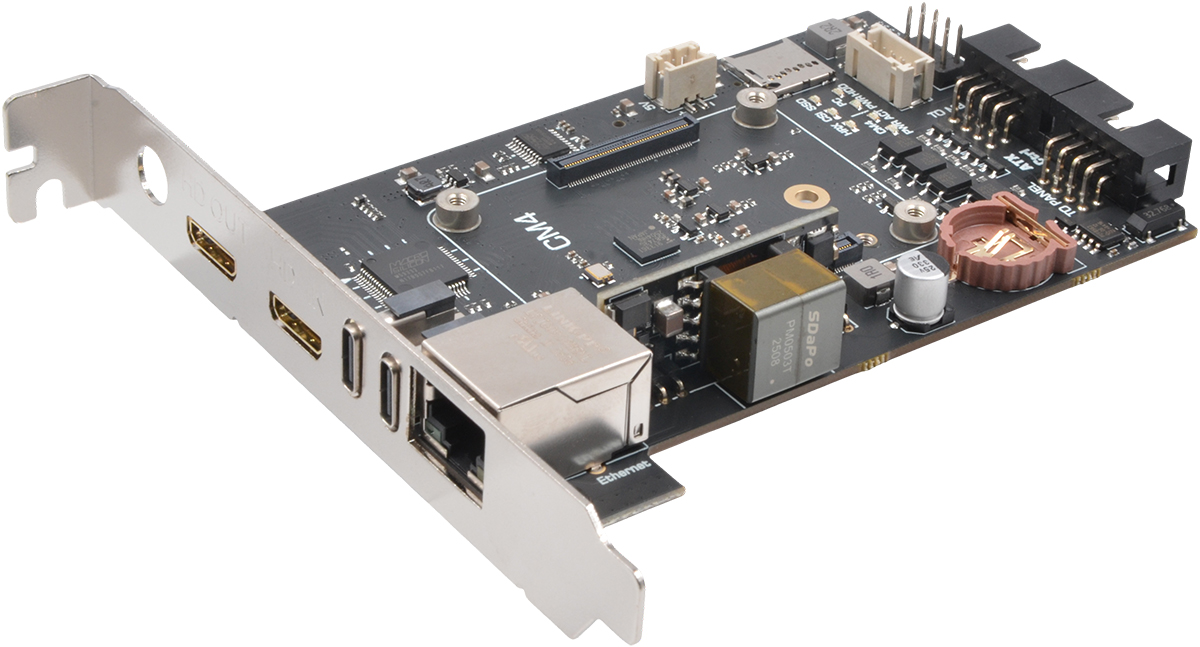

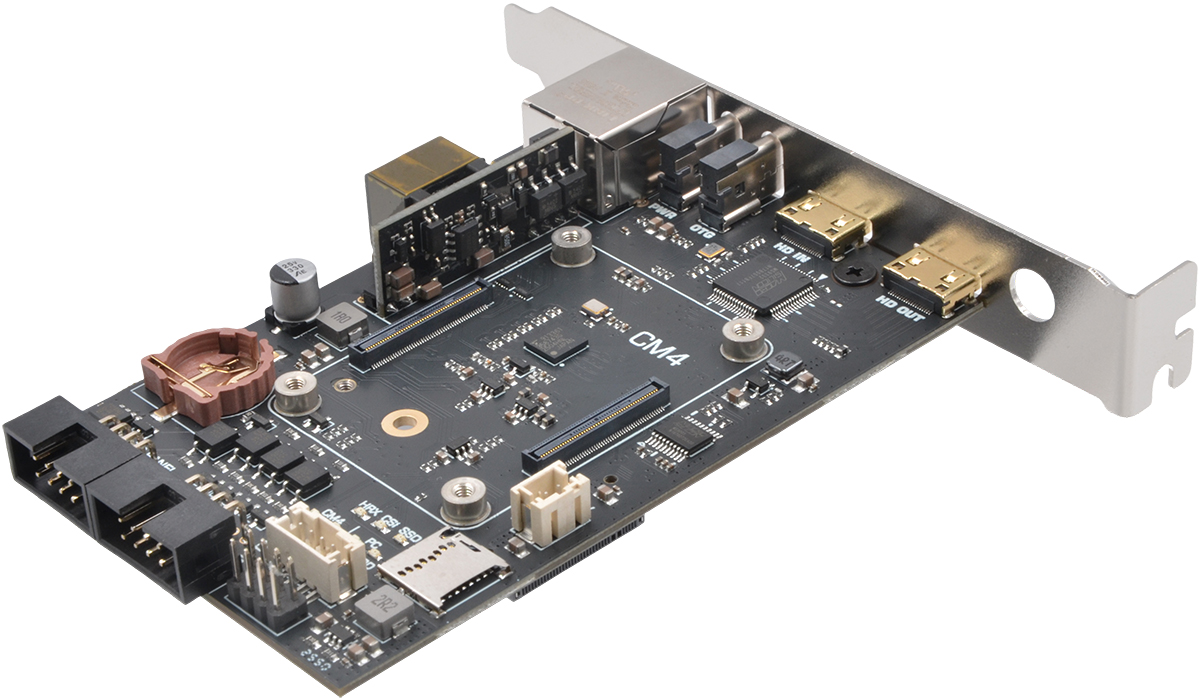

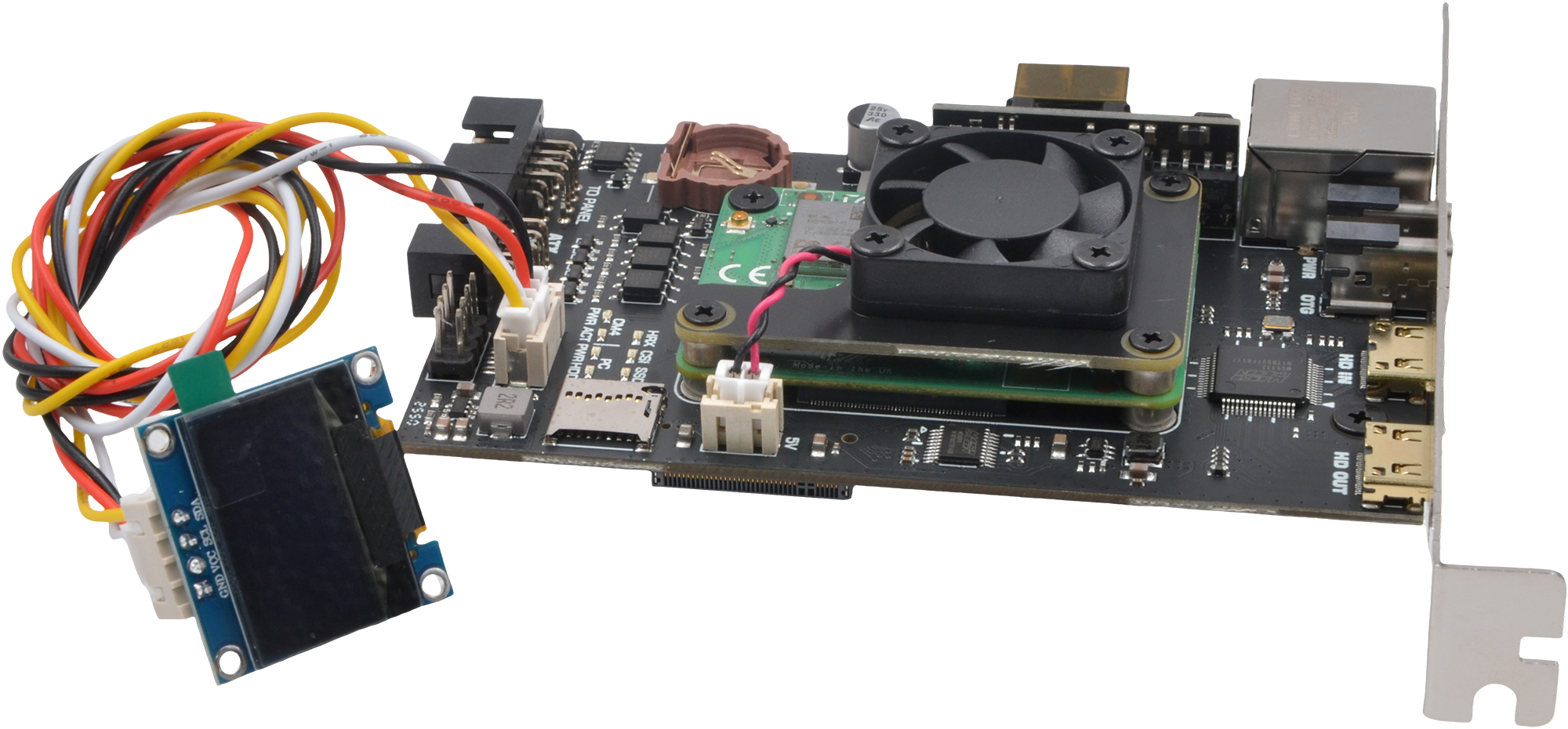

The
X655 is a powerful KVM-over-IP
remote management PCI
card. Built on the Raspberry Pi CM4, it fits
seamlessly into 1U/2U PC, Sun, and Mac servers. You
get secure, BIOS-level access from any web browser,
plus convenient ATX remote
power control to switch, reset, and monitor your
machine.
It also features HDMI pass-through, allowing both
local and remote users to view and control the
system at the same time. With integrated Power over
Ethernet (PoE), the card simplifies setup by
delivering both data and power through a single
cable—no extra adapter needed.
|
|
|
| |
|
|
| |
| |
- Built on the versatile
Raspberry Pi Compute Module 4 platform
- Compatible with CM4 Lite and eMMC models
(16GB/32GB)
- Reliable, BIOS-level remote access
via a web browser from anywhere
- Installs like a standard PCI Express card
into desktop and tower systems (PC, Mac, Linux, Sun)
- Full HD (1080p @ 60Hz) video capture
via dedicated TC358743 chip with HDMI audio
support
- HDMI pass-through enables
simultaneous local and remote monitoring
- Full OTG emulation for remote
keyboard, mouse, and virtual mass storage drive
- Hardware Real-Time Clock (RTC)
with battery backup ensures reliable timekeeping
- Gigabit Ethernet with data
transfer speeds up to 1000 Mbps
- Power over Ethernet (PoE) support
for single-cable data and power delivery
- USB-C power input provides
flexible power options

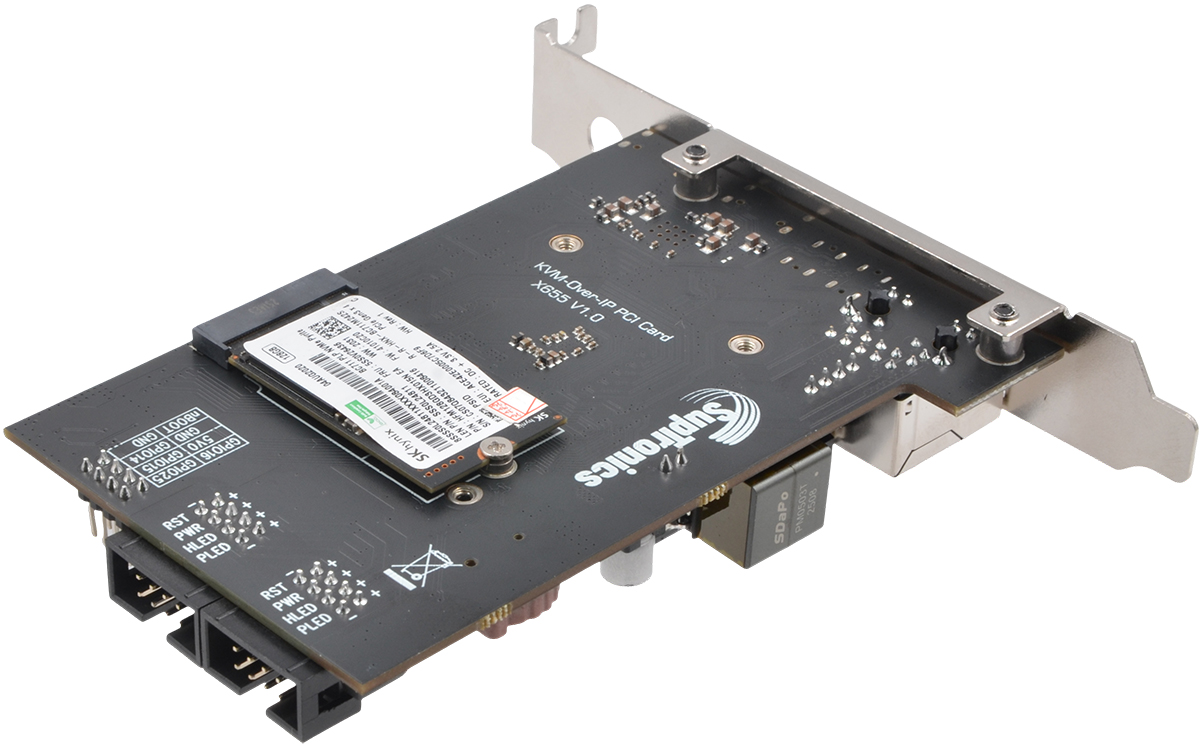

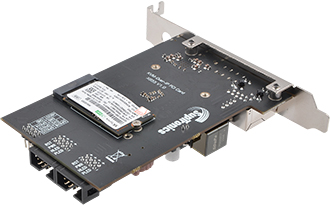

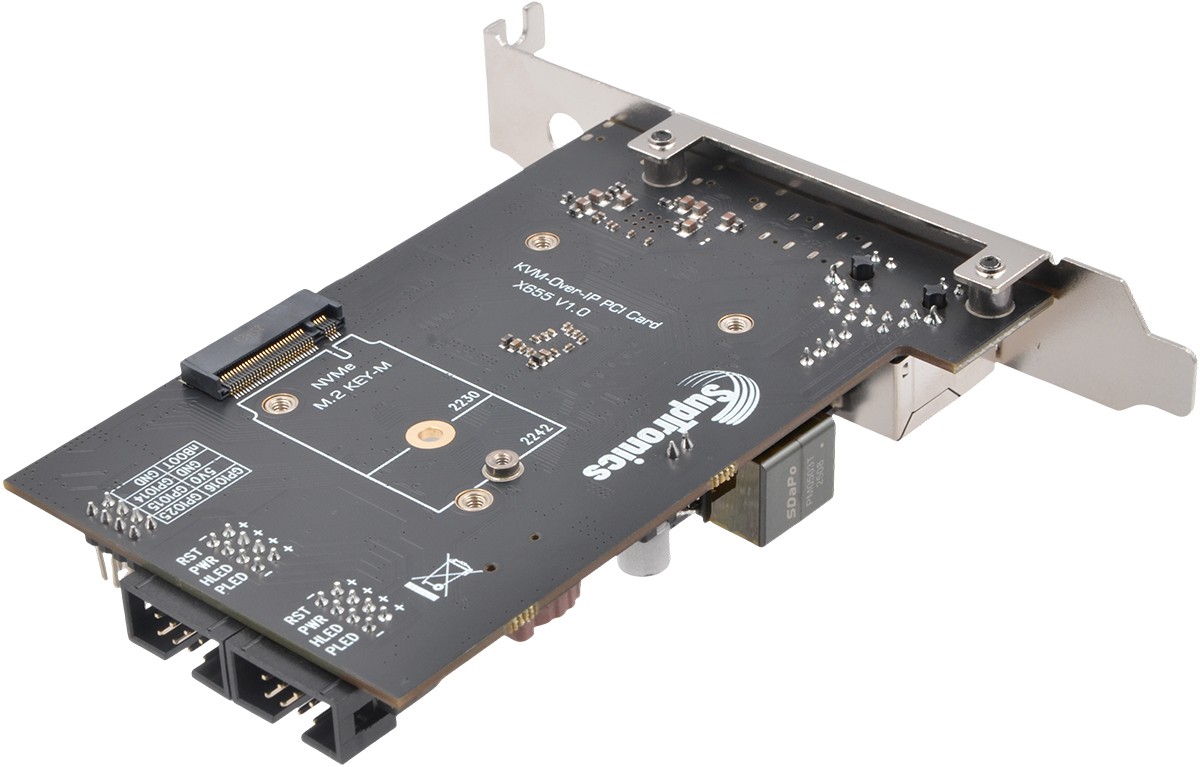

- Multiple boot options: Micro-SD, CM4 eMMC,
and M.2 NVMe SSD
- Remote ATX control for powering
the host machine on/off and resetting

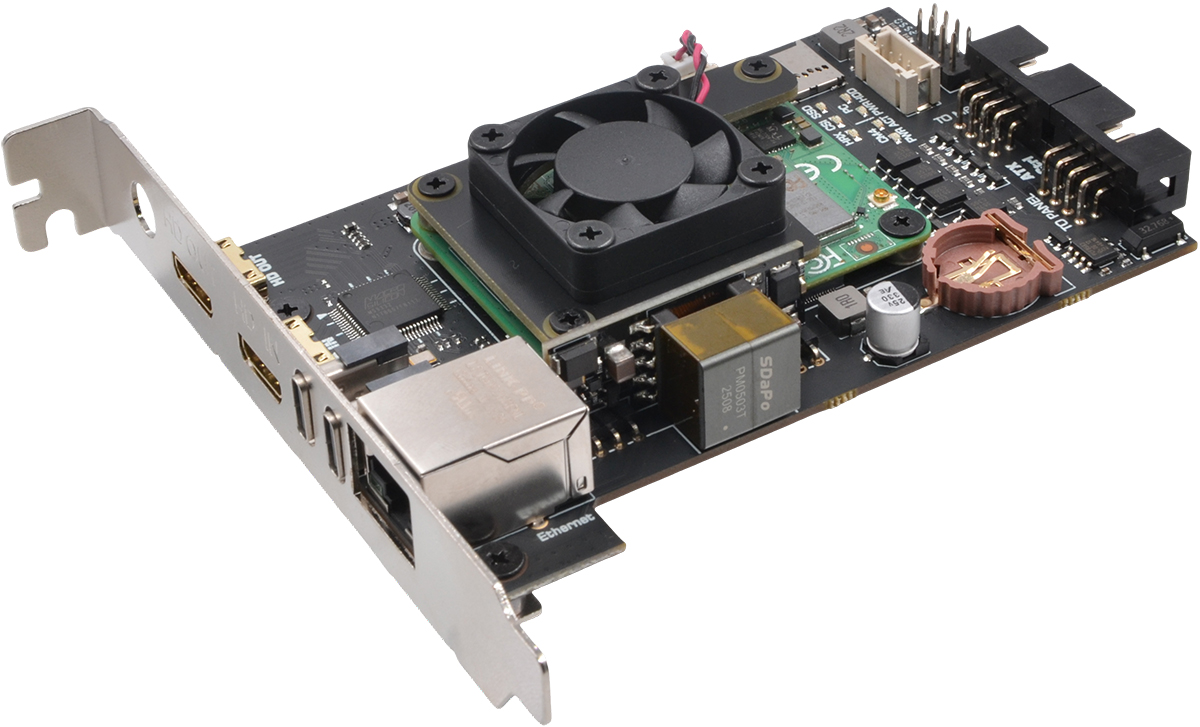

- Integrated cooling fan maintains
optimal Raspberry Pi CPU temperature
- Compatible with PC, Mac, Linux, and Sun
systems for universal deployment
|
|
|
|
|
|
| |
| |
|
Power input |
: |
5Vdc +/-5% 3A via
USB-C |
|
|
: |
5Vdc +/-5% 2.4A via
POE (IEEE 802.3af) |
|
|
|
(Warning: Only
one power source should be connected at a
time.) |
|
HDMI input resolutions |
: |
Max. 1920 x 1080P 60Hz |
|
Ports & Connectors |
: |
USB-C power input socket x1 |
|
|
: |
USB-C OTG data socket x1 |
|
|
: |
miniHDMI input
connector x1 |
|
|
: |
miniHDMI pass-through
connector x1 |
|
|
: |
10/100/1000M RJ45 Ethernet
jack x1 |
|
|
: |
ATX control box header
2.54pitch 2x8pin x2 |
|
|
: |
8-pin function
header x1 |
|
PCB Size |
: |
126.5mm x 120.5mm x
17mm |
|
|
| |
|
|
| |
| |
- X655 IPKVM PCI card with standard-profile
bracket x1 - CM4 not included |
|
| |

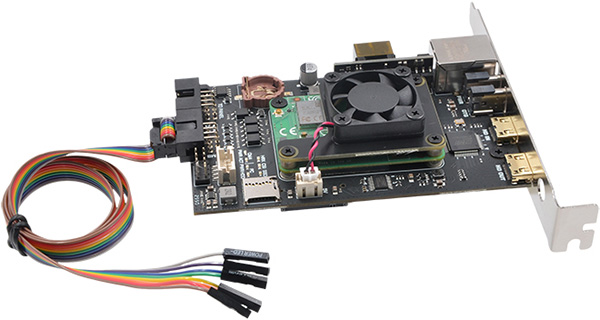

- ATX control rainbow cable 60cm x1 |
|
| |
- CPU cooling fan x1 |
|
| |
- 0.96" OLED display x1 |
|
| |
- PH2.0-4P to XH2.54-4P connection wire for 0.96"
OLED display 40cm x1 |
|
| |
- Mini HDMI to HDMI (Type A) cable 0.5M x1 |
|
| |
- Mini HDMI to HDMI (Type A) cable 1.5M x1 |
|
| |
- USB-C to USB-A OTG data cable 0.5M x1 |
|
| |
- Screw
pack x1 |
|
|
| |
|
|
| |
| |
|
- |
The X655 Kits do not come with a CM4, so you
will need to provide your own. This includes
CM4 Lite and eMMC models (16GB/32GB). |
|
- |
Don't power the X651 via USB Type-C socket
if powering over Ethernet. |
|
|
| |
|
|
